System Power Signal Extension Splitter Cable Male Female Waterproof DC Connector Fast Connecting

System Power Signal Extension Splitter Cable Male Female Waterproof DC Connector Fast Connecting

Model: Y splitter
Contacts: 4pin/2pin
Rated Voltage: 250V
Rated Current: 10A
Connector Type: male to female
Plastic Material: Nylon
Cable Material: PVC/rubber
Conductor Material: gold plated brass
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

System Power Signal Extension Splitter Cable Male Female Waterproof DC Connector Fast Connecting

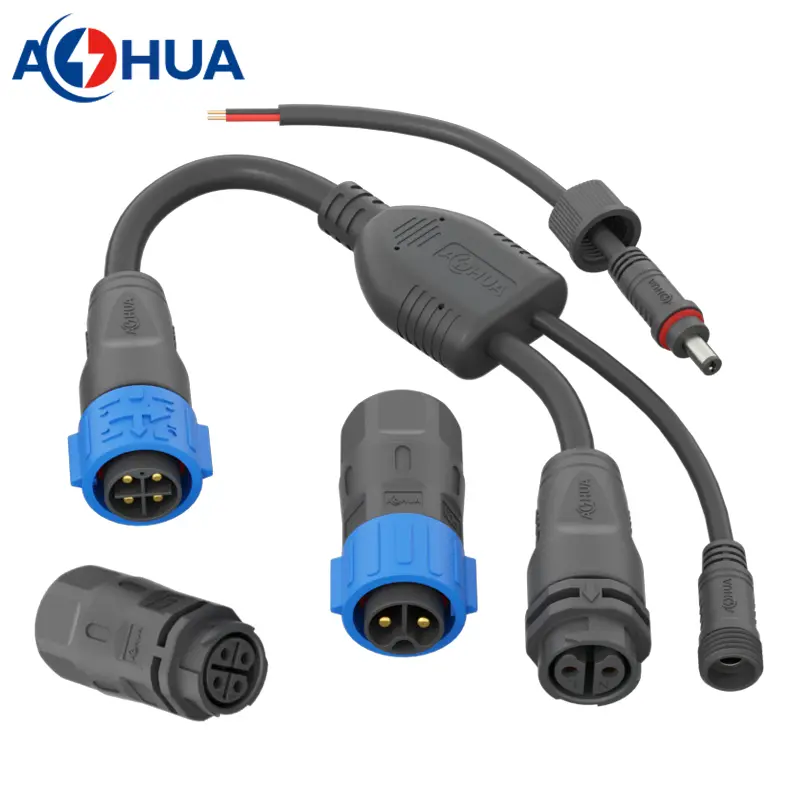

Customized Y splitter cable solution with waterproof DC connector / locking connector. This is the cable solution carrying with splitter and male female connector, which is favorable waterproof grade. The input cable carry 4pin self locking type male female connector K25, one of branch cable is waterproof DC 5.5*2.1mm connector, and the other one is 2pin male to female self locking connector K25.

Model: K25

contacts: 4pin and 2pin
plastic material: PA66
conductor material: gold plated brass
cable material: PVC

Model: M14

contacts: 2pin
connector type: DC jack
plastic material: PVC
conductor material: copper
cable material: PVC

Y splitter solution

input cable: (2*14AWG+2*18AWG) 2464 PVC multiple cores.

branch cable: 2*14AWG, 2*18AWG, UL 2464 PVC cable.

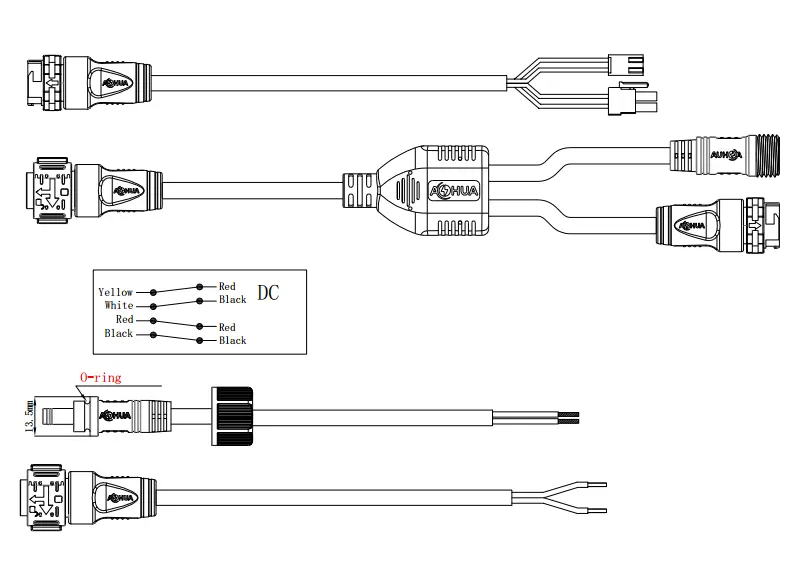

This is customized solution that we made for a USA client. This mating cable is female cable with JST terminal. Customization is our core business. So you can provide the rough drawing, we will get back to you with CAD drawing for your approval. The details we want to know is:

sketch or rough drawing;
contacts pins;
working ampere;
wire gauge and cable length;
connection;
color or material
special customized detail.

In AOHUA, we can customize most of cable solutions for low voltage application. So please try to know about us, and believe and choose us. We will provide sample for testing and make high quality product for you.

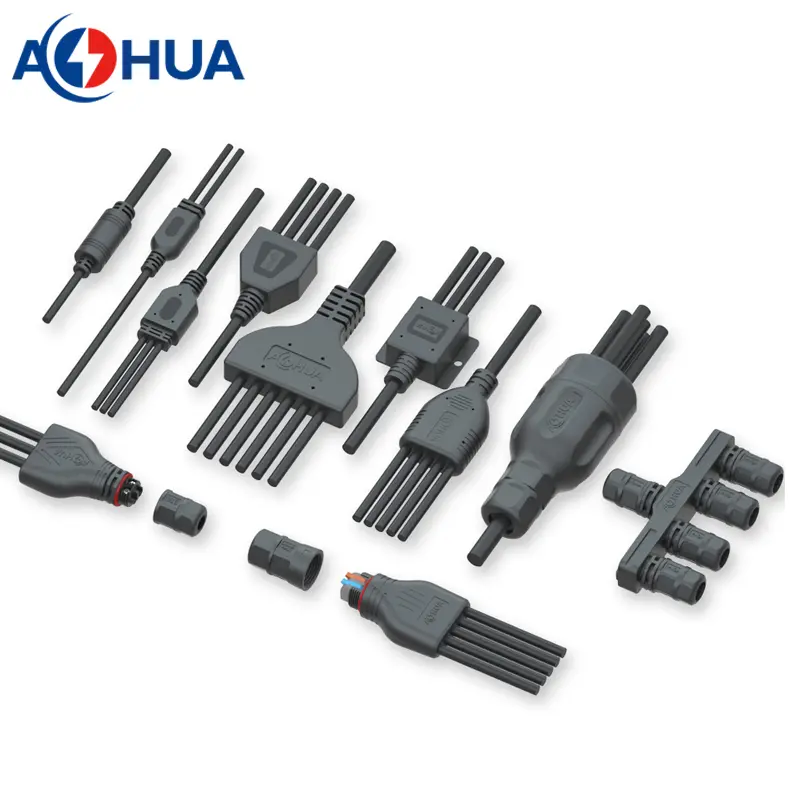

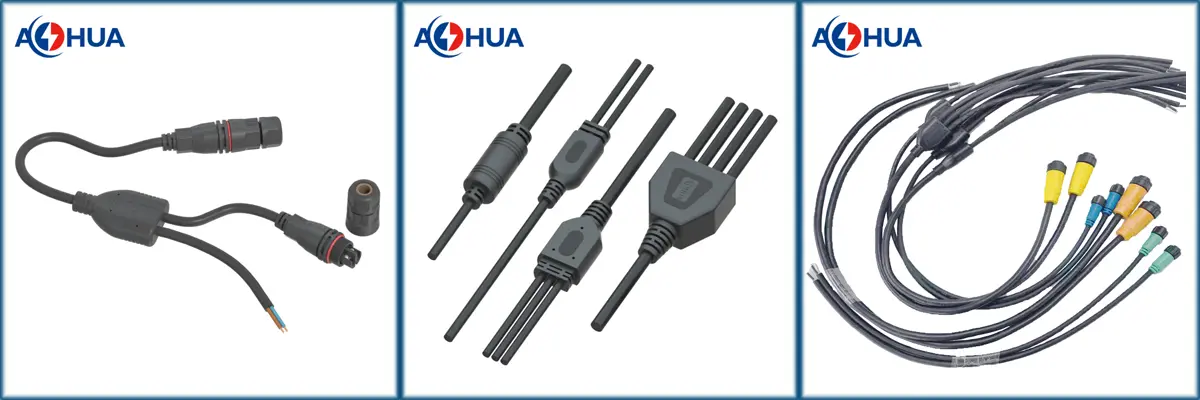

There are many splittes for choosing from in AOHUA, and also have many waterproof connectors for your application.

specifications:

contacts: 2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 2+2pin, 2+3pin, 2+4pin, 2+5pin, 2+8pin, etc.
rated voltage: 300V;
rated current: 35A;
wire gauge: ≤6.0mm²;
cable OD: 3-15mm

For customized solution, we also have dust caps or terminals processing.
