Temperature Probe Sensor 4A 22AWG Male Female Extension Cable Waterproof IP65 DC Connector Solution
Temperature Probe Sensor 4A 22AWG Male Female Extension Cable Waterproof IP65 DC Connector Solution
Model: M13
Connector Type: DC
Rated Voltage: 60V
Rated Current: 5A
Wire: 18/20/22/24AWG
Plastic Material: PVC
Cable Material: PVC/ TPU/PUR
Cable Length: customized as requirement
DC Metal Diameter: 5.5*2.1mm or 5.5*2.5mm
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

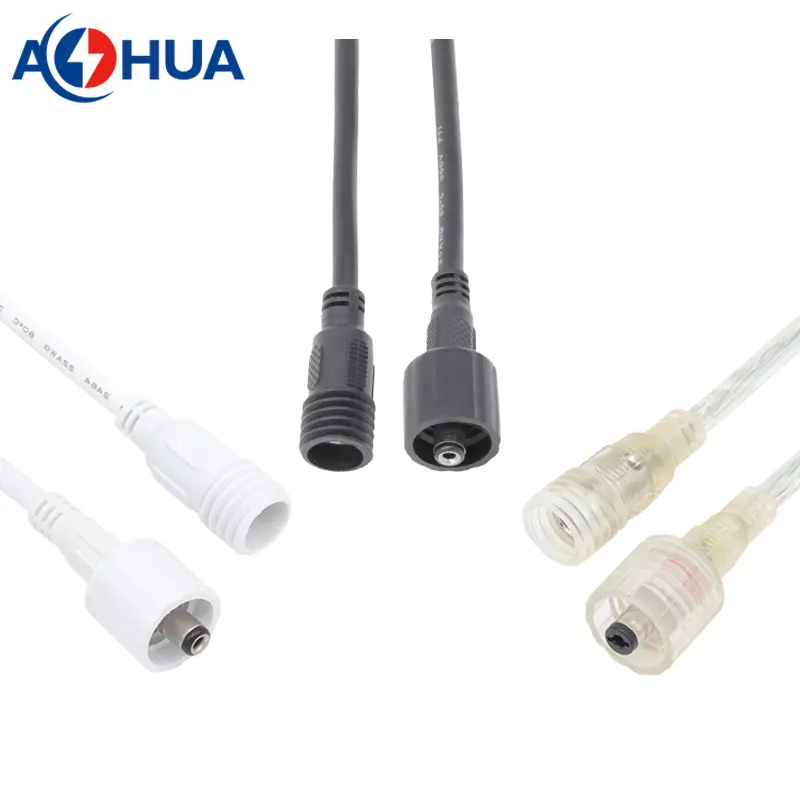

Temperature Probe Sensor 4A 22AWG Male Female Extension Cable Waterproof IP65 DC Connector Solution
A socket is a cylindrical receptable that provides direct current (DC)at 60V to a device plugged into it.

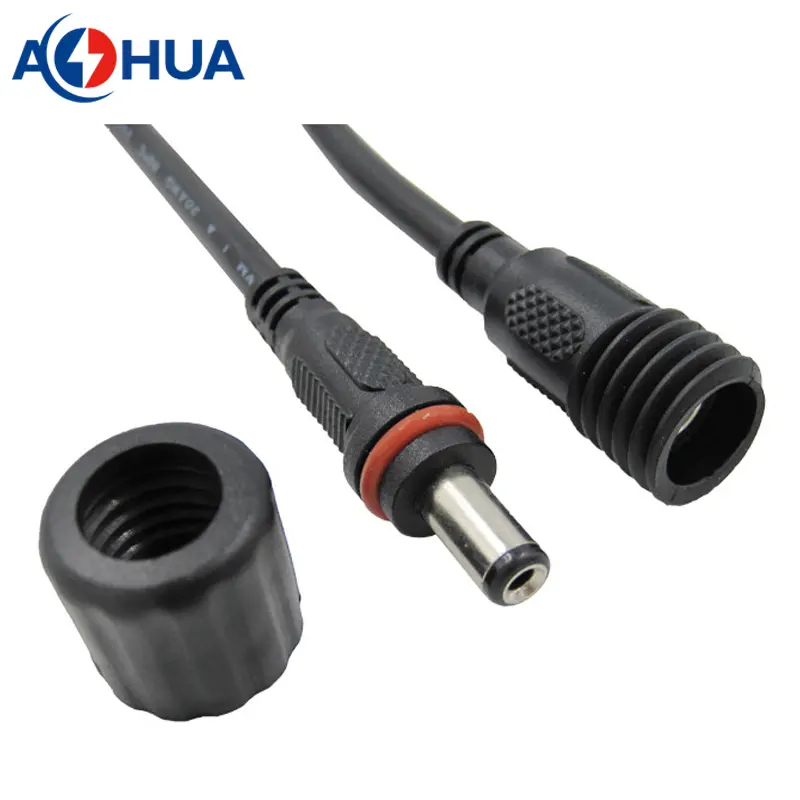

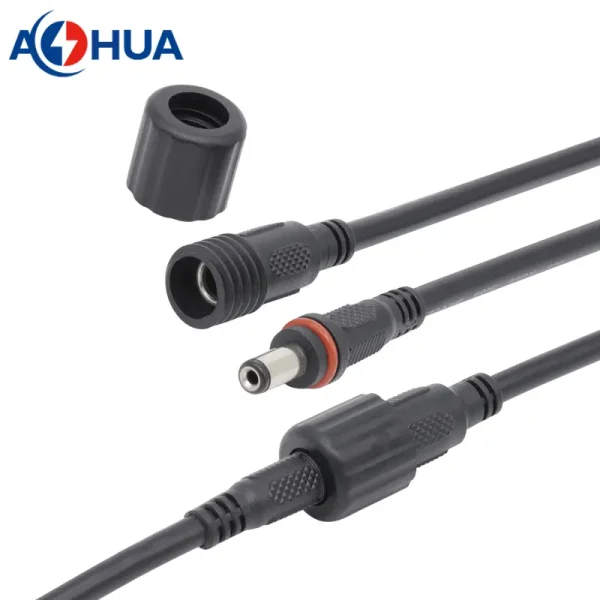

This DC connector is molded with cable directly.
|
This is PVC material DC connector with IP65 waterproof grade. The plastic and cable would be PVC material. The metal is DC jacket with diameter 5.5*2.1mm / 5.5*2.5mm.
This DC connectors are widely application to power wire connection of LED lighting, solar lighting, outdoor lighting, panel lighting, various of sensors such as temperature, humidity, presure, medical data, CCTV cameras security, led strip lighting, baby monitor, and so on.
|
 |
 |

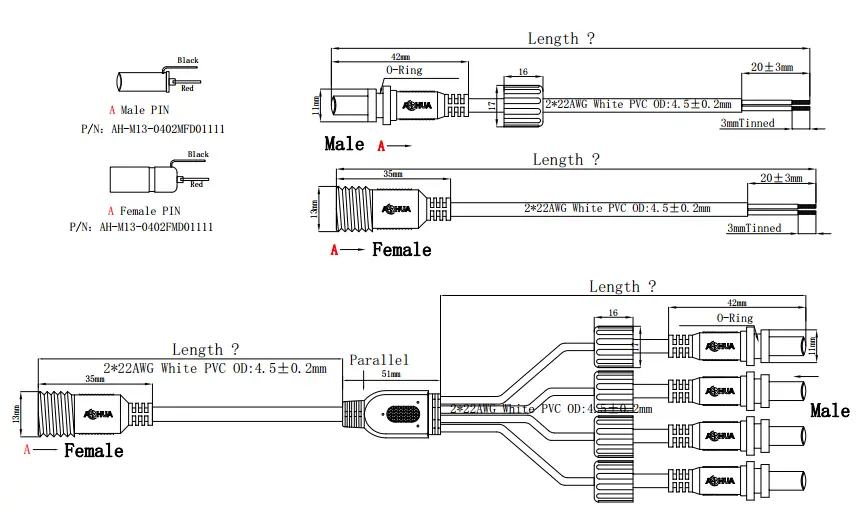

How to order? Ordering a right connector for your application is very important for the power efficient and friend-environment. Surely, your idea is the key for designing. Please send us with your idea or sketch/drawing, then our team will create the CAD drawing even 3D file for you to approve; after drawing approval, we can go ahead for the sample making and next you can do sample testing. Approval for sample, mass production is on the way. What we want to know are: 1. draft/sketch/drawing; 2. working ampere; 3. wire gauge and cable length; 4. wire end lead processing details. |
| Part Number |
Male: AH-M13-0502MFD01111 Female: AH-M13-0502MFD01111 |
| Voltage | 60V |
| Current | 5A |
| Wire Gauge | ≤0.75mm² |
| Cable OD | 3-6.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -20℃~+80℃ |
|
Dedicating to the design and production of cable wires and waterproof connectors with more than 18 years, AOHUA have grown into a super manufacturer integrating R&D, production and sales. What departments we have:
What we can do:
|
 |
Mainly cable wires and waterproof connectors
| PVC Cable | UL2464, SJTW, SVT, ST, UL1007, UL1015 |
| Rubber cable | SJOW, VDE |
| M series nylon waterproof connector-assembly |
Wire to wire, M12, M15, M16, M20, M25, M29 Wire to pane, M12, M16, M20, M25, M29 |
| M series nylon waterproof connector-over molding | wire to wire over molding: M12, M15, M16, M19, M20, M25, M29 |
| K series nylon waterproof connector-assembly/over molding | K15, K20, K25 |
| M series PVC waterproof connector- molding | M8, M10, M11, M12, M13, M14, M15, M16, M19, M21, M23, M29 |
