Terminal Block Male Female Assembly Fast Locking Push Lock 3pin Waterproof Push Wire Connector

This is assembly type push wire connector with waterproof grade IP68.

• Male: AH-M20Q-1503FMZ01232
• Female: AH-M20Q-1503MFZ01232

1. Model: Q20

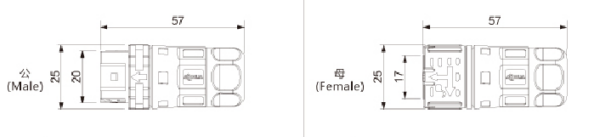

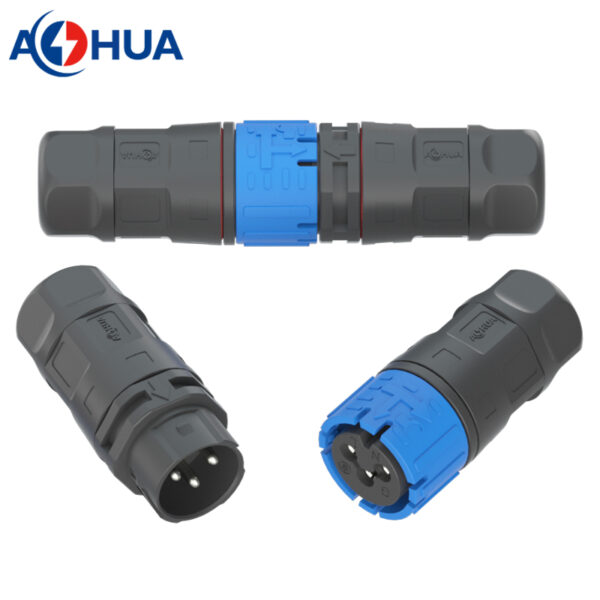

2. Connector Type:  male to female assembly;
3. Connection Type: push wire locking;
4. Plastic material: PA66
5. Conductor: copper
6. Rated Curre: 15A

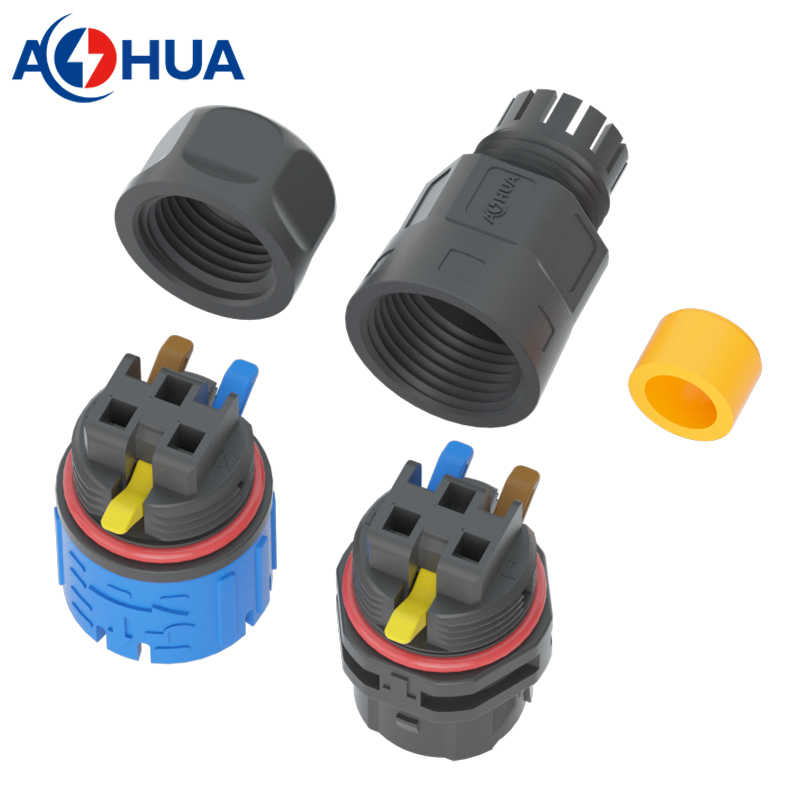

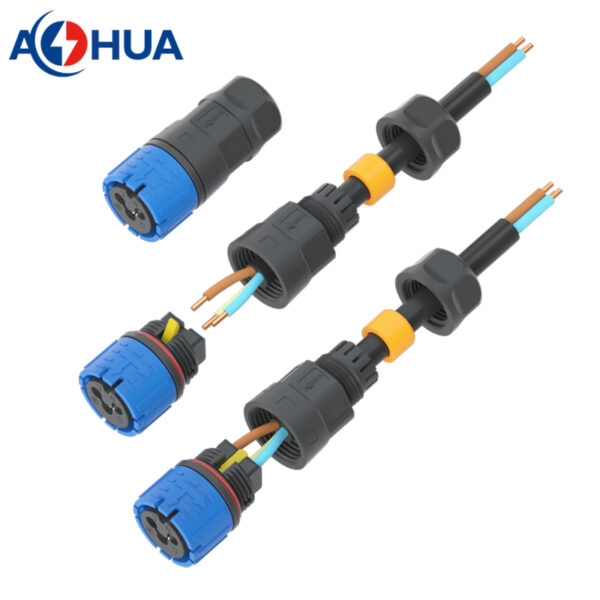

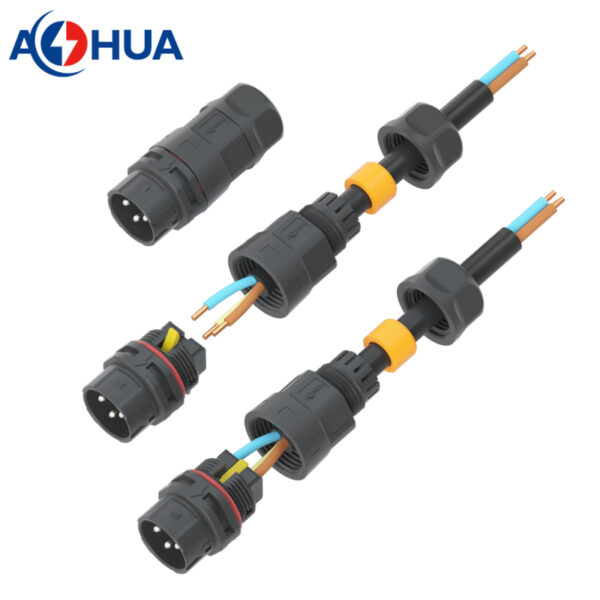

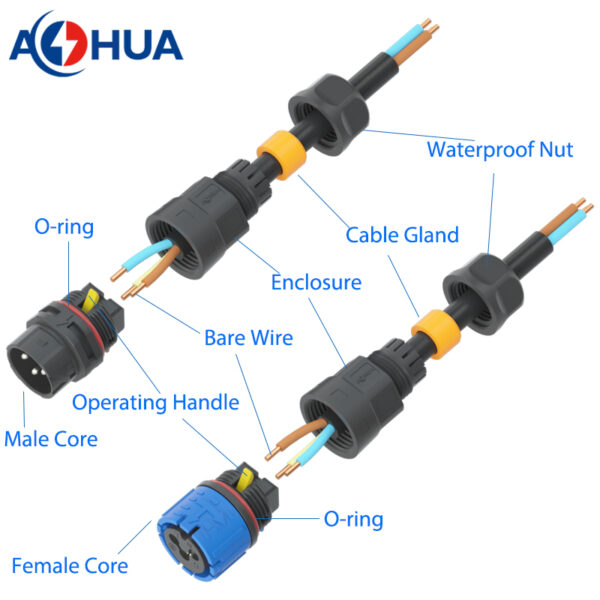

How to assembly push wire connector? This is assembly type connector, which is assembled with some components. Before wiring operation, please check all the components whether is ready, includes: waterproof nuts, cable gland, enclosure, O-ring, male/female cores. All the components should be assembled well in advance before shipment. take off components: waterproof nut, cable gland, enclosures; open operating handle; prepare the bare wire for assembly; pass the cable through components according picture. insert the bare wire into the hold of handle; put the handle back to original position and then the wire be locked; assemble all components tightly.

How to order this push wire connector?

1. confirm the connector type, such as male to female assembly;
2. specify your cable working ampere, wire gauge and cable OD;
3. send these details to our sales team with required quantity, our team will get back to you within 24 hours.

In today’s world, electrical connections that are both reliable and resistant to environmental elements are essential in various industries. One such innovation that stands out is the Waterproof Push Wire Connector. This advanced connector combines the convenience of push wire technology with the robustness of waterproofing, ensuring reliable and secure electrical connections even in challenging conditions.

Reliable Push Wire Technology:
The Waterproof Push Wire Connector utilizes a push wire operating handle, making it effortless to connect and disconnect wires. The push-in design eliminates the need for specialized tools or manual wire stripping, saving time and effort during installation and maintenance procedures. With a simple push of the wire into the connector, a secure and stable electrical connection is established, reducing the risk of loose or faulty connections.

Waterproof Protection:
The primary advantage of the Waterproof Push Wire Connector lies in its ability to withstand water and other environmental elements. It features a robust waterproofing mechanism that prevents moisture ingress, making it ideal for outdoor applications, damp environments, and areas exposed to splashes or water spray. The connector’s waterproofing properties ensure the integrity and longevity of electrical connections, reducing the risk of short circuits, corrosion, and electrical failures.
