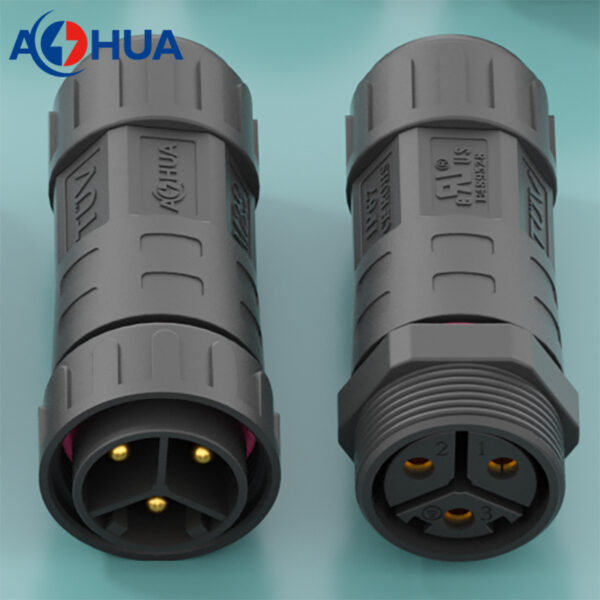

UL Approve Conveyor Power Wire Connection Screw Fixing Male Female Waterproof Plug Socket 3pin 35A 4.0mm

This UL-approved 3-pin connector is a robust and reliable power connection solution designed for demanding industrial applications, including conveyor systems. Rated for 35A and 4.0mm pin diameter, it is engineered to handle high-current power transmission with utmost safety and efficiency.

The unit features a secure screw-fixing mechanism for the cable, ensuring a stable, vibration-resistant connection that prevents loosening over time. The male and female plug-and-socket design allows for quick, tool-free mating and disconnection, streamlining maintenance and machine repositioning. A critical feature is its superior waterproof rating (typically IP68), which protects the internal contacts from dust, moisture, and high-pressure washdowns, guaranteeing operational integrity in harsh environments.

Constructed from high-grade, durable materials, this connector offers excellent resistance to impact, corrosion, and high temperatures. The clear polarity marking and colour-coding prevent mis-connection, enhancing operational safety. It is the ideal choice for creating safe, durable, and easily serviceable power links in manufacturing, automation, and material handling equipment.

Highlights & Specificatins

1. Connector Type: male to female pluggable;
2. Docking Type: screw threads
3. Connection Type: screw fixing
4. Plastic Material: PA66
5. Conductor: gold plated copper
6. Contacts: 3pin
7. Voltage Rated: 300V
8. Current Rated: 35A
9. Wire Size: ≤4.0mm²
10. Cable OD: 7-15mm
11. Mechanical：3000 mating cycles
12. Operating Temperature: -40℃~+105℃
13. Waterproof Grade: IP68
14. Certificate: UL, CE, ROHS

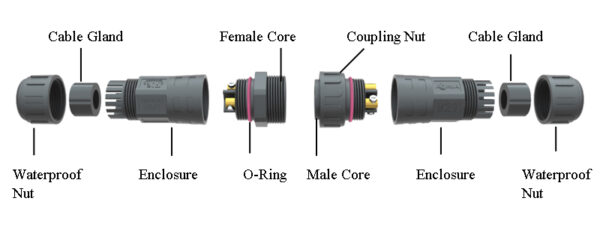

What is the assembly waterproof connector? Assembly connector is assembled with components: waterproof nut, seal ring, enclosure, coupling nut, o-ring, connector cores.

How to order: we want to know about working ampere, wire size, cable OD, certificate, quantity.
