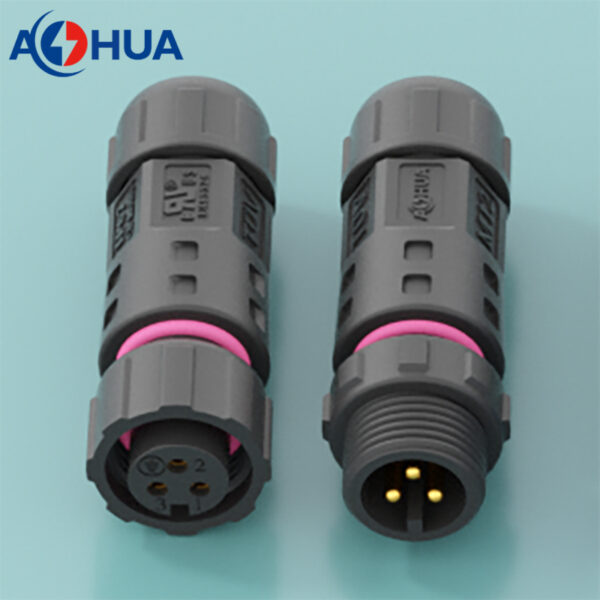

UL Approved 3pin M12 5A Male Female Plug Socket Assembly Solder Type Power Wire Waterproof Connector For Outdoor

1. Here introduce the UL approved waterproof connector, which is mini size male female connector.
2. This UL version, the certificates includes UL, CE, ROHS, SAA, TUV.
3. UL2238 standard.

Highlights

1. Model: M12
2. Contacts: 3pin
3. Plastic: PA66
4. Conductor: gold plated copper
5. Connector Type: male plug to female socket
6. Docking Type: screw threads
7. Connection Type: soldering

Specifications

• Voltage Rated: 300V (TUV: 110V)
• Current Rated: 5A
• Wire Size: ≤1.0mm²
• Cable OD: 3-7.5mm
• Mechanical Life: 3000 mating cycles
• Operating Temperature: -40℃~+105℃
• Waterproof Grade: IP68

How to order?

Specify your detail requests, such as connector type, connection type, docking type, working ampere, wire size and cable OD.

Part Number

1. Male: AH-M12-0503FMZ01112
2. Female: AH-M12-0503MFZ01112
