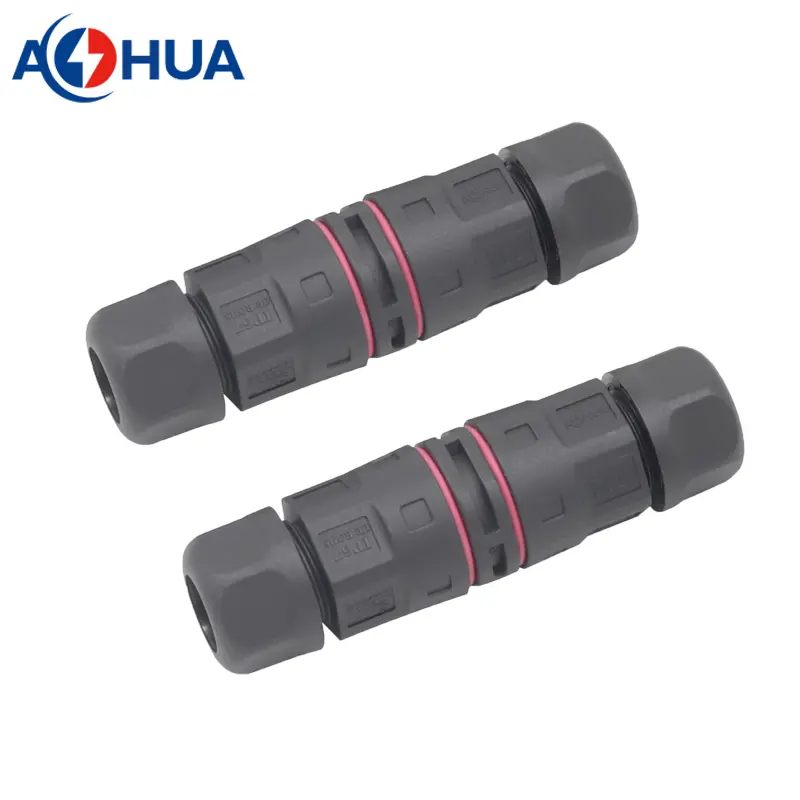

UL SAA certificated M20 L type 2 pin wire IP67 waterproof electrical connector

Waterproof electrical connector is no gender L type inline connector, which is UL SAA CE ROHS certificated connector. The contacts is 2pin for 2 wires joint.

The waterproof electrical connector is mainly used in the power wire, led light wires connection, feeding system wires, and so on. Its waterproof level is IP67~IP68. The waterproof level of un-certificated connector is IP67, the waterproof level of certificated one reach IP68. That is favorable waterproof level for outdoor waterproof.

How to choose the correct AHUA waterproof electrical connector? Since it is used to power wire, it is necessary to determine the current rating/voltage rating. Now that, please confirm the voltage and current rating, then make the wire gauge and cable OD clear. The next choosing a correct connector according to below datas.

How to choose a suitable seal ring for the connector? Choosing seal ring is according to the cable over diameter of the cable you want to connect. Not only should the cable pass through the seal ring, but also to achieve better waterproof effect. So the suitable seal ring is very important for the connector. The below list is seal rings for different cable OD, just for reference.
