UL SAA Certified Straight L Type M15 2PIN IP68 Waterproof Wire Connector For LED Light Driver Power
UL SAA Certified Straight L Type M15 2PIN IP68 Waterproof Wire Connector For LED Light Driver Power
- Model: M15
- Contacts: 2pin
- P/N: AH-M15-1002Z01122
- Rated Voltage: 300V
- Rated Current: 10A
- Wire Gauge: ≤0.5mm²
- Cable OD: 2.5-7.5mm
- Waterproof IP: IP68
- Certificate: CE, RoHS, SAA, UL
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
UL SAA Certified Straight L Type M15 2PIN IP68 Waterproof Wire Connector For LED Light Driver Power

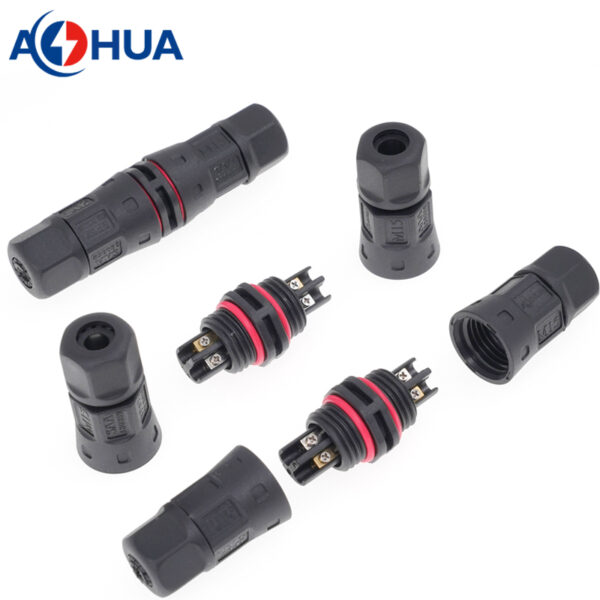

Here is the straight (L type) assembly waterproof connector. What the assembly connector is this connector is assembled with component and coming without cable. This M15 2pin connector is coming with screw lugs, which is easy for wiring operation.
- Highlight of M15 waterproof wire connector
- PA66 plastic material: high hardness and strength, high heat resistance, no blooming. Long life.
- Gold plated brass for conductor: helps ensure a high-quality and long-lasting electrical connection.
- Seal Ring/O-ring: silicone rubber—good waterproof properties.
| Contacts | 2pin |
| Rated Voltage | 300V |
| Rated Current | 10A |
| Wire Gauge | ≤0.5mm² |
| Cable OD | 2.5-7.5mm |
| Operating Temperature | -45℃~+105℃ |
| Waterproof Grade | IP68 |
| Seal Ring | φ3.6/φ4.1/φ5.5/φ6.5/φ7.5 |
