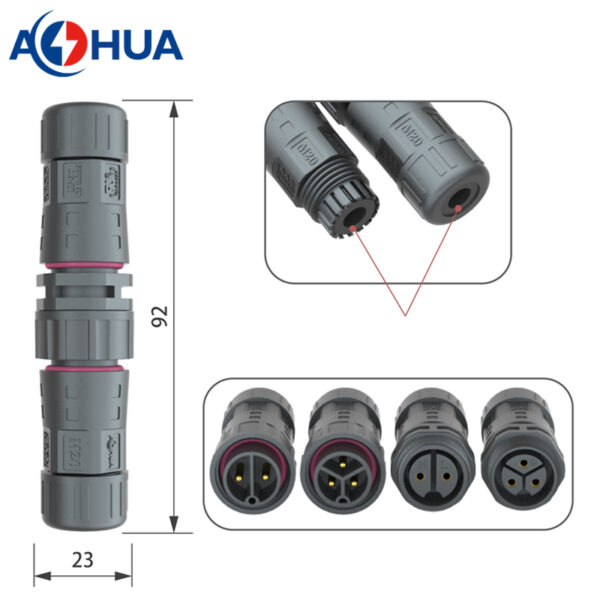

UL TUV CE ROHS Certified Assembly M20 Solder Type 15A Male Female IP68 DC AC 3 PIN Waterproof Plug
UL TUV CE ROHS Certified Assembly M20 Solder Type 15A Male Female IP68 DC AC 3 PIN Waterproof Plug
- Connector Type: inline assembly type.
- Model: M20
- Connection Type: soldering
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
UL TUV CE ROHS Certified Assembly M20 Solder Type 15A Male Female IP68 DC AC 3 PIN Waterproof Plug
- This is certified product, certificates includes: UL, CE, ROHS, TUV, SAA.
- Due to the part number is the same for UL version and general version, please specify the certificate you need before order.

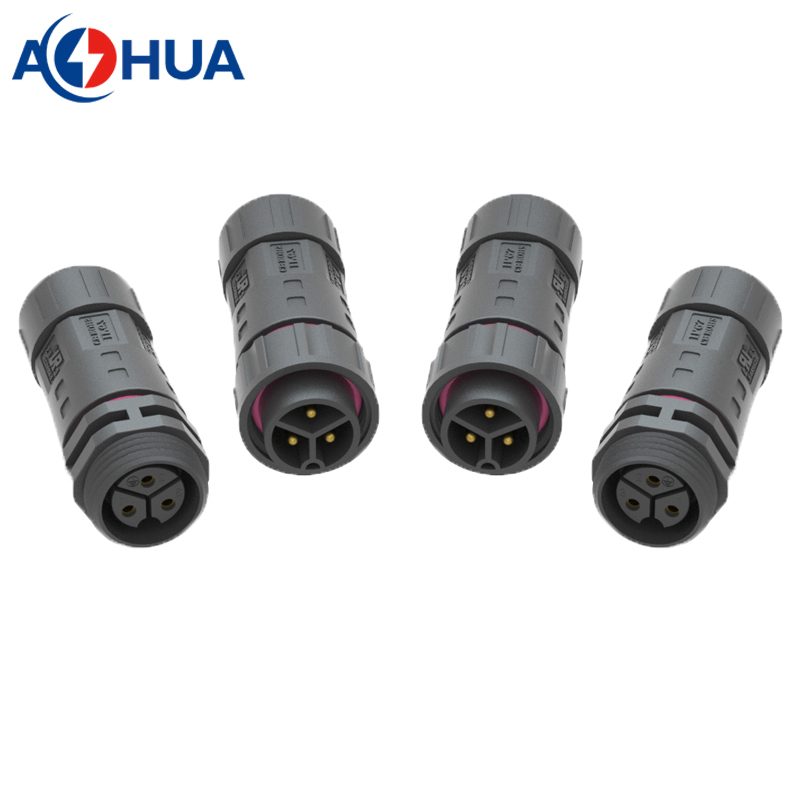

- Male to female plug and sockets, which is assembly type waterproof plug.
Part Number
- Male: AH-M20-1503MMZ01112
- Female: AH-M20-1503FFZ01112
- UL version: UL, SAA, TUV, CE, ROHS
- General version: CE, ROHS
Material & Specification
- Model: M20
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP68
- Plastic Material: PA66—high heat resistance, high strength and no blooming for hard environment.
- Conductor: gold plated copper— good electrical properties
- Crown spring pin: perfect connection for male plug to female.

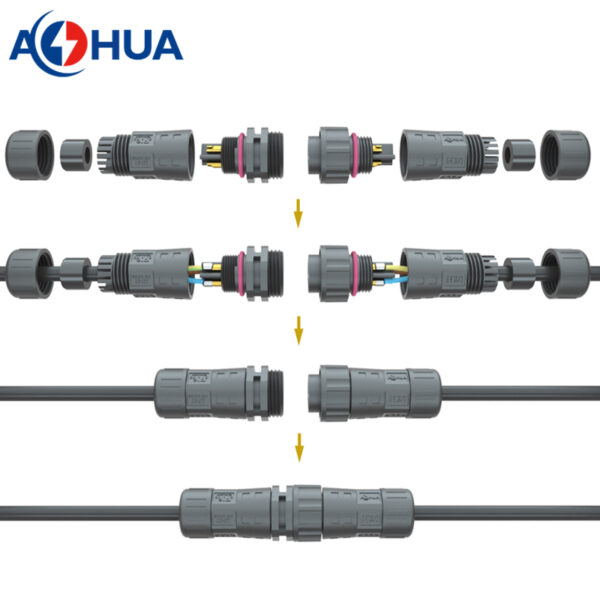

Component
- waterproof nut
- cable gland(seal ring)
- enclosure(shell)
- O-ring(pink)
- Coupling nut
- Connector core male /female.
How to order?
- confirm connector type, such as male to female pluggable type;
- specify the working ampere, wire gauge, and cable OD.
- confirm quantity for sample and large order;
- send all these details to sales team for double checking.
