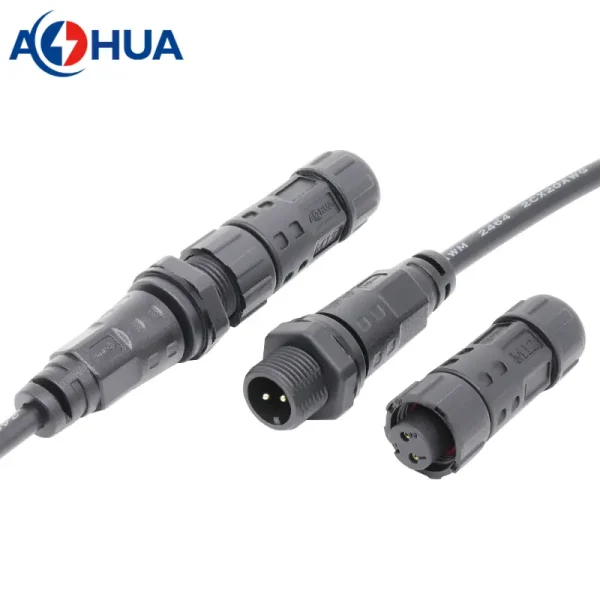

Vertical farming waterproof M12 2 PIN female inline connector to male panel connector with cable
Vertical farming waterproof M12 2 PIN female inline connector to male panel connector with cable
M12 Waterproof Connector
Male: panel connector molded with cable
Female: inline connector
Connector material: nylon
Contacts: 2 pin
Type: front panel mount
Wire gauge:18AWG, 20AWG, 22AWG, 24AWG
Cable length: customized as requirement.
Cable material: PVC or rubber cable
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Vertical farming waterproof M12 2 PIN female inline connector to male panel connector with cable

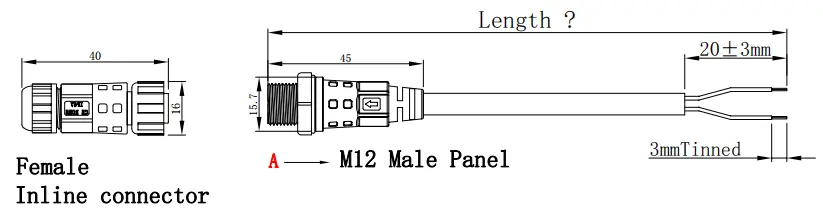

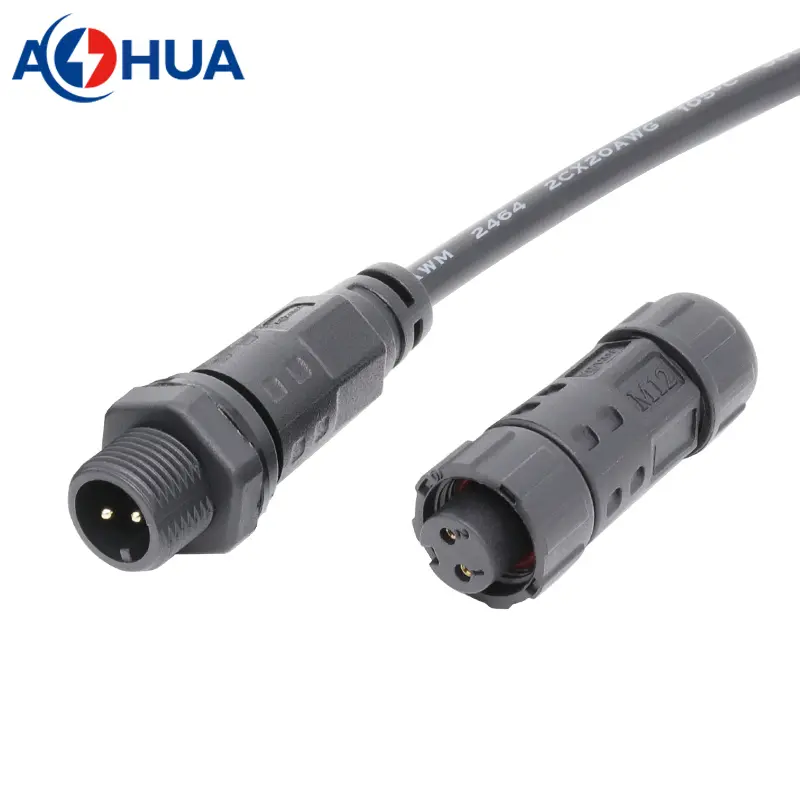

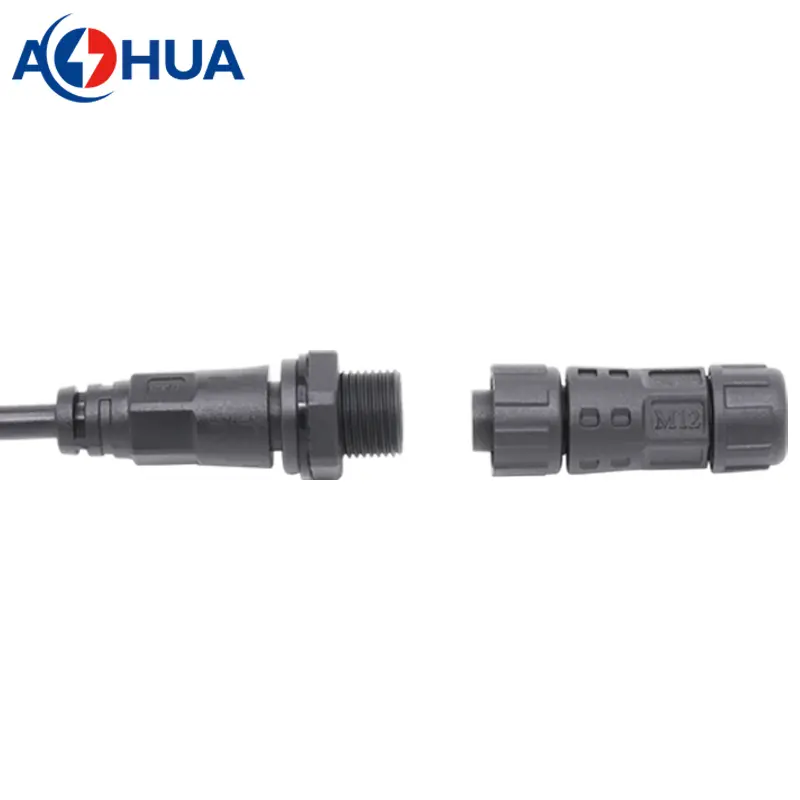

This M12 waterproof panel connector with cable is male connector molded with cable. It is designed based on the panel connector and molded connector. The male side is front panel mounted type connector molded with cable, and the female side is inline connector which is assembly and also is solder type. There are 2pin 3pin, 4pin, 5pin, 6pin, 7pin, 8pin for choosing from. Here go into the detail for 2pin.
- Material: Nylon
- Waterproof Level: IP67
- Contact: 2 pin
- Male: front panel mount, with cable.
- Female: inline connector, solder type.
| Male | Female |
| AH-M12-0502FMB01113 | AH-M12-0502MFZ01112 |
| Voltage Rating | 300V |
| Current Rating | 5A |
| Wire Gauge | ≤1.0mm² |
| Cable OD | 3.5mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP67 |
| Seal Ring | 9*9*3.6/4.1/5.5/6.5/7.5mm |
This M12 panel connector with cable is suitable to the device without cable which required to fix on the panel. The male panel connector will be connected to the device, the connector will be mounted on the panel. And the female will be connected to the power. This is a connection. The another connection is the device will come with cable bare wire. The female will connect to the bare wire, but the male cable will connect to power device which the connector will be mounted on the panel.
