• The assembly type connector is assembled with component: waterproof nut, cable gland, enclosure, coupling nut, O-ring, hex-nut, gasket, connector cores.

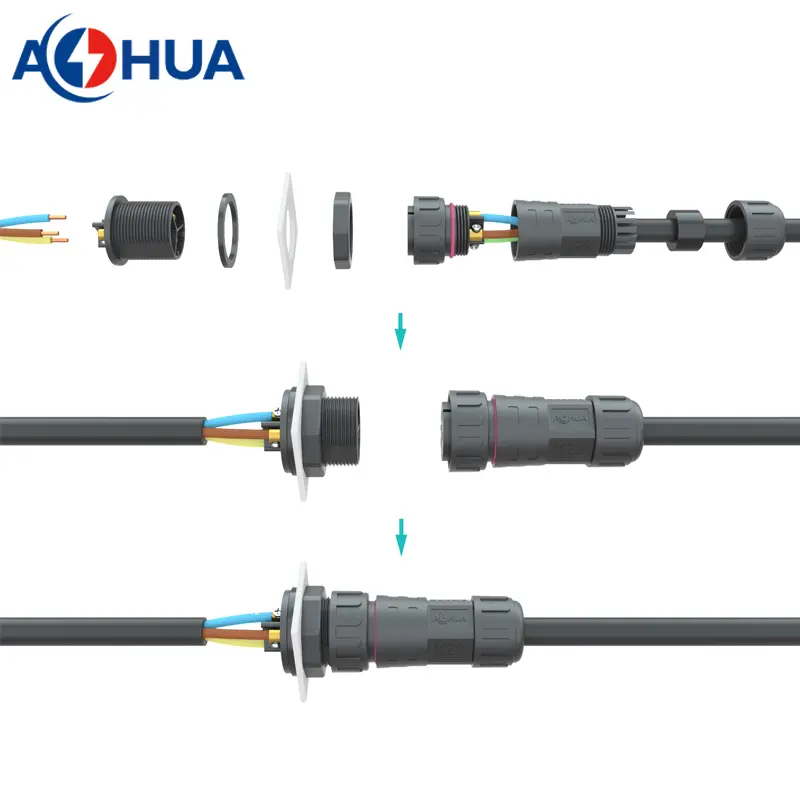

• How to do installation:

1. prepare the cable wire with stripping about 10mm;
2. take down the components;
3. insert the wire through component orderly;
4. using a fine screwdriver to tighten up the wire on socket;
5. assembly components

• How to choose the right electrical connector? Before order, please confirm the connector whether is ok for your power working, or please tell our term with your requirements, we will check and help choose the right connector:

1. connector type: panel type or inline type;
2. male panel or female panel? front panel mount or rear panel mount?
3. contacts number such as 2pin;
4. working ampere and voltage;
5. wire gauge and cable jacket OD;

Waterproof electrical connectors are essential components designed specifically for outdoor environments, providing robust protection for your equipment. Whether you’re engaged in camping, hiking, or industrial applications, these connectors offer peace of mind and reliability.

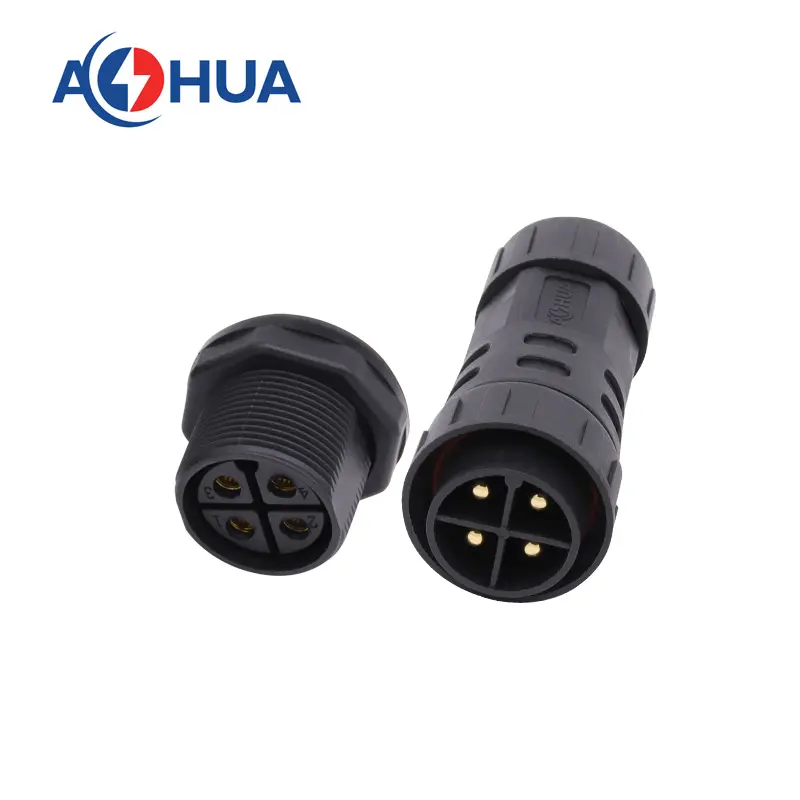

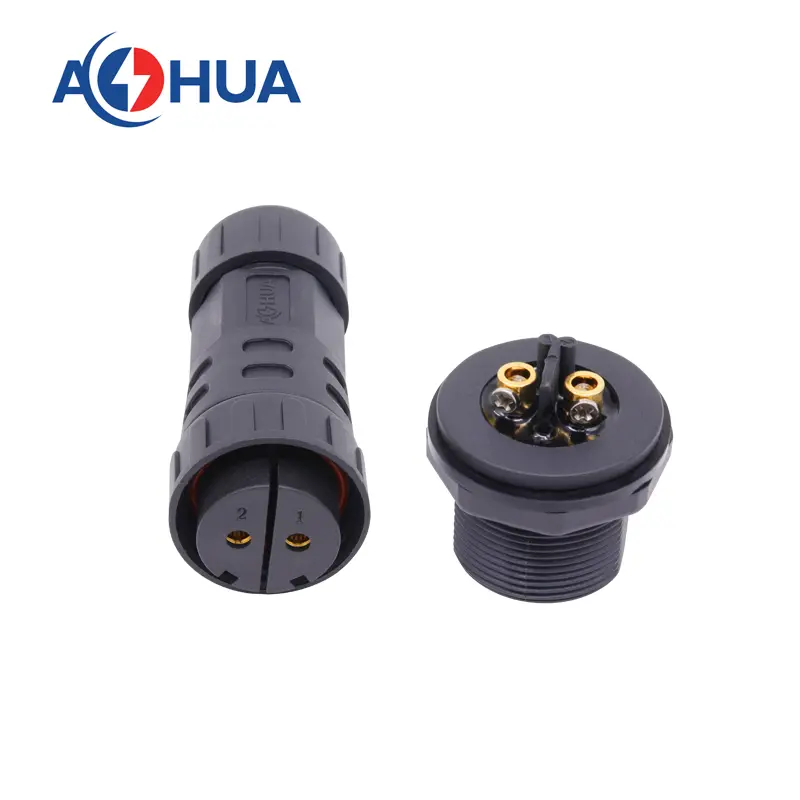

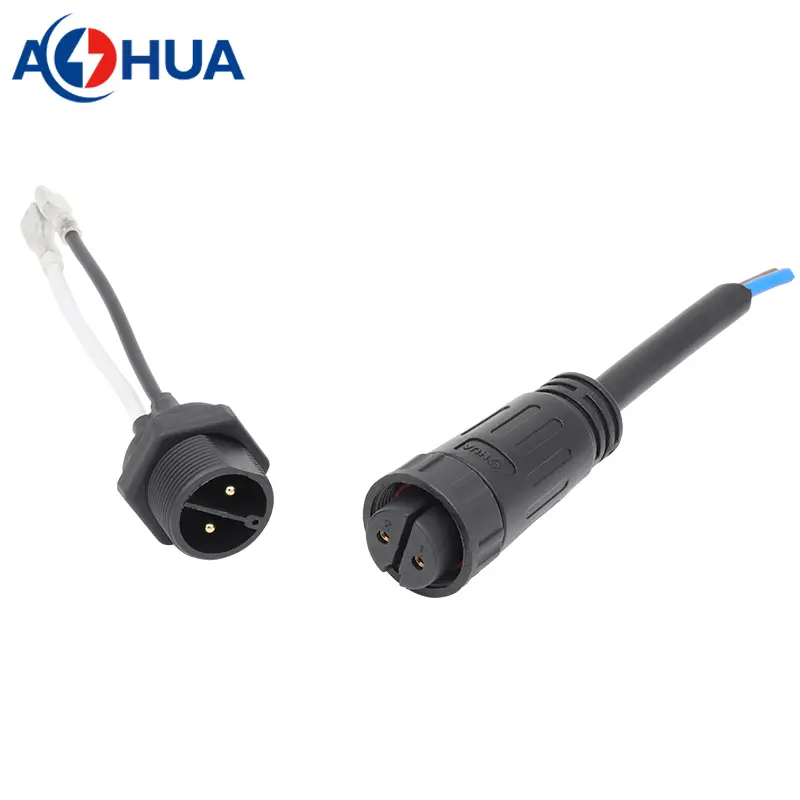

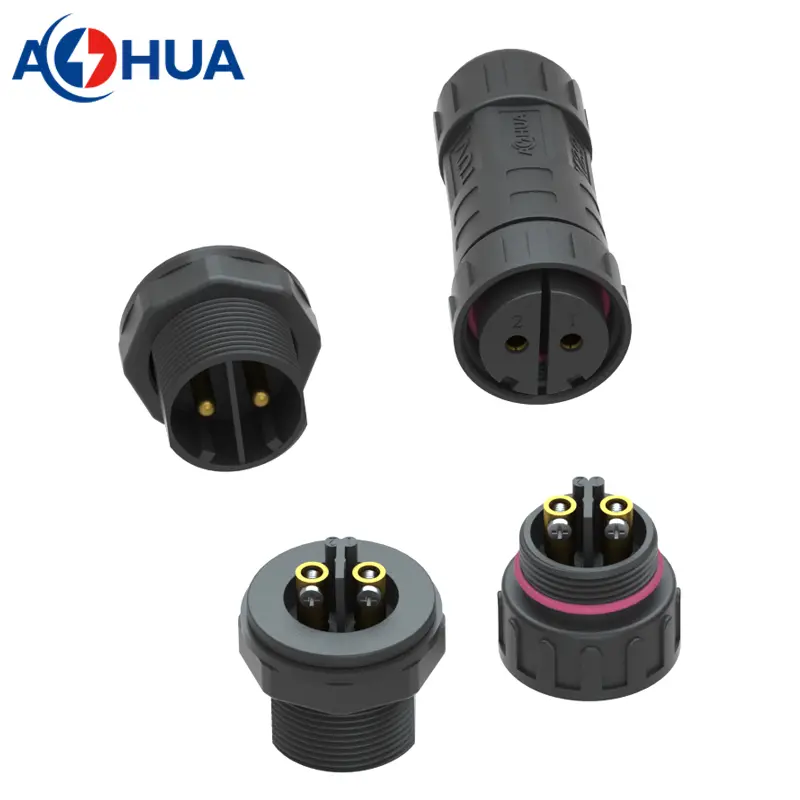

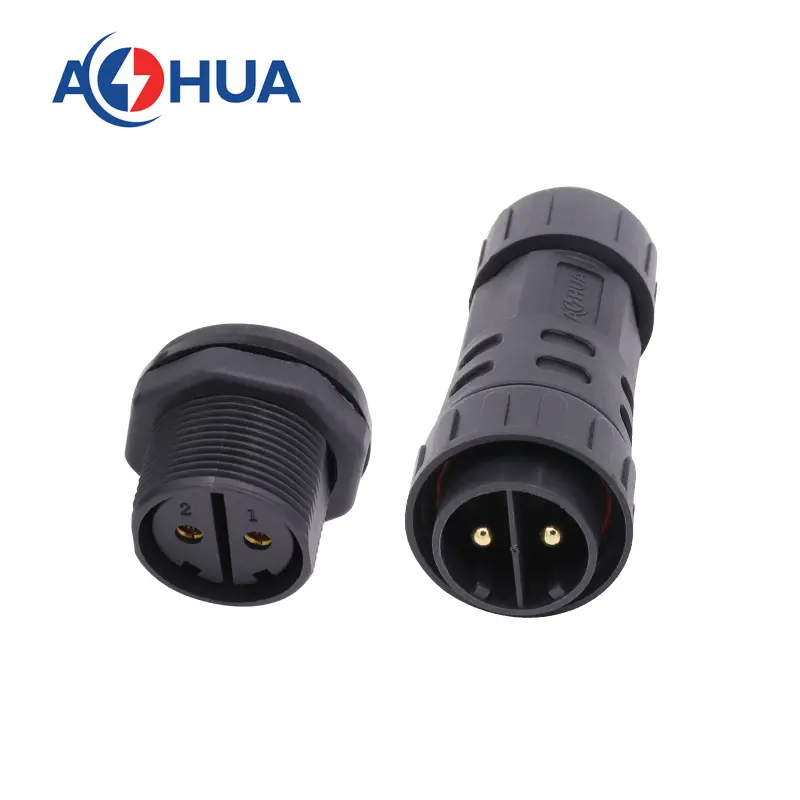

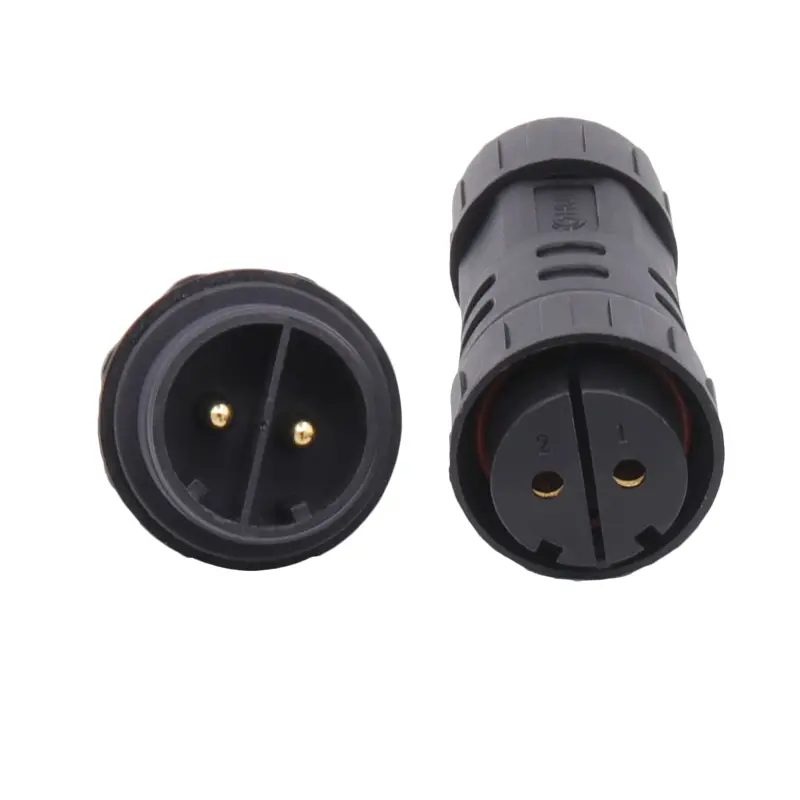

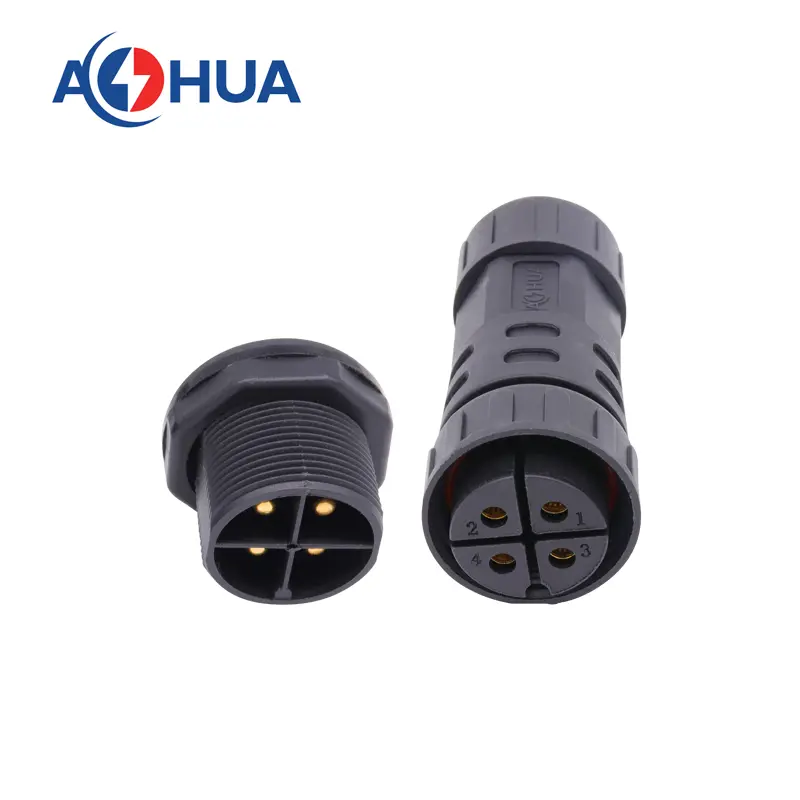

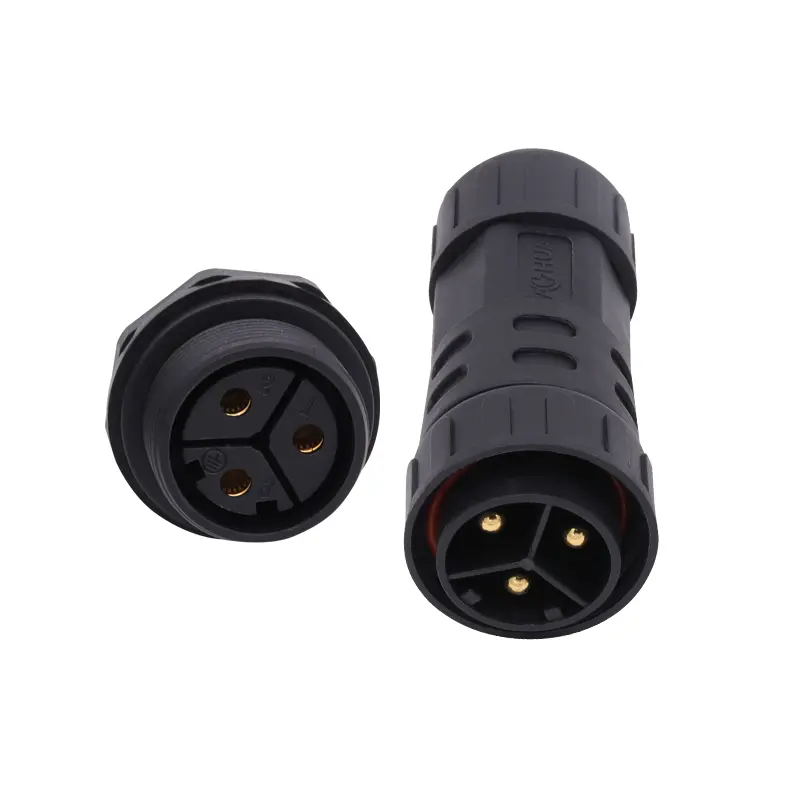

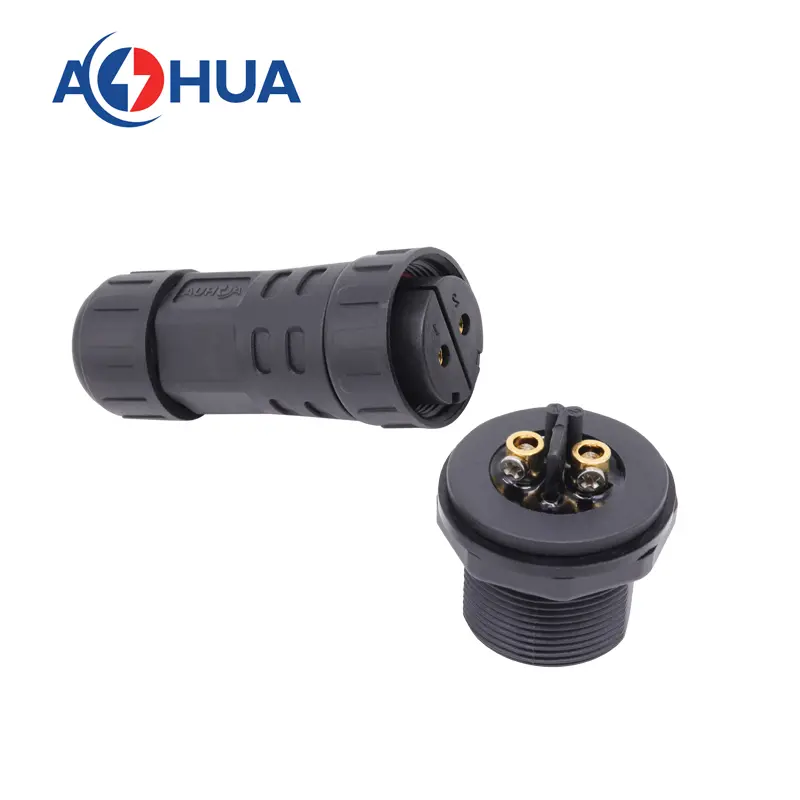

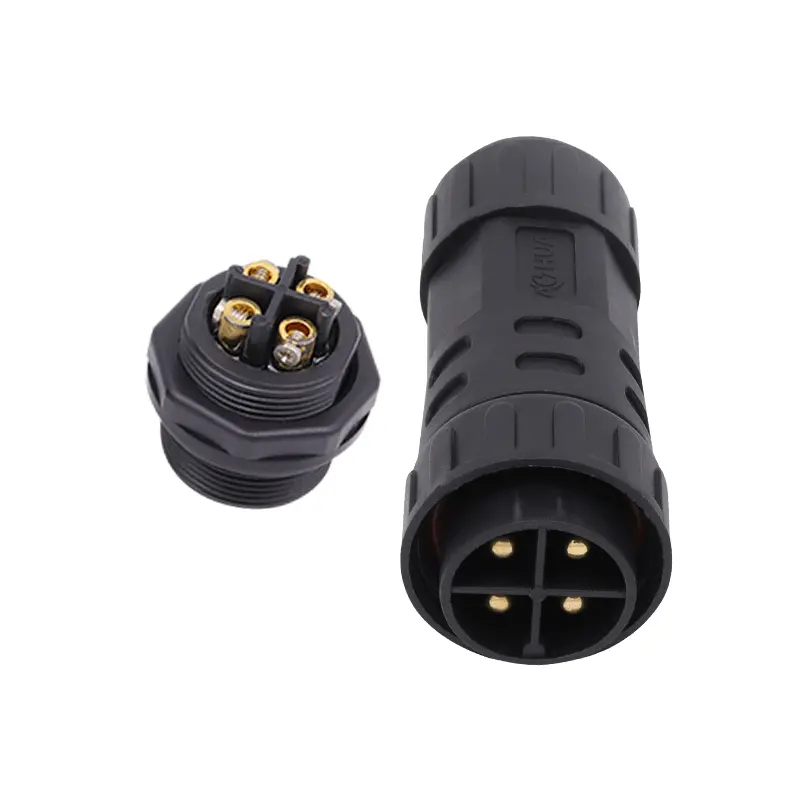

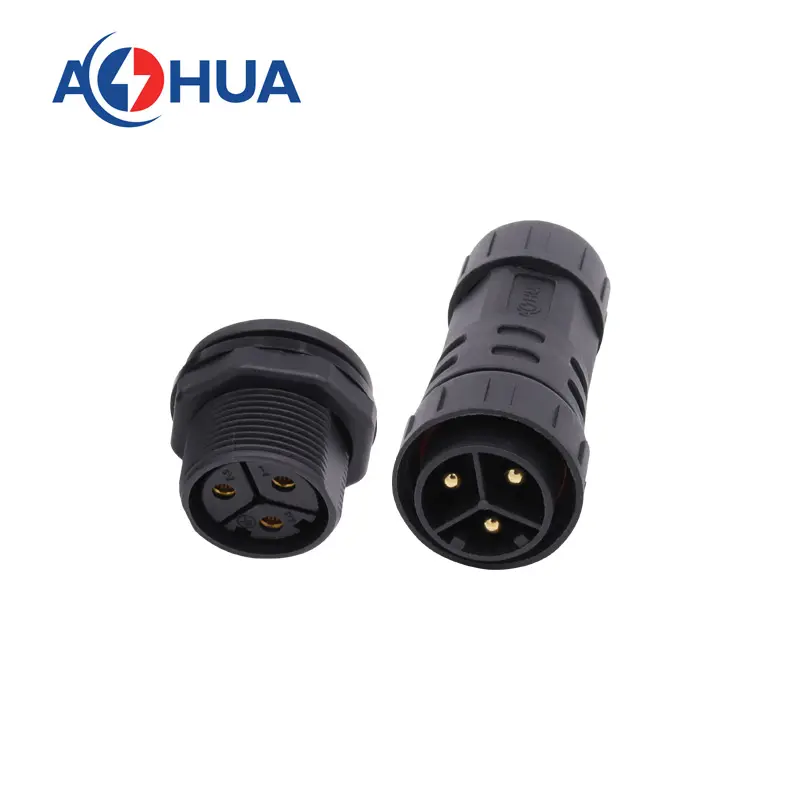

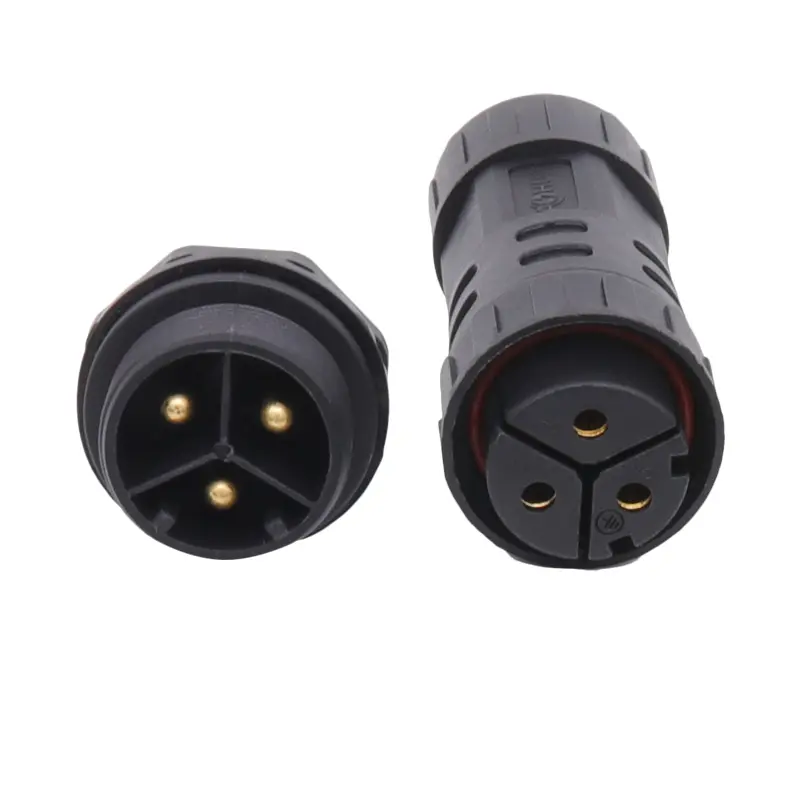

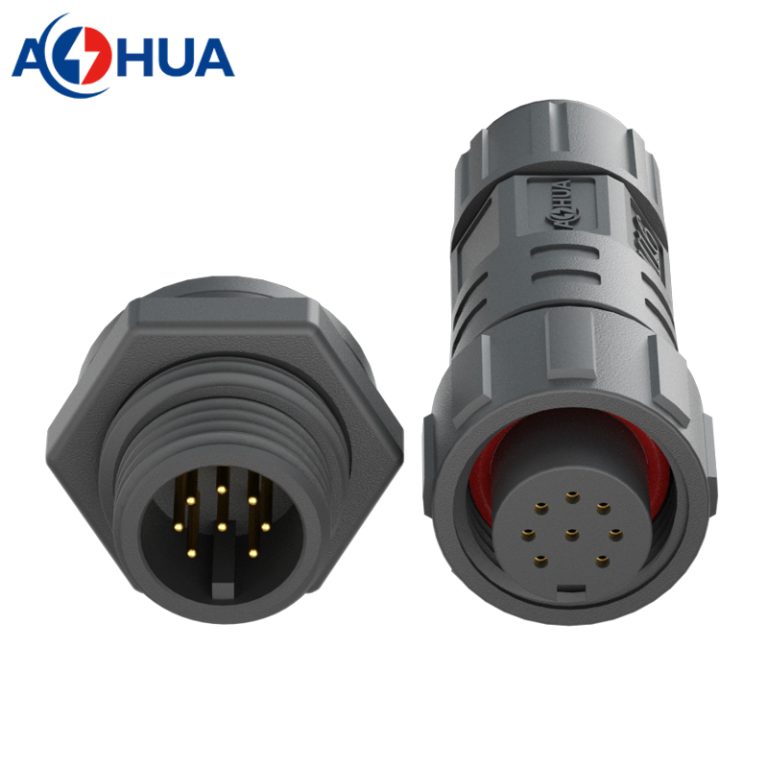

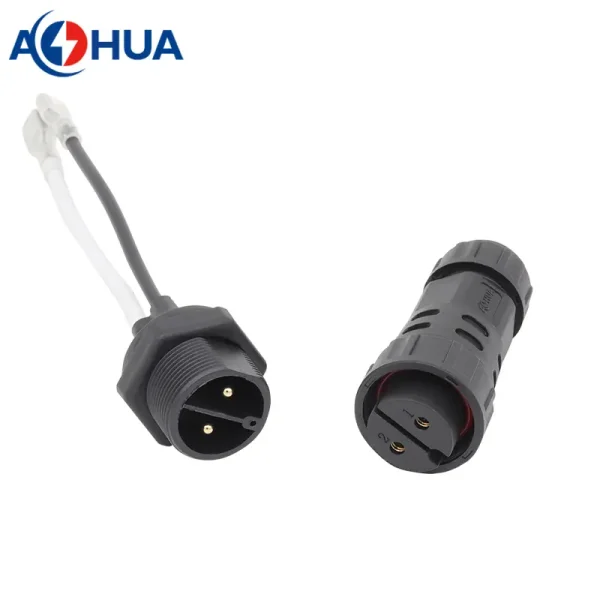

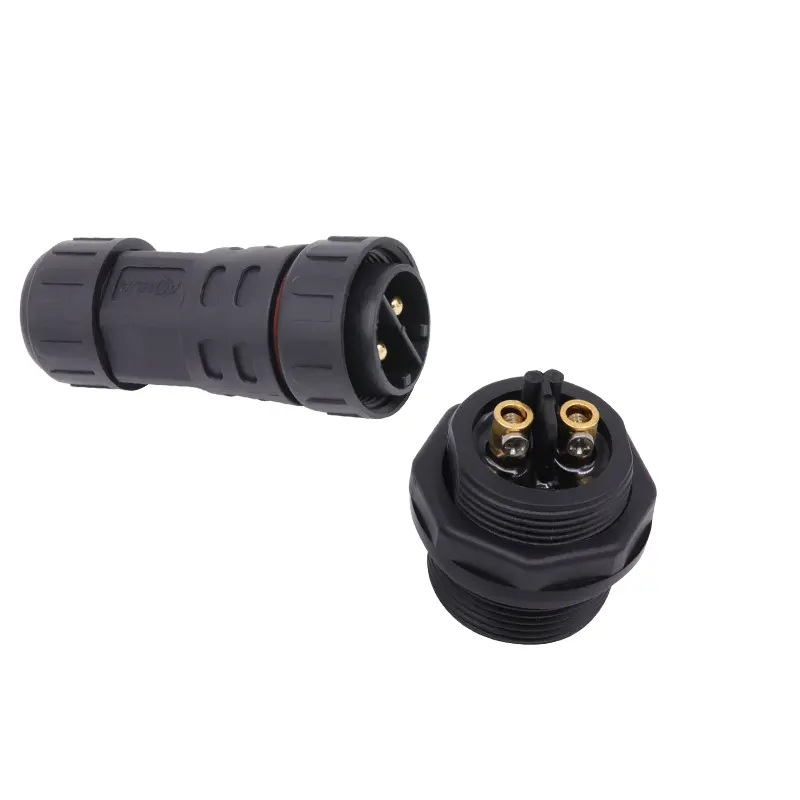

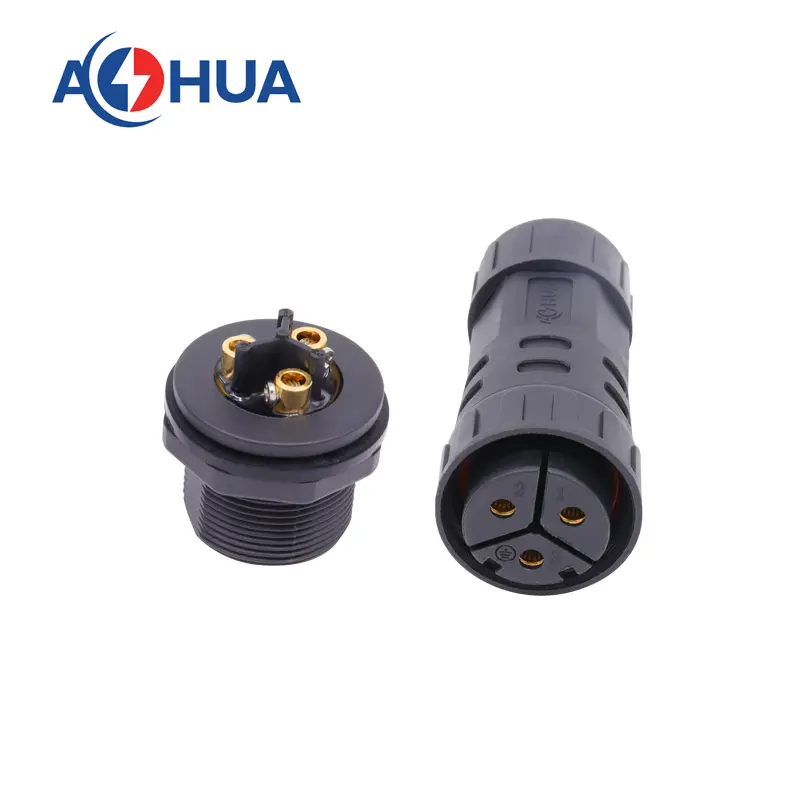

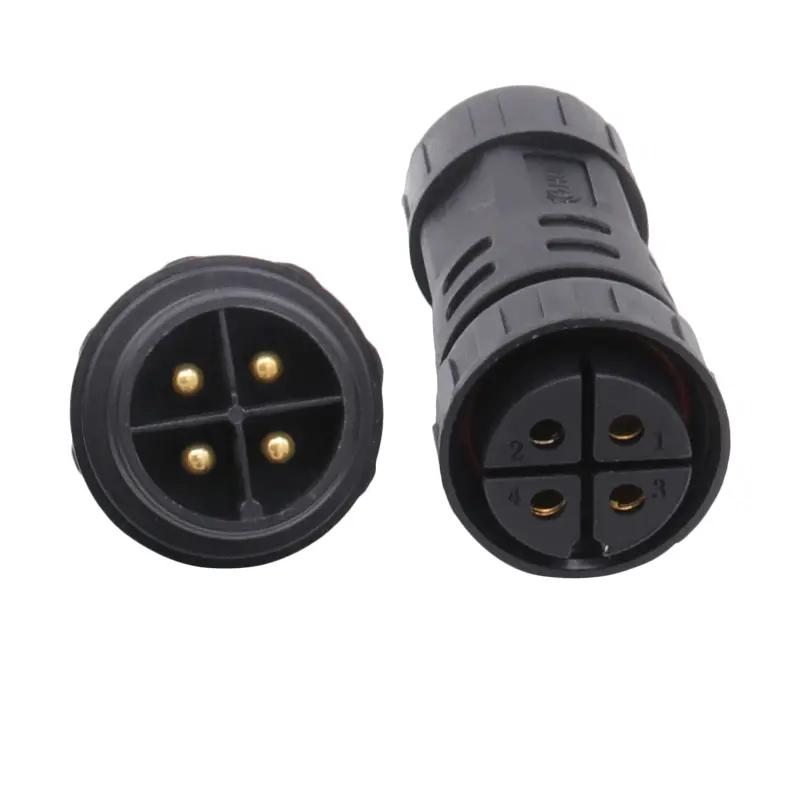

Panel Mount Type Connector:
The panel mount type connector is a popular choice for various applications. With its secure installation on panels or surfaces, it ensures a stable connection even in rugged environments. This type of connector is specifically designed to withstand environmental factors such as moisture, dust, and corrosion, making it ideal for outdoor applications.

Nylon Material:
Waterproof connectors often utilize high-quality nylon material in their construction. Nylon is known for its excellent durability and resistance to aging, ensuring long-lasting performance in diverse weather conditions. The use of nylon in these connectors enhances their strength and reliability, making them suitable for demanding outdoor environments.

Screw Lugs for Wiring Operation:
One notable feature of waterproof electrical connectors is the inclusion of screw lugs for wiring operations. These screw lugs provide secure connections and allow for easy installation and removal of wires. They ensure a tight and reliable electrical connection, minimizing the risk of loose or disconnected wires. This feature is particularly beneficial in outdoor settings where stability and durability are paramount.

Assembly Waterproof Connector:
The assembly waterproof connector is designed to offer exceptional protection against water ingress. Its robust design ensures that it maintains its integrity even in the harshest weather conditions. These connectors are not only waterproof but also exhibit excellent dust and corrosion resistance, making them suitable for various environments.

Customized Wiring Processing:
When it comes to waterproof electrical connectors, customized wiring processing plays a crucial role. It allows the connectors to be tailored to specific requirements, ensuring compatibility with different wire sizes and types. Customized wiring processing also improves the overall efficiency and reliability of the electrical connections, giving users the confidence that their equipment will operate seamlessly.Waterproof electrical connectors are vital components for outdoor applications, providing reliable and secure connections in challenging environments. The panel mount type connector, made from durable nylon material, ensures longevity and resilience. The inclusion of screw lugs offers ease of wiring operation, while the assembly waterproof design guarantees protection against moisture, dust, and corrosion. By utilizing customized wiring processing, these connectors can be adapted to specific needs, enhancing their performance and reliability.

Investing in waterproof electrical connectors allows users to benefit from a high-quality and convenient solution for their outdoor electrical needs. Regardless of the location or application, these connectors become trusted companions, ensuring uninterrupted operation in any weather conditions.
