X Shape Distributor 4 Way Splitter Solderless IP68 Assembly 1 To 3 Waterproof 2pin Push Wire Locking Connector
X Shape Distributor 4 Way Splitter Solderless IP68 Assembly 1 To 3 Waterproof 2pin Push Wire Locking Connector
- Model: M20
- Contacts: 2pin
- Cable core: 2 wires
- Connector Type: 4 way(X type)
- Connection Type: push-wiring locking
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:

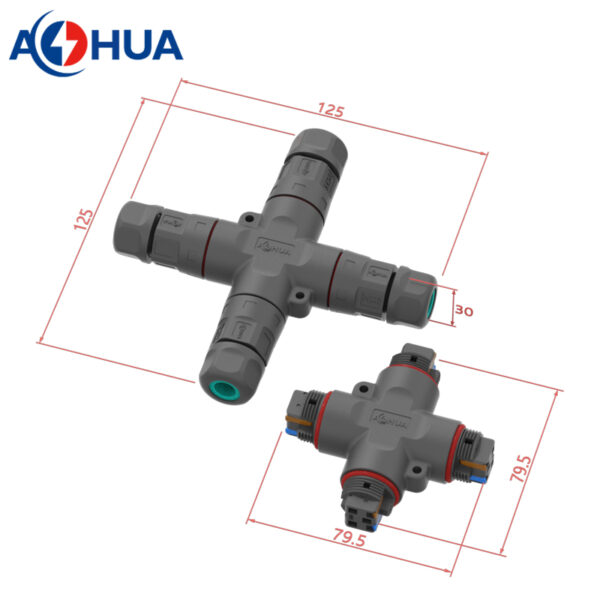

X Shape Distributor 4 Way Splitter Solderless IP68 Assembly 1 To 3 Waterproof 2pin Push Wire Locking Connector

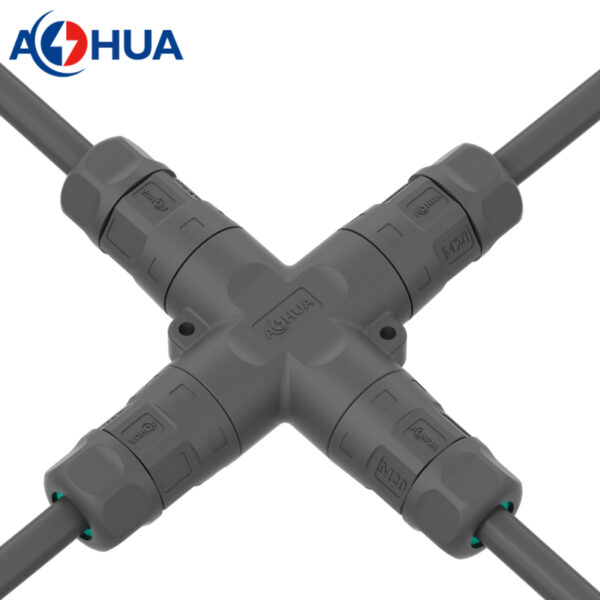

This is X shape waterproof connector with push-wire handles.
Material:
- Contacts: copper
- Plastic material: PA66
- Cable Gland: silicone rubber
Part Number:
- AH-M20-1502X02132
Specifications:
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm² or 16AWG
- Cable OD: 5-10mm
- Waterproof Grade: IP68
- Operating Temperature: -40℃~+105℃

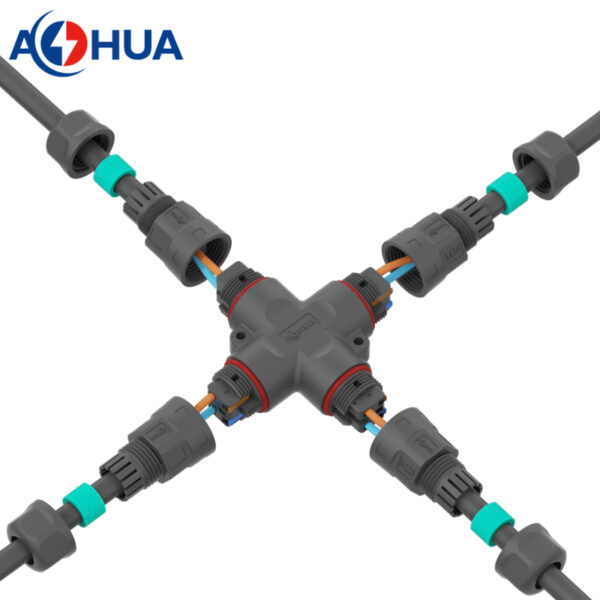

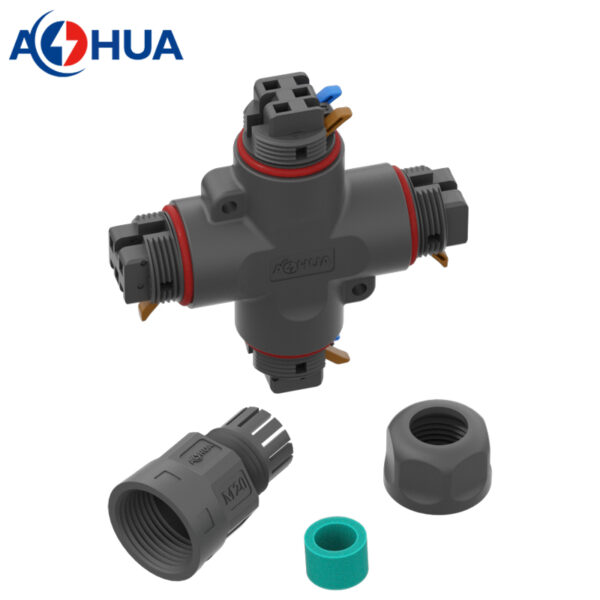

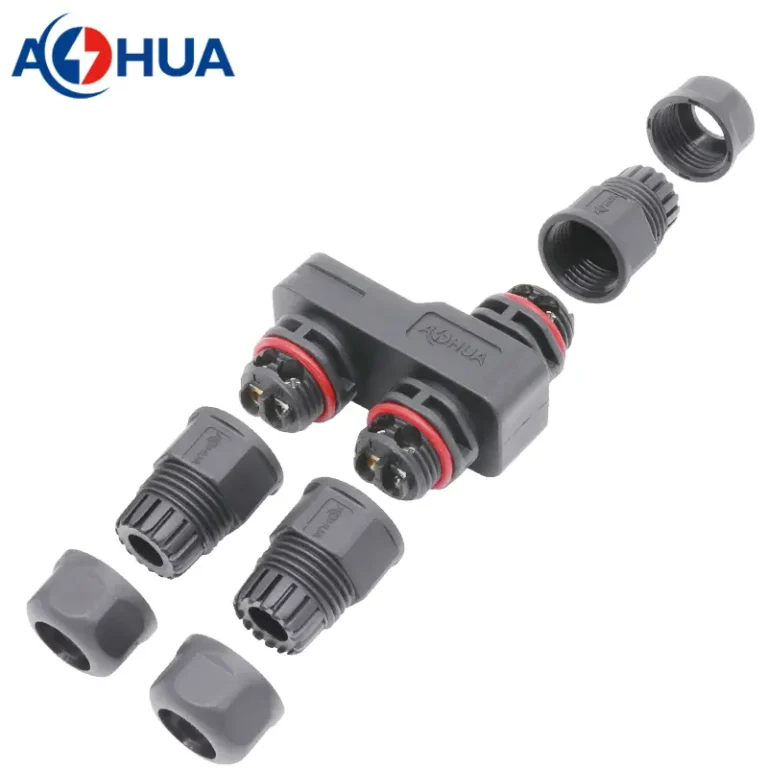

Components:
- waterproof nut;
- cable gland;
- enclosure;
- connector core;
How to do wiring operation:
- please prepare the cable in advance: stripping wire length about 8mm;
- you can take off the waterproof nut, cable gland, enclosure orderly;
- push the cable wire go through components: from waterproof nut, cable gland and enclosure;
- turn on the handles;
- insert the stripped wire to the hole of handles;
- turn the handles back to original positions;
- assembly all components orderly and tightly.
How to choose a right waterproof splitter connector your power cable?
The connector is chosen according to your working ampere, wire gauge and cable OD. So:
- you need to confirm the connector type firstly, such as 1 to 3 splitter or 1 to 2 splitter;
- specify the working ampere, wire gauge and cable OD, such as: 10A, 2*1.5mm²， OD9mm;
- according to the specification to choose a right connector; or contact our sales for choosing and double check the right connector.

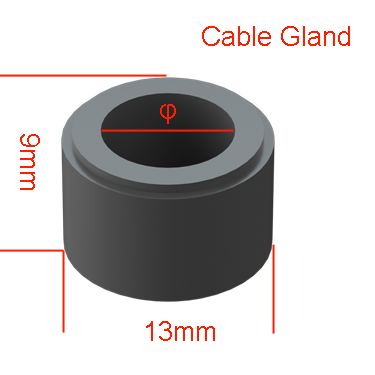

How to choose a suitable cable gland?
The suitable cable gland would be ensure higher waterproof grade. How to choose a right cable gland? In AOHUA, the cable gland also called seal ring, which is the sealing ring between cable and connector. Our principle is the inner diameter(diameter of seal ring hole) should be larger than cable OD in order to put the cable through it, but it should be close to the cable OD, like that when the cable gland is under the pressure of waterproof nut, it should be get better sealing, then get better waterproof grade.
Below data just for reference
- OD is 5-6.5mm, cable gland inner diameter φ6.5mm;
- OD is 6-7.5mm, cable gland inner diameter φ7.5mm;
- OD is 7-8.5mm, cable gland inner diameter φ8.5mm;
- OD is 8-9.5mm, cable gland inner diameter φ9.5mm;
- OD is 9-10mm, cable gland inner diameter φ10mm;
All problems can be solved by AOHUA team, please feel free to contacts the sales Molly: molly@aohuadz.com, +86 15977341750.
