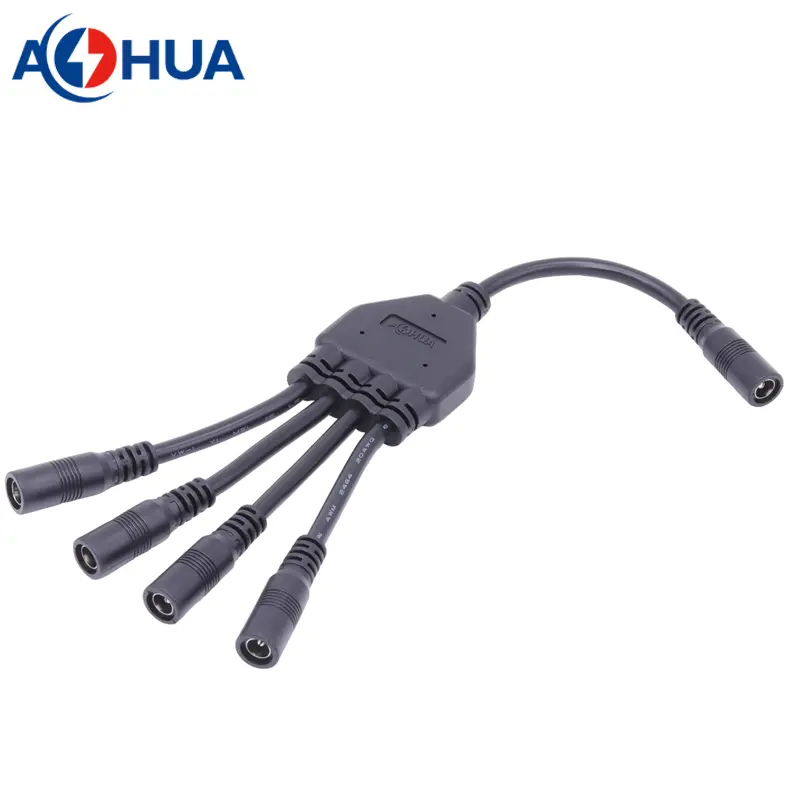

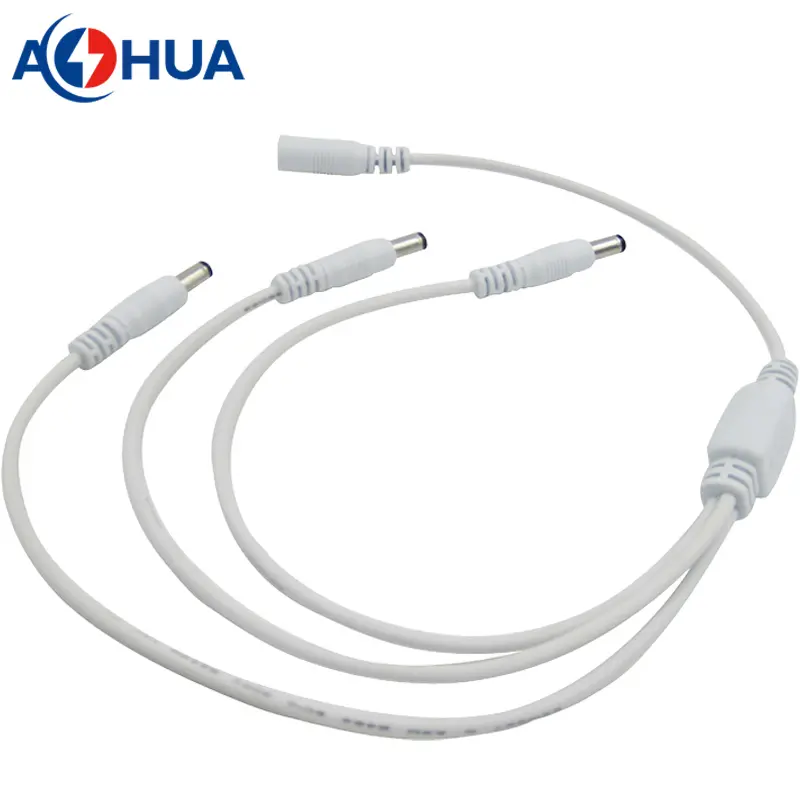

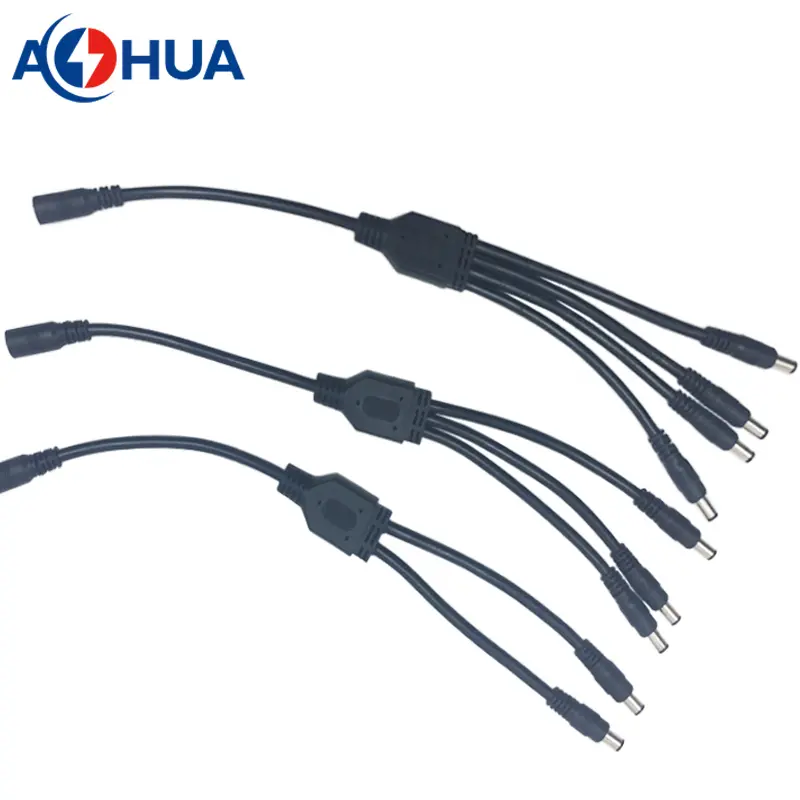

Y type 1 to 4 M11 male female dc connector
Y type 1 to 4 M11 male female dc connector
P/N: AH-M11-0402MFD01311/AH-M11-0402FMD01311
Connector: PVC
Cable: PVC
Color: Black/White
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M11 DC Connector
| Part Number |
AH-M11-0402MFD01311 AH-M11-0402FMD01311 |
| Voltage Rating | 60V |
| Current Rating | 5A |
| Wire Gauge | ≤0.5mm² |
| Cable OD | 3.5mm-5.5mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| DC Metal Size | 5.5*2.1 or 5.5*2.5 |
