M25 IP68 Waterproof Circular Connectors

Many machines use round connectors for power and signals. The M25 IP68 Waterproof Circular Connectors fit this role well. They come in two styles: wire to wire and wire to panel. In this post, I explain both options. I also cover their wiring methods.

Two Connection Styles

Wire to wire. This style joins two cables together. Therefore, you can extend or repair lines easily.

Wire to panel. This style mounts through a panel or wall. Moreover, it gives a clean and sealed entry.

So, you can choose the style that fits your installation. Both share the same tough shell.

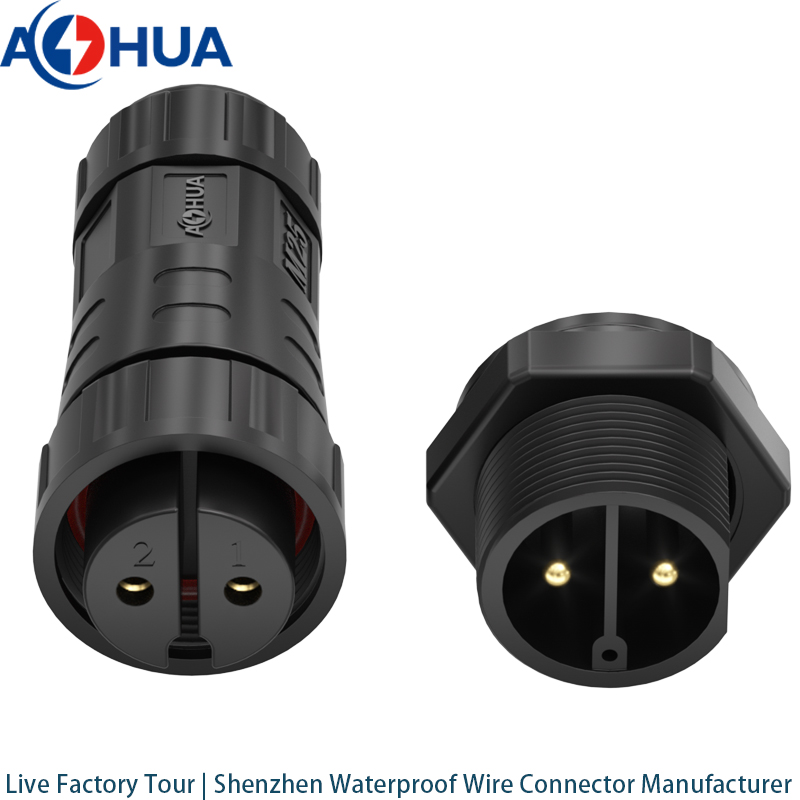

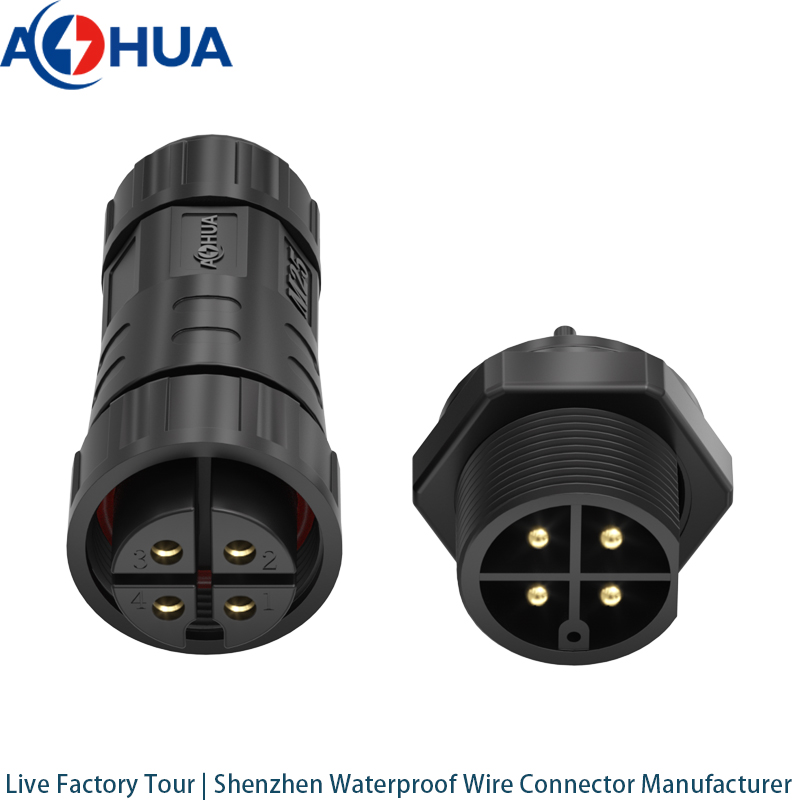

Screw-Terminal Wiring for 2 to 5 Pins

The pain. Field workers dislike slow crimping steps. Tight deadlines make this worse.

The solution. For 2 to 5 pins, the M25 uses screw terminals. You insert the wire and tighten the screw. Thus, each joint finishes fast. Moreover, you can rework it later. As a result, installation stays simple.

Solder-Terminal Wiring for 6 to 9 Pins

The pain. High pin counts need secure joints. Loose solder then causes failures.

The solution. For 6 to 9 pins, the M25 uses solder terminals. You solder each contact firmly. This method handles more signals. Additionally, it keeps the joint stable. So, the connector supports complex wiring.

Threaded Male-Female Locking

The pain. Push-fit round connectors loosen with vibration. Eventually, the connection fails.

The solution. The M25 uses a threaded coupling. You twist the male and female parts together. Hence, the joint holds tight. So, it resists shocks and pulling forces.

IP68 Waterproof Protection

The pain. Rain and washing push water inside. Once inside, corrosion starts.

The solution. The M25 reaches IP68 rating. Water cannot enter under long immersion. Furthermore, dust stays outside. Therefore, the contacts stay clean.

Materials That Last

The housing uses PA66 plastic. This material resists heat and chemicals. Meanwhile, the pins use copper. Copper carries current well. Additionally, plating protects against rust. So, the connector lasts outdoors.

Where to Use the M25

Industrial machines. Control panels need sealed wiring. The M25 wire-to-panel style fits well. It also saves panel space.

Outdoor lighting. Streetlights and signage face rain daily. This connector seals them against moisture.

Automation lines. Sensors and drives connect through round plugs. The M25 handles many pins. Therefore, it suits complex control circuits.

Agricultural equipment. Dust and moisture surround these machines. IP68 protection covers them. So, they keep working in muddy fields.

In each case, the M25 keeps the link stable. Then, you avoid downtime.

Screw vs Solder: Which to Pick

Screw terminals. These suit low pin counts. You tighten them with a screwdriver. So, they work fast in the field.

Solder terminals. These suit high pin counts. They handle more signals. However, they need more time. Choose based on your pins and skill level.

A Quick Checklist

• Choose wire to wire or wire to panel
• Count your pins, from 2 to 9
• Pick screw or solder terminals
• Match the thread to your housing
• Then, order a matching harness

Final Thoughts

The M25 IP68 Waterproof Circular Connectors cover many needs. They offer two styles and two wiring methods. Moreover, the threaded lock resists vibration. Hence, they fit tough outdoor jobs. Choose the right style for your project. Then, your equipment runs reliably in any weather.
