1 Input 2 Output Driver Power F Type Splitter Distributor IP68 Waterproof Male Female Connector 2pin 10A

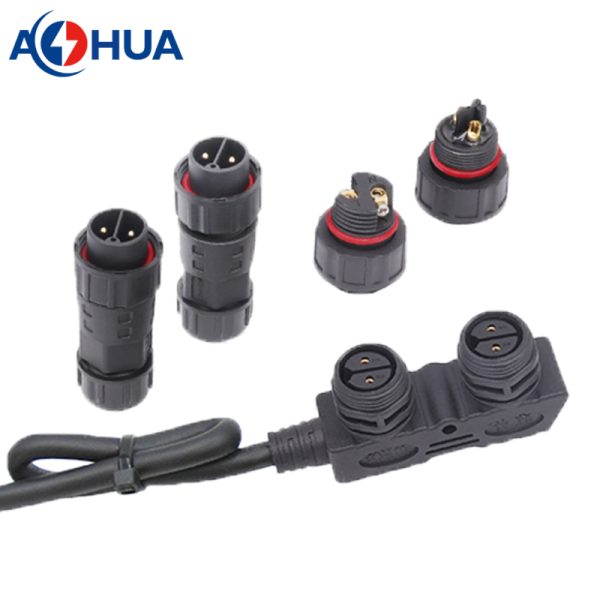

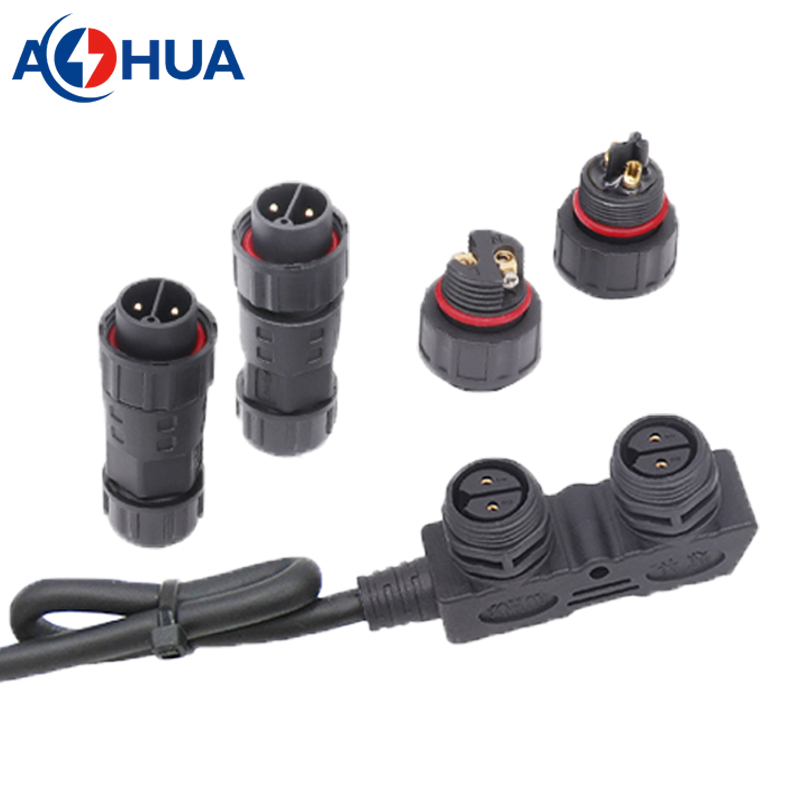

This is F type distributor with M20 male female connector with 3 cores. It mean that the male female connector is M20 model screw threads, and designed it on the PCB panel and molded with plastic housing. This distributor connector can be made in Parallel or Series. The socket in splitter is female, the mating connector is male plug, it can be assembly type or molding type, in meanwhile, the assembly connector can be solder or screw type for wiring operation. In the input cable, it should be bare wire end or mold with male connector that is according to the real application to design. In a word, this is a distributor cable solution that customize as requirement from clients.

• Model: M20 distributor
• Parallel: AH-M20-1002FFO2P112
• Series: AH-M20-1002FFO2S112
• The housing plastic must be PA66 material. And the conductor must be gold plated brass;

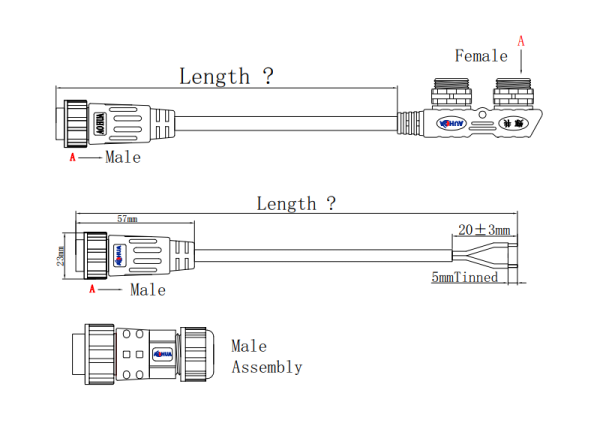

• The wire size for customized should be 1.5mm², 1.0mm², 0.75mm². And cable length can be customized as request, the shortest cable is 100mm but no longest limited.
• There is PVC or Rubber cable for choosing from. Surely other materials cable also can be choosing from. But the best cable is belong to rubber.

How to customize your own cable solution?

Before order, please confirm and specify the wire details and power. Such as:

1. working ampere: 10A or 5A?
2. wire size: 1.0mm² or 1.5mm²?
3. cable length: 100mm or 500mm?
4. connection: Parallel or Series?
5. cable material: PVC or rubber or other?
6. connector type: assembly or molding type?

Due to this is customized solution, please specify the application or what is the usage, then our team will choose the better solution or model for your application.
