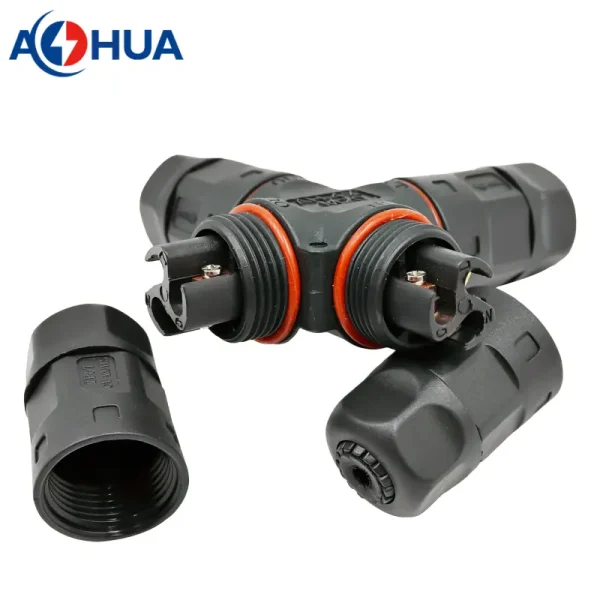

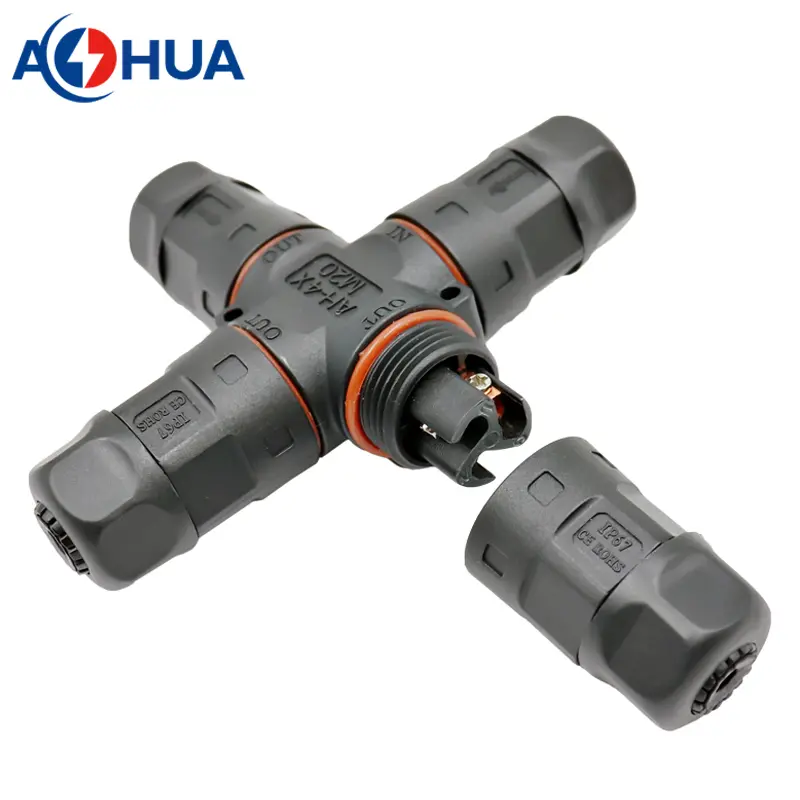

3pin M20 20A power splitter X type waterproof connector for 5G base station
3pin M20 20A power splitter X type waterproof connector for 5G base station
P/N: AH-M20-2003X01122
Material: nylon
Color: black
Contacts: 3pin
Certificate: CE/ROHS/UL/SAA
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| Items | PINs | Part Number | Wire Gague | Voltage | Current |
| M20 | 2 | AH-M20-2002X01122 | ≤1.5mm² | 300V | 20A |
| M20 | 3 | AH-M20-2003X01122 | ≤1.5mm² | 300V | 20A |
| Cable OD | 5.0mm-10mm |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
