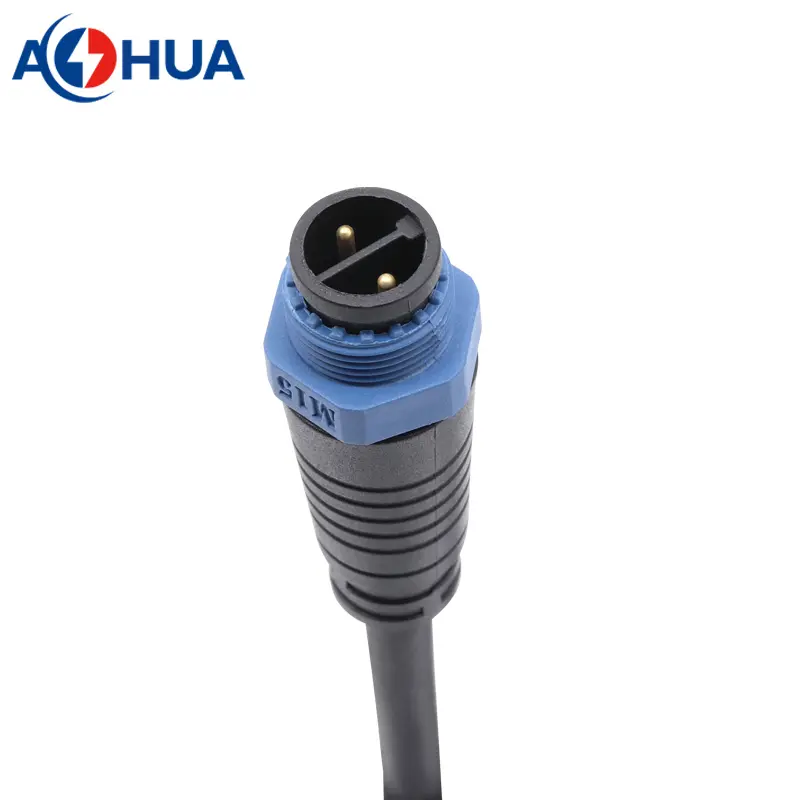

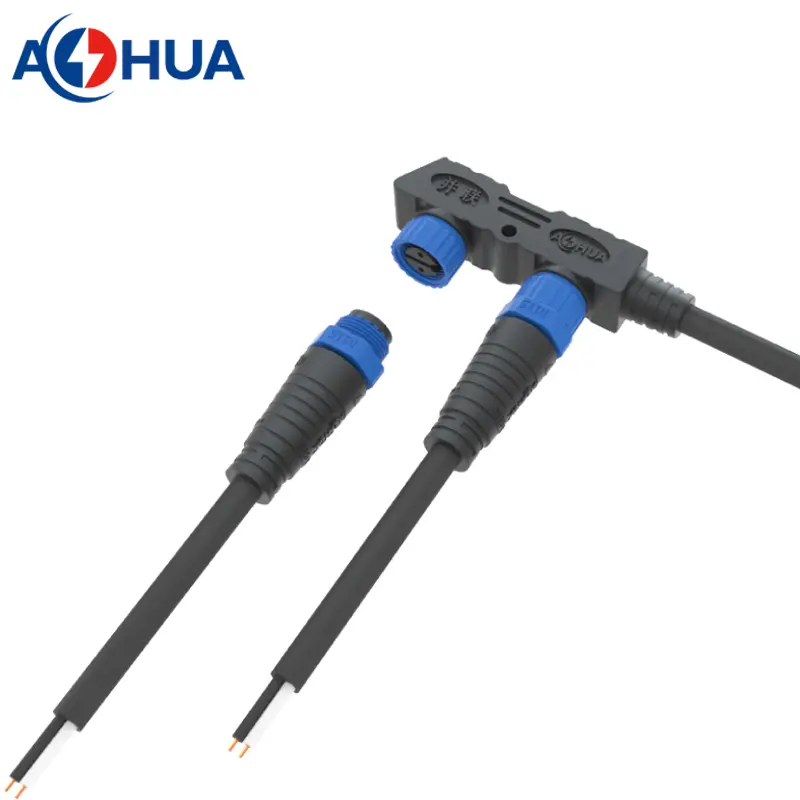

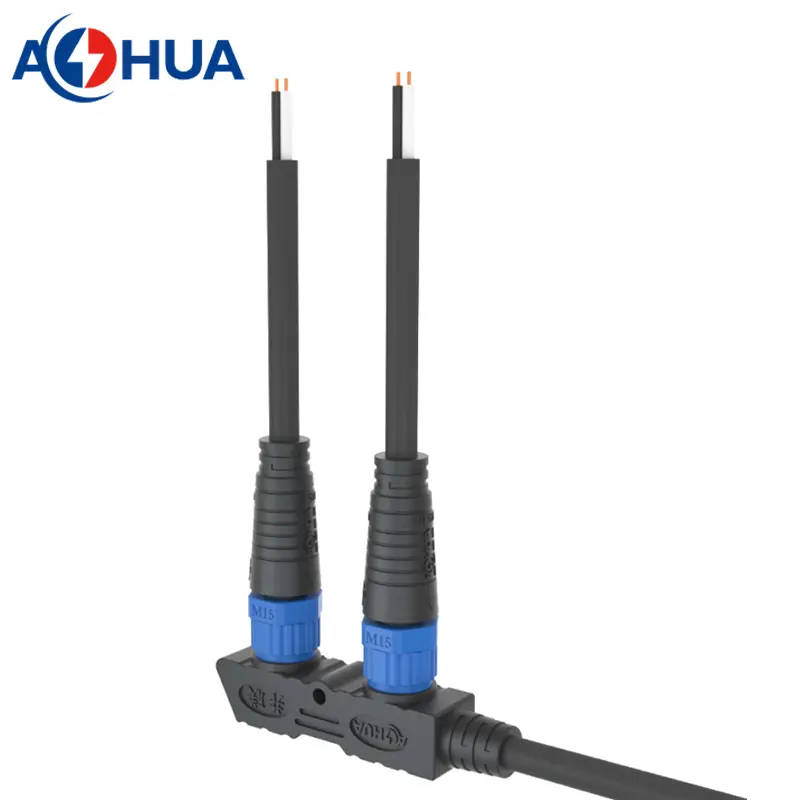

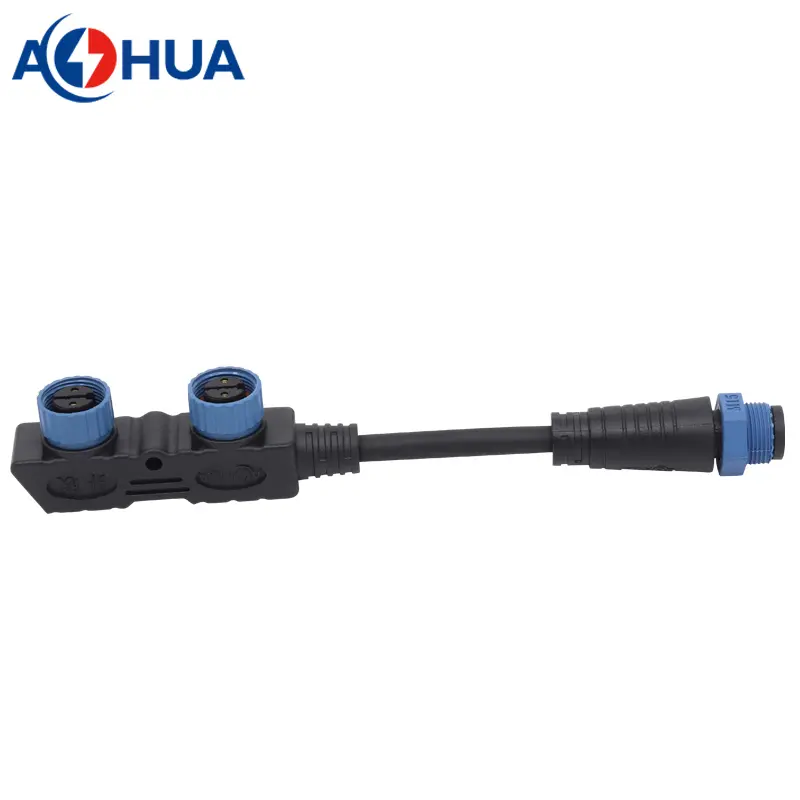

1 to 2 M15 LED street light module standard male female cable splitter
1 to 2 M15 LED street light module standard male female cable splitter
P/N: AH-M15-1002MFO2P112/AH-M15-1002MFO2S112
Connector: Nylon
Cable: Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS /UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

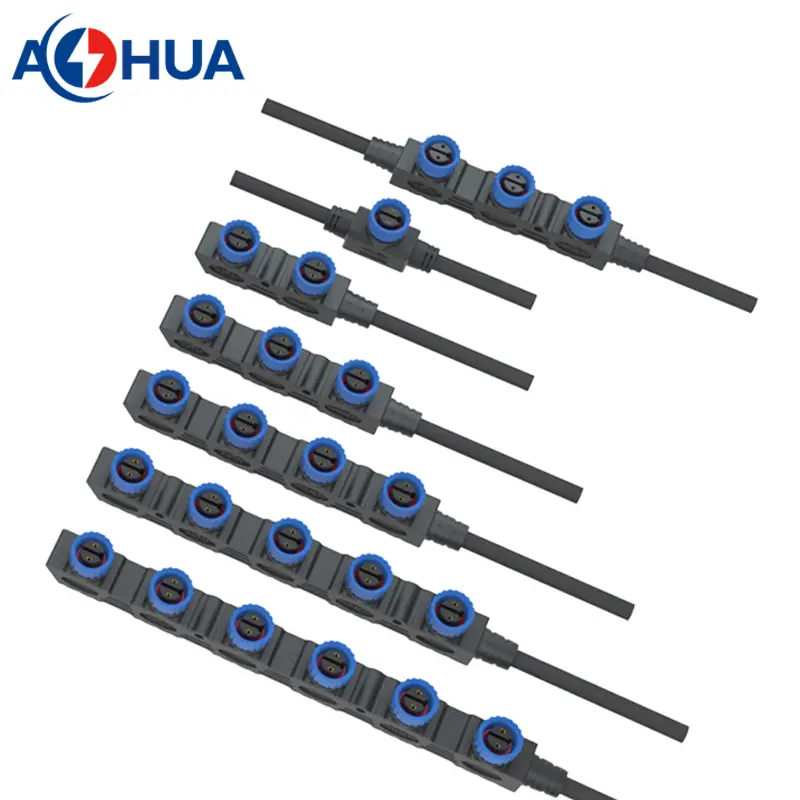

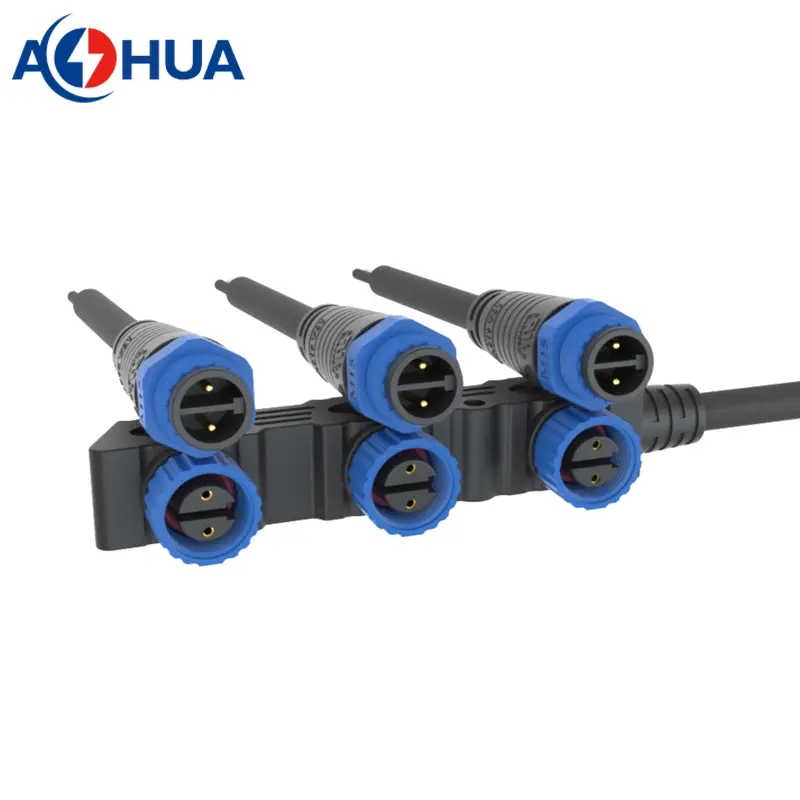

M15 Distributor Waterproof Connector

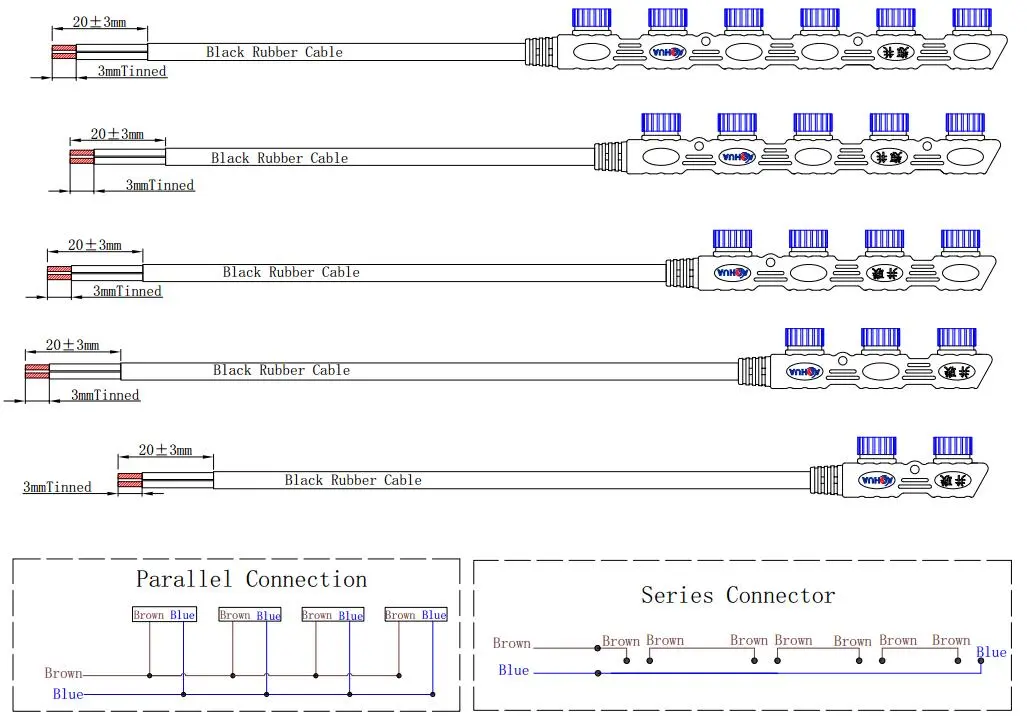

| Socket | Parallel | Series |
| 1 to 2 | AH-M15-1002MFO2P112 | AH-M15-1002MFO2S112 |
| 1 to 3 | AH-M15-1002MFO3P112 | AH-M15-1002MFO3S112 |
| 1 to 4 | AH-M15-1002MFO4P112 | AH-M15-1002MFO4S112 |
| 1 to 5 | AH-M15-1002MFO5P112 | AH-M15-1002MFO5S112 |
| 1 to 6 | AH-M15-1002MFO6P112 | AH-M15-1002MFO6S112 |
| Voltage Rating | 300V |
| Current Rating | 10A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 6.8mm-9mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
