LED Driver Battery Control System 2pin M16 Front Panel Mount Male to Inline Female Waterproof Plug And Sockets
LED Driver Battery Control System 2pin M16 Front Panel Mount Male to Inline Female Waterproof Plug And Sockets
Model: M16
Male: AH-M16-1002FMF01112
Female: AH-M16-1002MFZ01112
Contacts: 2pin
Rated Voltage: 300V
Rated Current: 10A
Wire Gauge: ≤1.0mm²
Cable OD: 3-7.5mm
Plastic Material: PA66
Conductor: gold plated brass
Mechanical Life: 3000mating cycles
Operating Temperature: -40℃~+105℃
Certificate: CE/ROHS/UL
Waterproof Grade: IP68
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

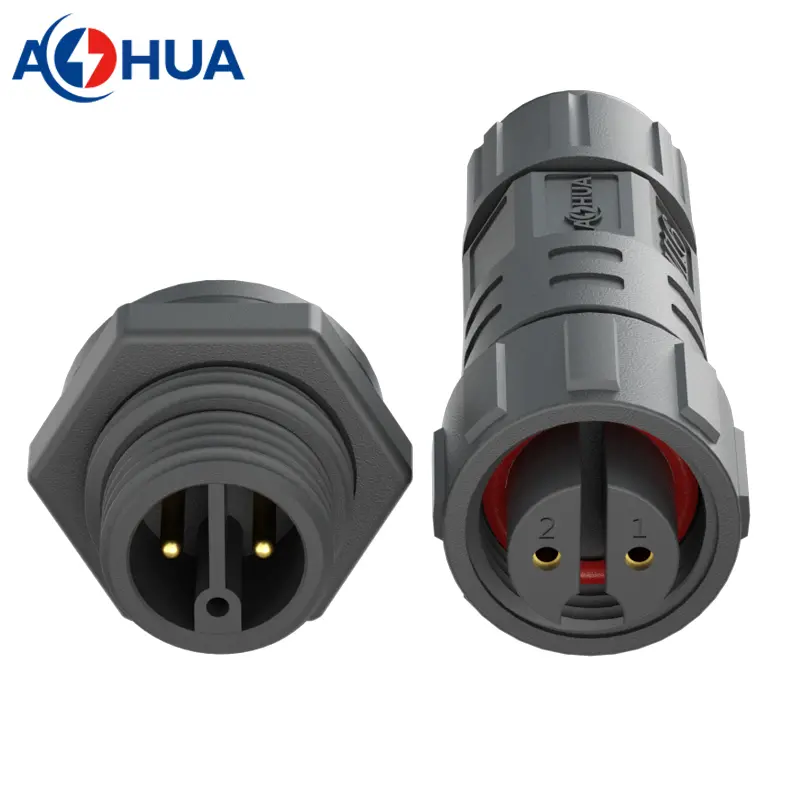

2pin M16 Front Panel Mount Male to Inline Female Waterproof Plug And Sockets
Part Number:
Male: AH-M16-1002FMF01112
Female: AH-M16-1002MFZ01112
| Model | 2pin |
| Contacts | 2pin |
| Rated Voltage | 300V |
| Rated Current | 10A |
| PIN Diameter | φ1.5mm |
| Wire Gauge | ≤1.0mm² |
| Cable OD | 3-7.5mm |
| Mechanical Life | 3000 mating cycles |

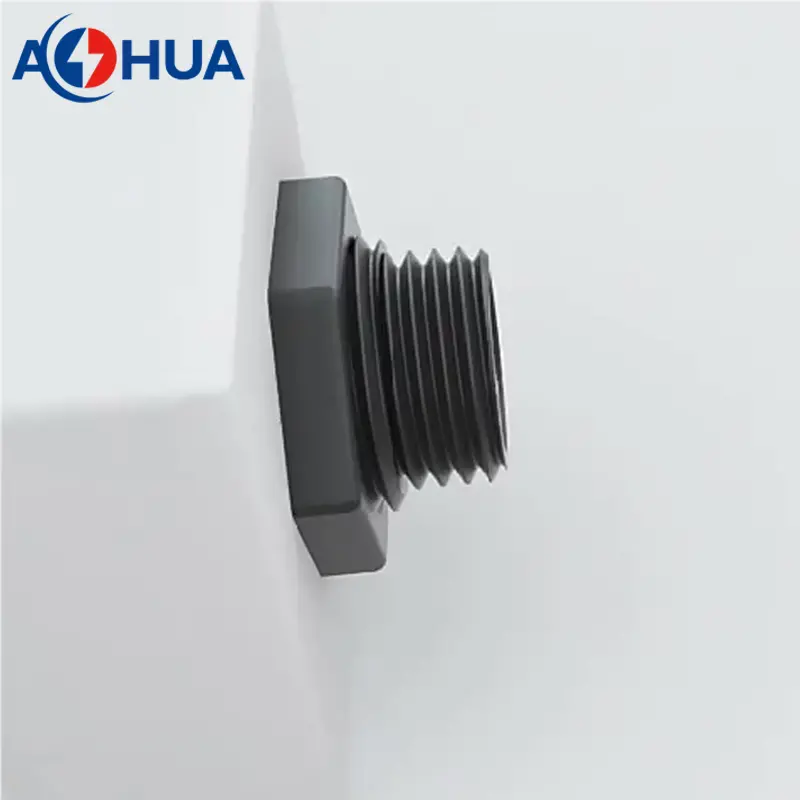

| Please specify the connector type such as male panel type or female panel type, front panel mount or rear panel type. | This is front panel type connector. The hex nut is in front of the box, which is screwing the nut outside the box. |
 |
 |

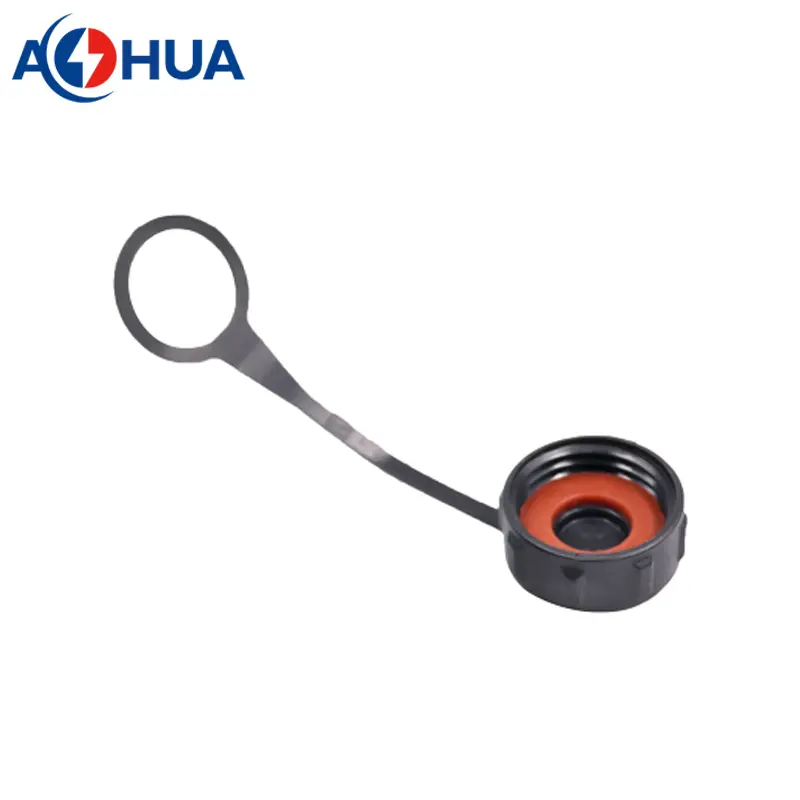

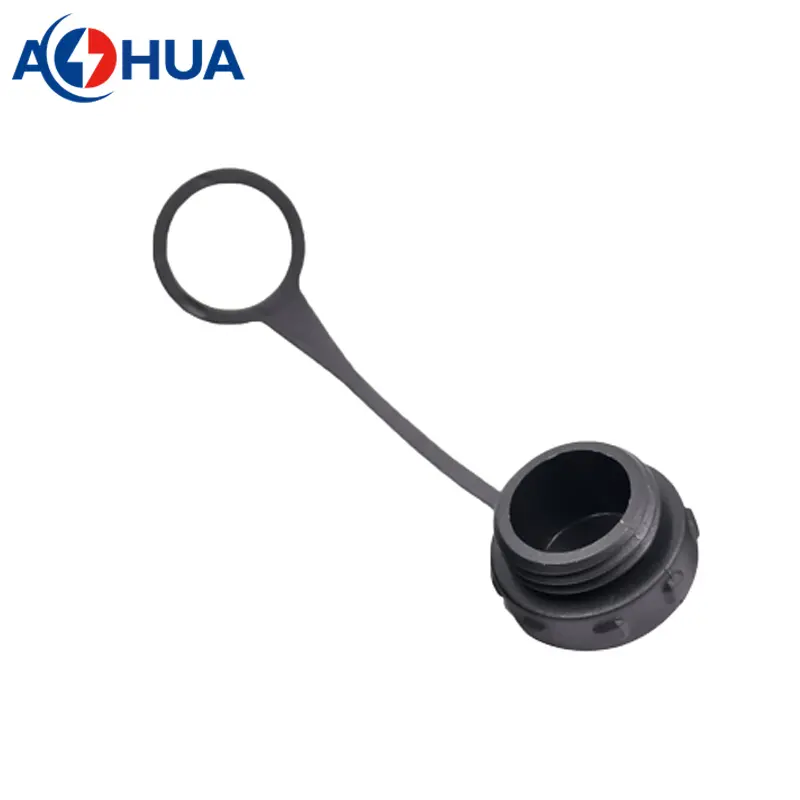

- There are dust caps for male and female connector to protect from dust and water. You need to specify whether you need dust caps or not when order.
| AH-M16-CAP-M | AH-M16-CAP-F |
 |
 |
