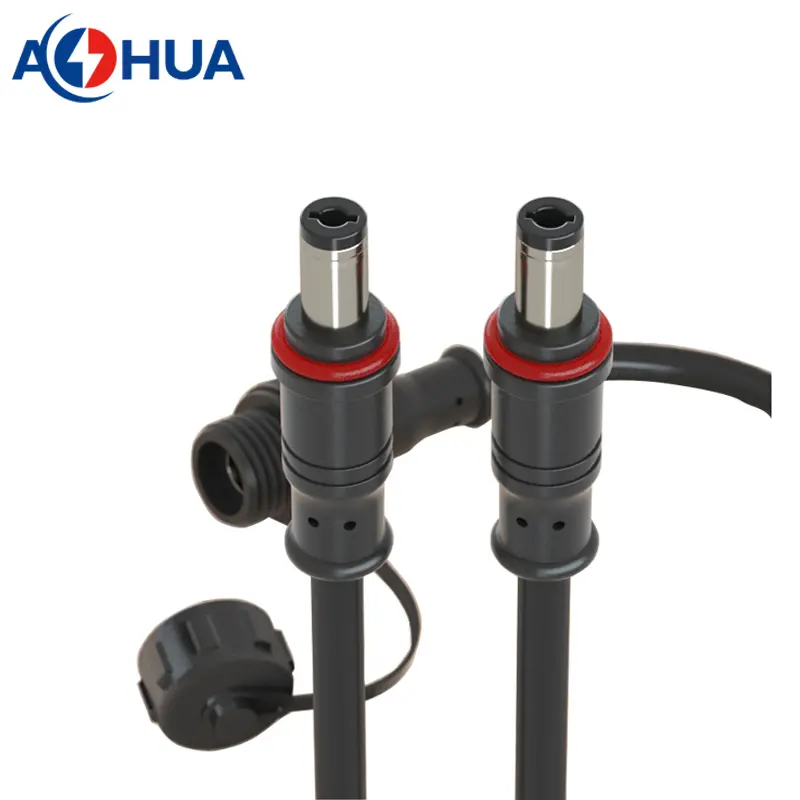

Customize panel type waterproof 2.1mm 2.5mm waterproof DC connector
Customize panel type waterproof 2.1mm 2.5mm waterproof DC connector
P/N: AH-M12-0402MFD01111/AH-M12-0402FMD01111
Connector: PVC
DC metal: 5.5*2.1 or 5.5*2.5mm
Cable: PVC
Color: Black/White

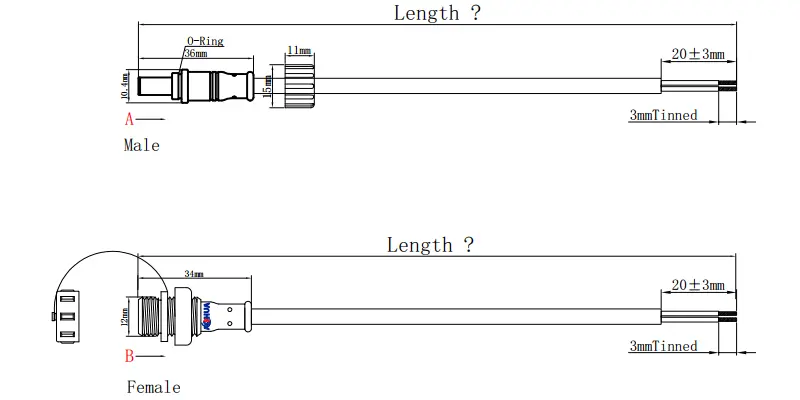

Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

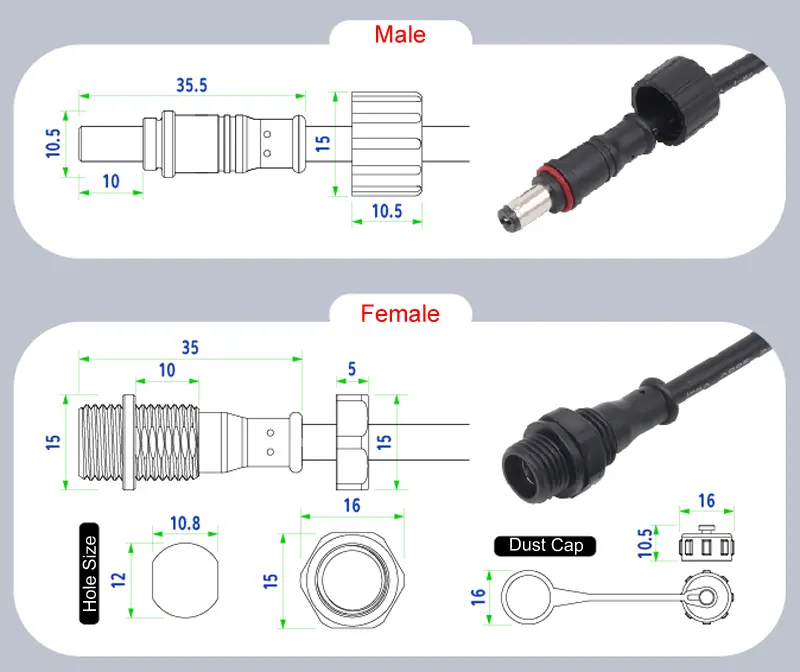

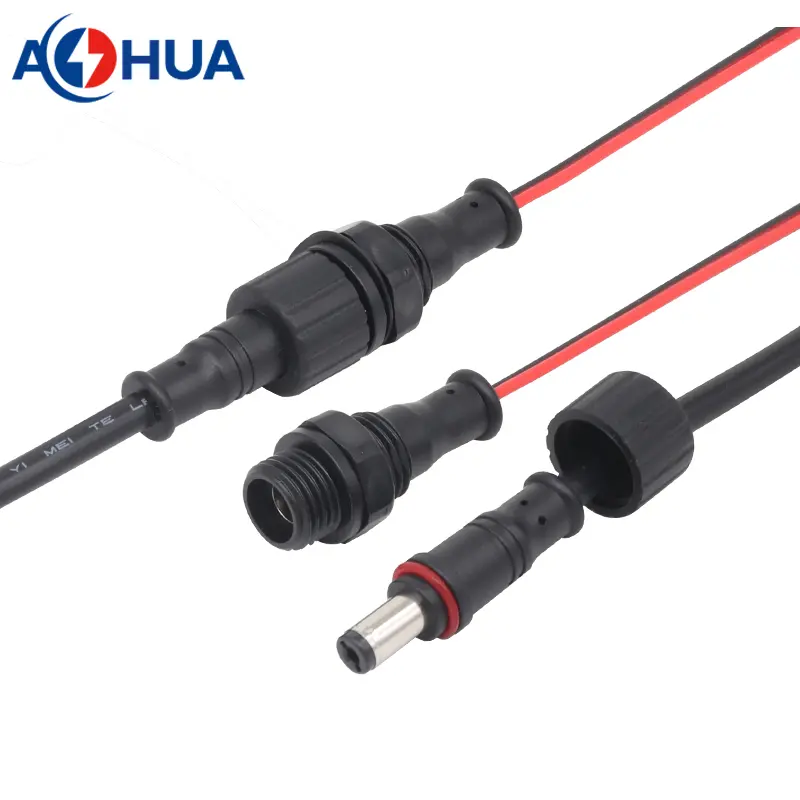

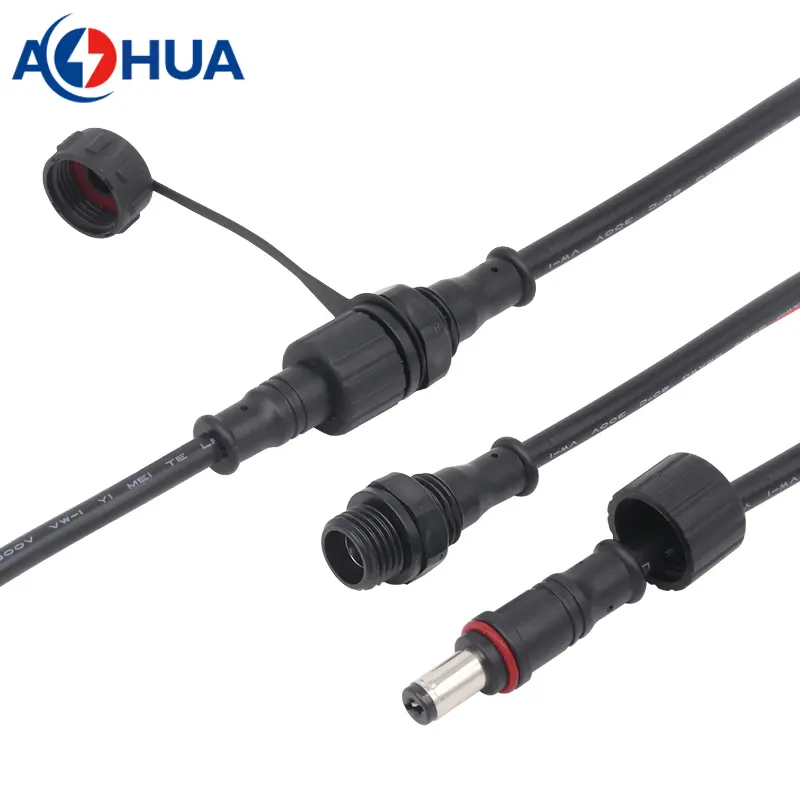

M12 Panel Type Waterproof DC Connector
| Contacts | 2pin |
| Part Number |
AH-M12-0402MFD01111 AH-M12-0402FMD01111 |
| Voltage Rating | 60V |
| Current Rating | 5A |
| Wire Gauge | ≤0.5mm² |
| Cable OD | 3.5mm-5.5mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| DC Metal Size | 5.5*2.1 or 5.5*2.5 |
