1 To 3 DC Jack Bare Extension Cable Male Female Quick Plug Unplug 5.5*2.1 Connector For LED Panel Lights

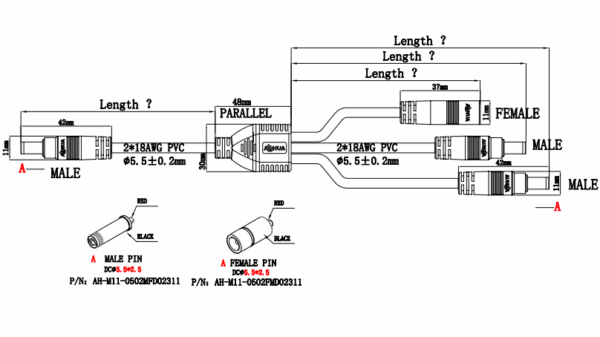

This is quick connect and disconnect male female dc connector. Here mainly introduce the DC connector solution. The basic connector a pair dc connector and a splitter, it can be design into different types of solution. Such as: one male to multi-cables, one female to multi-cables, and the multi-cables can be male or female or bare wire end, surely the input also can be open wire end. This solution was designed for a Germany clients who design the horticulture lighting for garden bench cable.

Basic specifications

1. Model: M11
2. Plastic: PVC
3. Conductor: copper terminal
4. Voltage Rated: 60V
5. Current Rated: 5A
6. Wire Size: 18/20/22/24AWG for options
7. Cable OD: 3-5.5mm
8. DC metal diameter: 5.5*2.1 or 5.5*2.5mm
9. Cable: PVC or specified
10. Cable Length: customize as required

How to design and manufacture the cable solution with DC jack connector?

We would like to learn about your products or you can provide a design drawing, or tell us with your dream. Our team will design the cable solution to fit your requirements.

What we want to know about:

1. connector type;
2. solution: it will be great thanks if you can provide a sketch that will be easy for us to understand what you need;
3. working ampere, wire gauge, cable length, connection type and so on;
4. what exactly is this solution to be applied? Then we can recommend better connector or solution;

Advantage of AOHUA teams

1. Design & Manufacture
2. Cable Making Team
3. Mold Manufacture Team
4. Plastic Injection Team
5. Assembly & Testing Team

From raw material to ready-sales products, we can finish all in AOHUA factory.

Quality is our culture, we also provide the shortest delivery time. Quality is the foundation, while efficiency is the currency.
