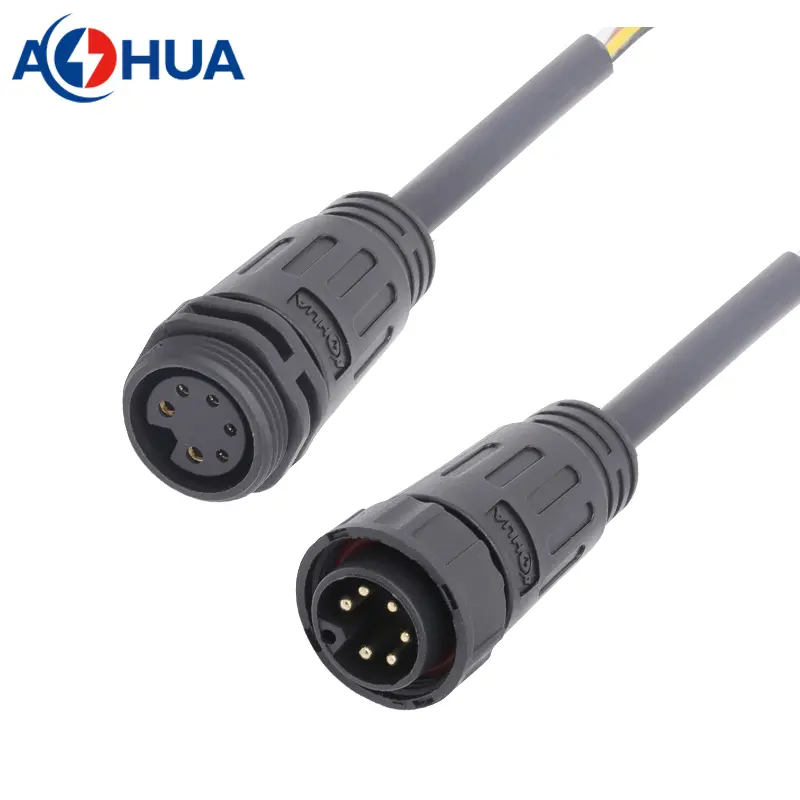

2+4pin M20 injection male female cable connector
2+4pin M20 injection male female cable connector

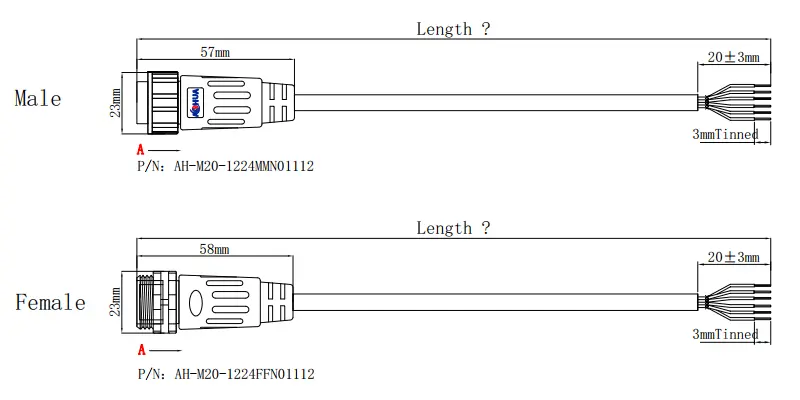

P/N: AH-M20-1224MMN01112/AH-M20-1224FFN01112
Connector: Nylon
Cable: PVC/ Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
2+4pin M20 waterproof connector
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2+4 | AH-M20-1224MMN01112/AH-M20-1224FFN01112 | ≤1.5mm² ≤0.3mm² | 60V | 12+2A |
| Cable OD | 6mm-12mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
