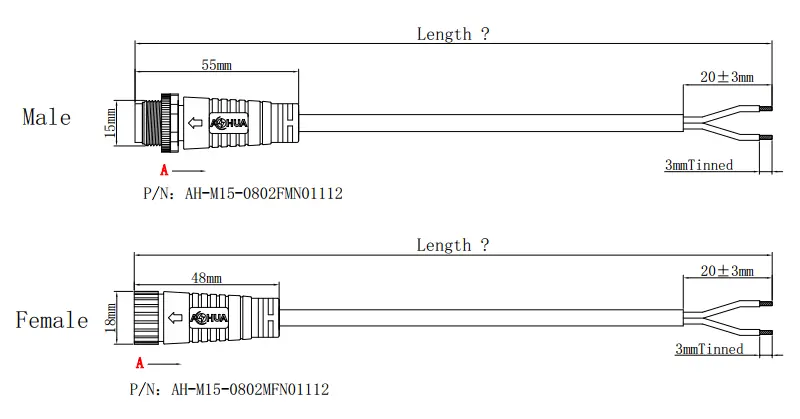

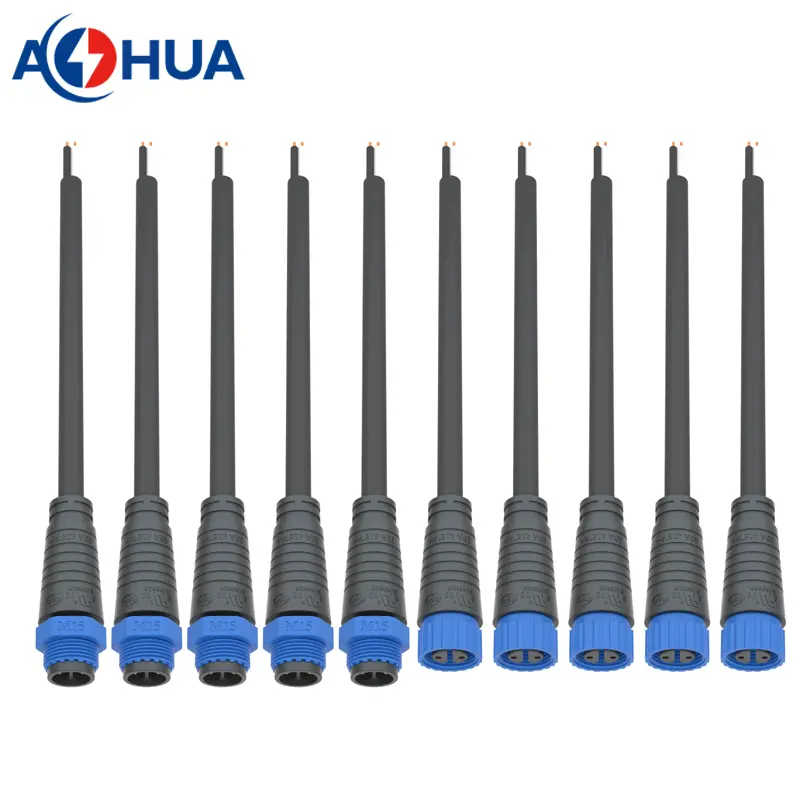

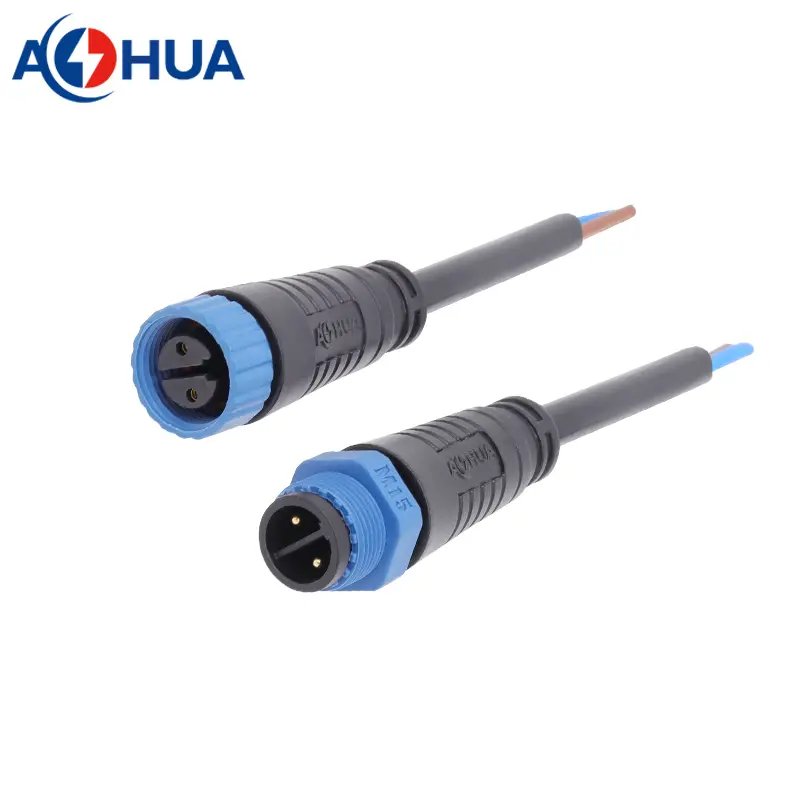

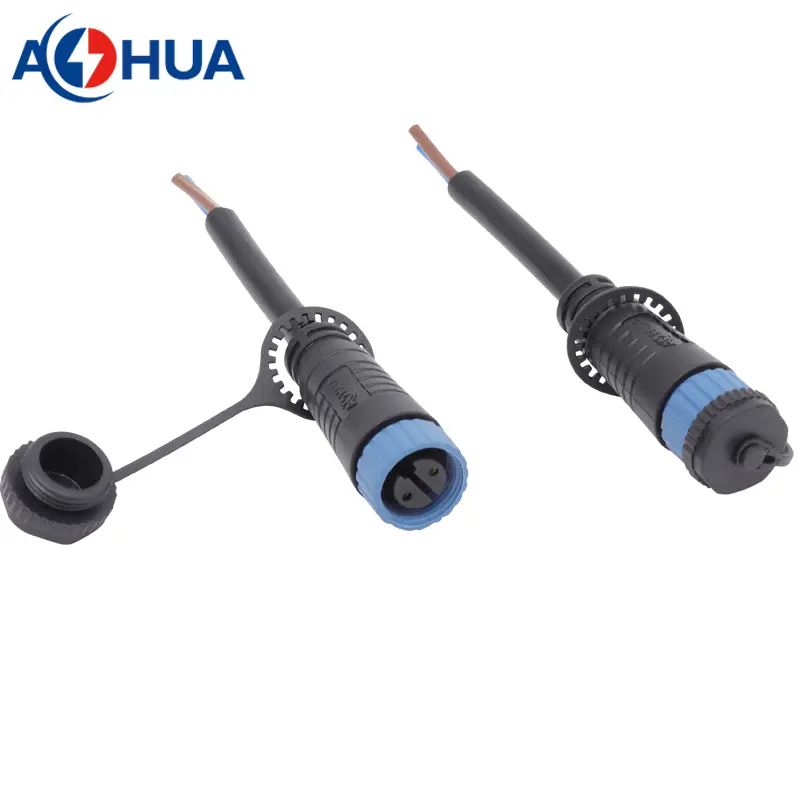

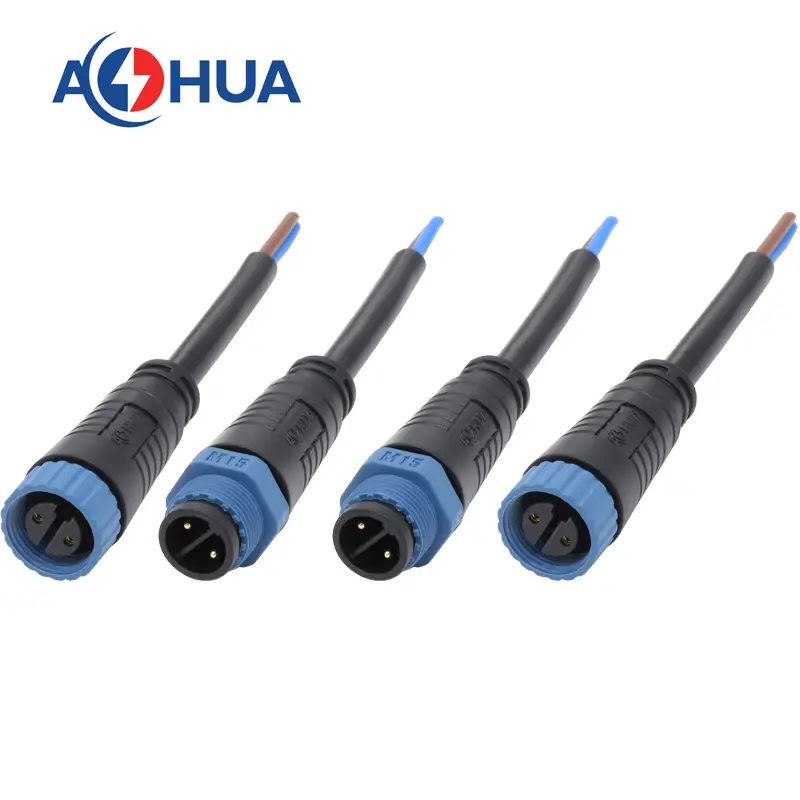

2pin M15 standard male female cable connector
2pin M15 standard male female cable connector
P/N: AH-M15-0802FMN01112/AH-M15-0802MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M15 Male Female Waterproof Connector
2PIN Standard Waterproof Plug
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M15-0802FMN01112/AH-M15-0802MFN01112 | ≤1.5mm² | 300V | 8A |
| Cable OD | 3.5mm-8.8mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105 |
| Waterproof Level | IP67 |
| Wire Gauge | AWG | mm² |
| 2pin |
2*14AWG 2*16AWG 2*18AWG 2*20AWG |
2*1.5mm² 2*1.0mm² 2*0.75mm² 2*0.5mm² |
UL certified wire size: 2*14AWG OD8.8±0.2mm; 2*16AWG OD7.9±0.2mm. Black Rubber cable.
