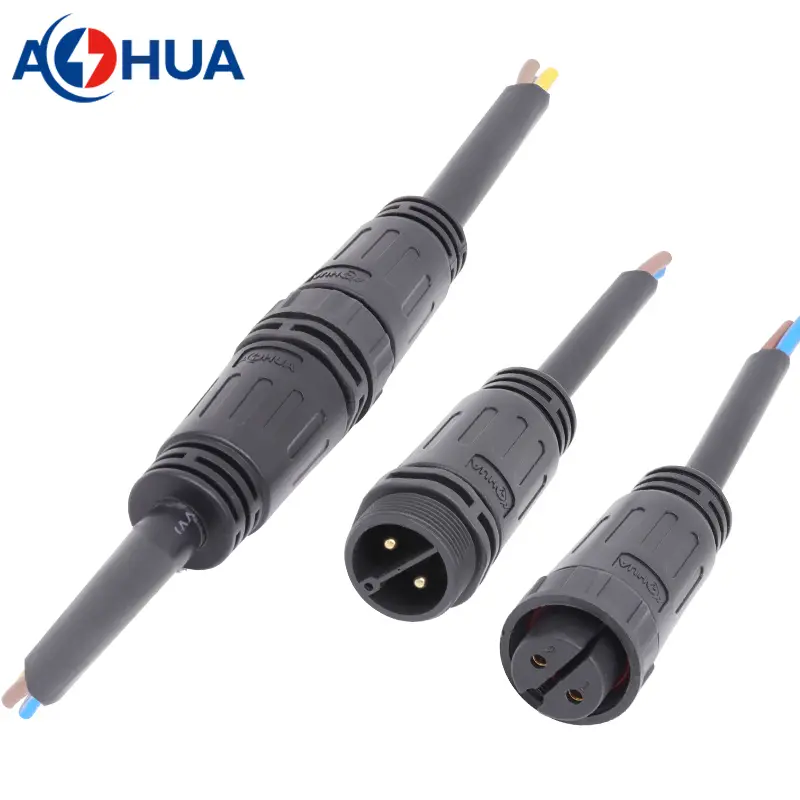

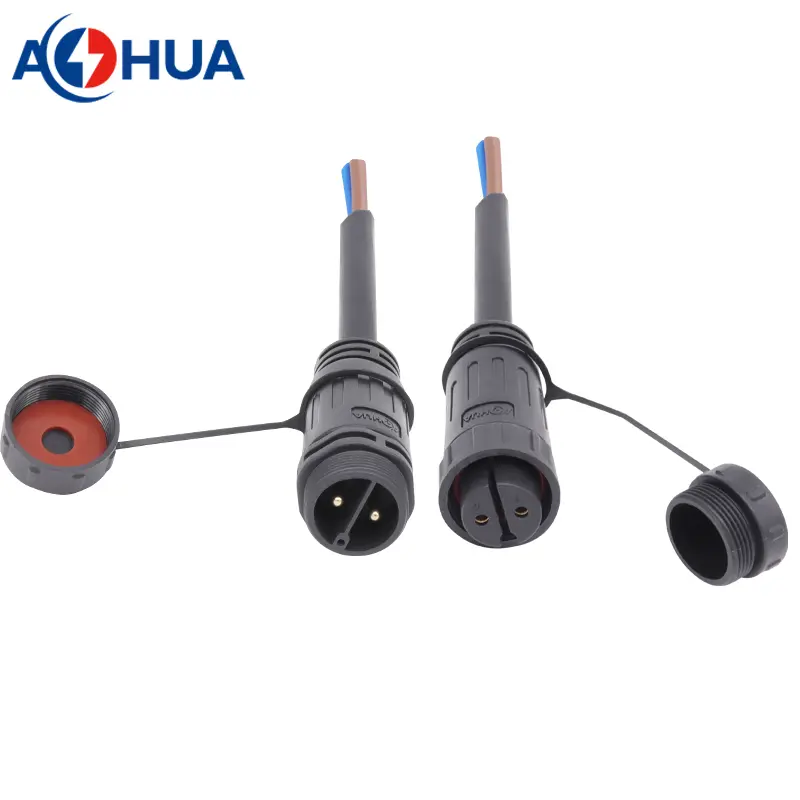

2pin M25 Waterproof Connector
2pin M25 Waterproof Connector

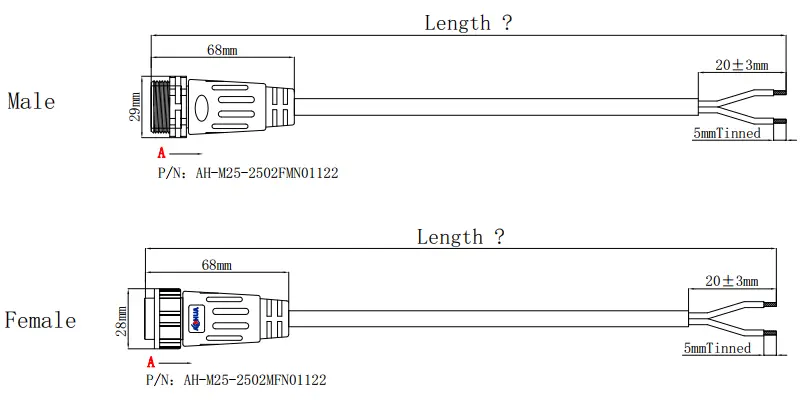

P/N: AH-M25-2502FMN01122/AH-M25-2502MFN01122
Connector: Nylon
Cable: PVC/ Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M25 waterproof connector 2pin
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M25-2502FMN01122/AH-M25-2502MFN01122 | ≤2.5mm² | 300V | 25A |
| Cable OD | 8mm-12mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
UL certified wire size:
| SJOW | 2*12AWG/OD10.6mm ；3*12AWG/OD11.2mm |
