2pin Screw Fixing Mini M12 Male Female Waterproof Assembly Plug Socket Connector 5A
2pin Screw Fixing Mini M12 Male Female Waterproof Assembly Plug Socket Connector 5A
- Model: M12
- Connector Type: inline, assembly;
- Connection Type: screw fixing type;
- Docking Type: male to female screw locking;
- Contacts: 2pin
- Plastic: PA66
- Conductor: gold plated copper
- Voltage Rated: 300V
- Current Rated: 5A
- Wire Size: ≤1.0mm²
- Cable OD: 2.6-7.5mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
2pin Screw Fixing Mini M12 Male Female Waterproof Assembly Plug Socket Connector 5A
2-Pin M12 Connector Set: Rugged, Waterproof, and Easy-to-Wire for Industrial Applications
This 2-pin M12 Male and Female connector set is designed for reliable and secure electrical connections in demanding environments. Featuring a robust screw-fixing termination method and an IP68 rated waterproof housing, this connector is an ideal solution for sensors, actuators, small motors, and other industrial automation equipment requiring a compact yet durable interface. Rated for 5A, it ensures stable power transmission for a wide range of low-power devices.
Key Features & Benefits:

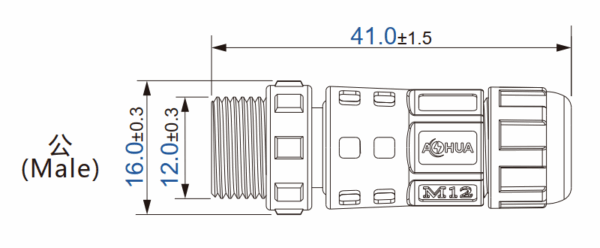

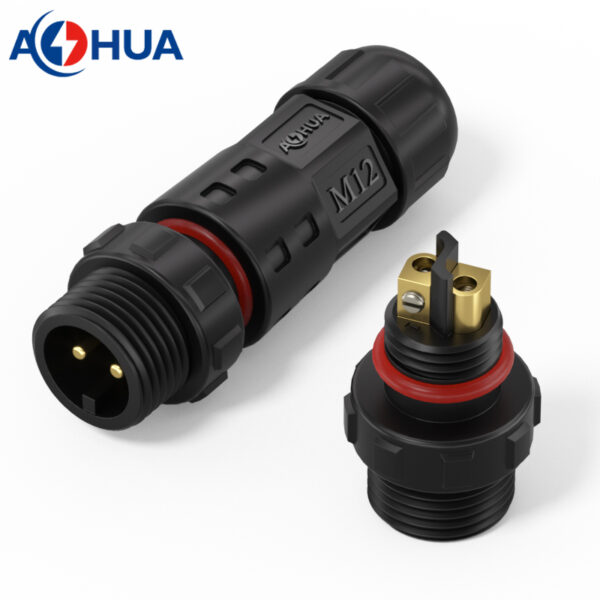

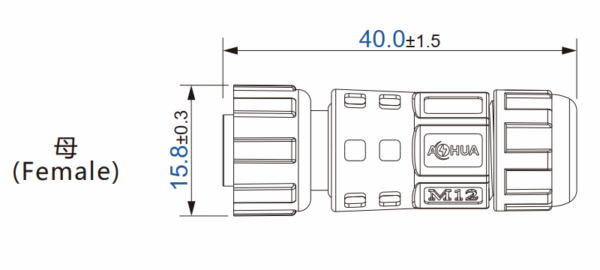

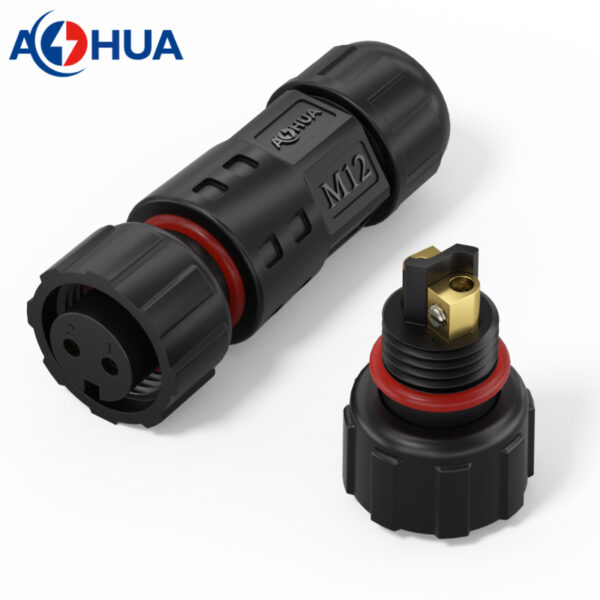

- Secure Screw Fixing Termination: Unlike solder or push-in styles, the screw-clamp terminals provide a strong, vibration-resistant connection that is easy to assemble with standard tools, reducing installation time and ensuring long-term reliability.
- Excellent IP68 Waterproof & Dustproof Rating: The high-quality sealing rings and robust housing protect the connection from dust, oils, and low-pressure water jets. This makes it perfectly suited for use in wash-down areas, outdoor equipment, and harsh industrial settings.
- Compact M12 Form Factor: The mini M12 size saves valuable space in control cabinets and on machinery, allowing for high-density connections without compromising on performance.
- Rugged Construction: The connector body is typically made from durable PA66 (Nylon) or similar engineering plastic, offering high resistance to impact, chemicals, and abrasion. The metal nickel-plated brass contacts ensure excellent conductivity and corrosion resistance.

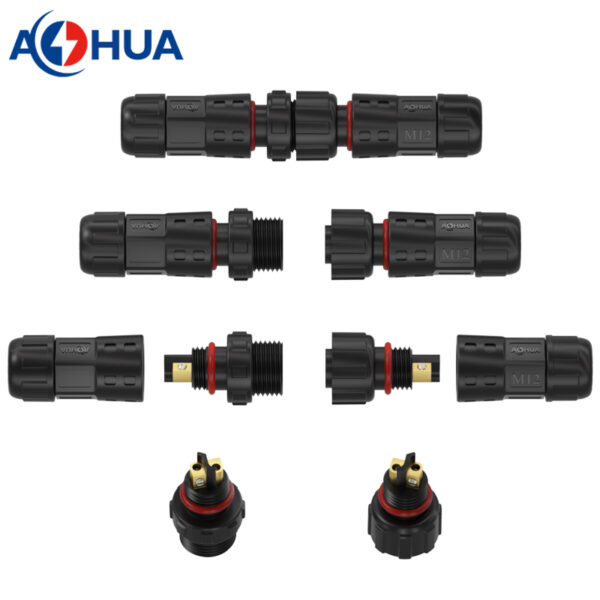

- Easy “In-Field” Assembly: The plug and socket are designed as assembly units, meaning you can wire them directly on-site without needing pre-molded cables. This offers maximum flexibility for custom cable lengths and last-minute installations.
- Clear Polarity Coding: The 2-pin design with a keyed coupling system prevents incorrect mating, ensuring a safe and foolproof connection every time.
Technical Specifications:
- Gender: Male Plug and Female Socket (Set)
- Pin Count: 2 Pins
- Current Rating: 5 Amps
- Voltage Rating: Typically 250V AC/DC
- Connection Method: Screw Clamp Terminals
- IP Rating: IP68(Waterproof and Dust-tight)
- Coupling Type: M12 x 1 Threaded
- Housing Material: PA66 (Nylon), UL94 V-0
- Contact Material: Brass, Nickel Plated
- Cable Entry: Typically for 2.6-7.5mm diameter cable
Common Applications:
This versatile connector is widely used across various industries for:
Industrial Sensors (Proximity, Photoelectric, Pressure)
Factory Automation & Robotics
PLC I/O Box Connections
Packaging Machinery
Low-Power Actuators and Small Motors
LED Lighting Systems
Agricultural and Mobile Machinery
Ordering Information:

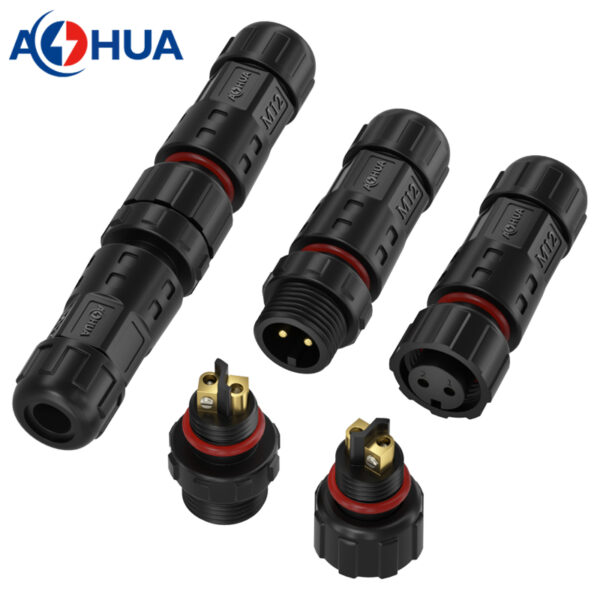

This product is sold as a matched set, including one Male Plug and one Female Socket, along with the necessary sealing gaskets and locking nuts for a complete waterproof assembly.
Ensure reliable performance and simplify your wiring with this high-quality, industrial-grade M12 connector set.
