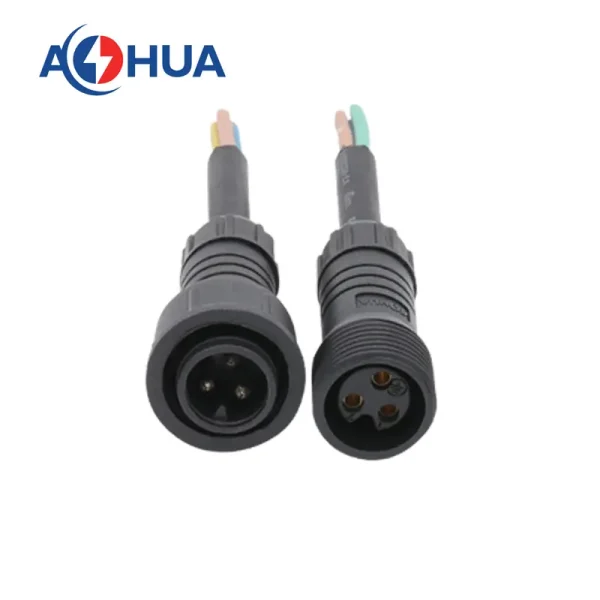

3 pin M19-02 Male Female Waterproof Plug
3 pin M19-02 Male Female Waterproof Plug

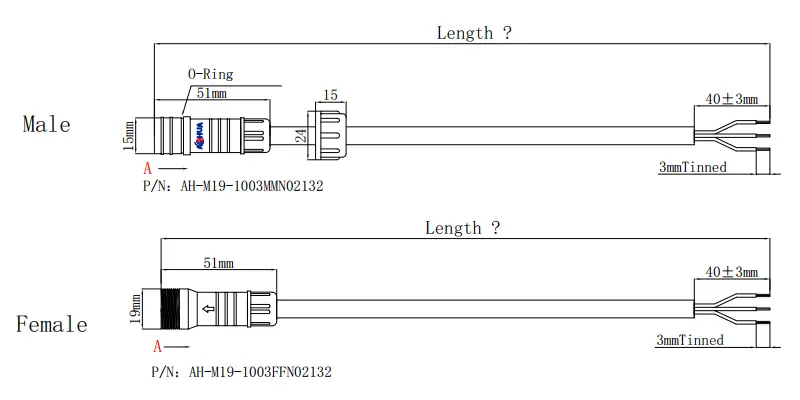

P/N: AH-M19-1003MMN02132/AH-M19-1003FFN02132
Connector: Nylon
Cable: PVC/Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M19-02 Waterproof Connector 3pin
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M19-1003MMN02132/AH-M19-1003FFN02132 | ≤1.5mm² | 300V | 10A |
| Cable OD | 6.0mm-8.3mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
