3pin 25A M25 Front Panel Male To Inline Female Screw Lugs Male Female Waterproof Electric Connector
3pin 25A M25 Front Panel Male To Inline Female Screw Lugs Male Female Waterproof Electric Connector
-
Model: M25
-
Male: AH-M25-2503FMF02122
-
Female: AH-M25-2503MFZ02122
-
Contacts: 3pin
-
Rated Voltage: 300V
-
Rated Current: 25A
-
Wire Gauge: ≤2.5mm²
-
Cable OD: 6-12mm
-
Plastic Material: PA66
-
Conductor: gold plated brass
-
Mechanical Life: 3000 mating cycles
-
Operating Temperture: -40℃~+105℃
-
Certificate: CE/ROHS
-
Waterproof Grade: IP68
-
Shipping Port: Shenzhen China
-
Payment Terms: T/T bank, Paypal
Share to:

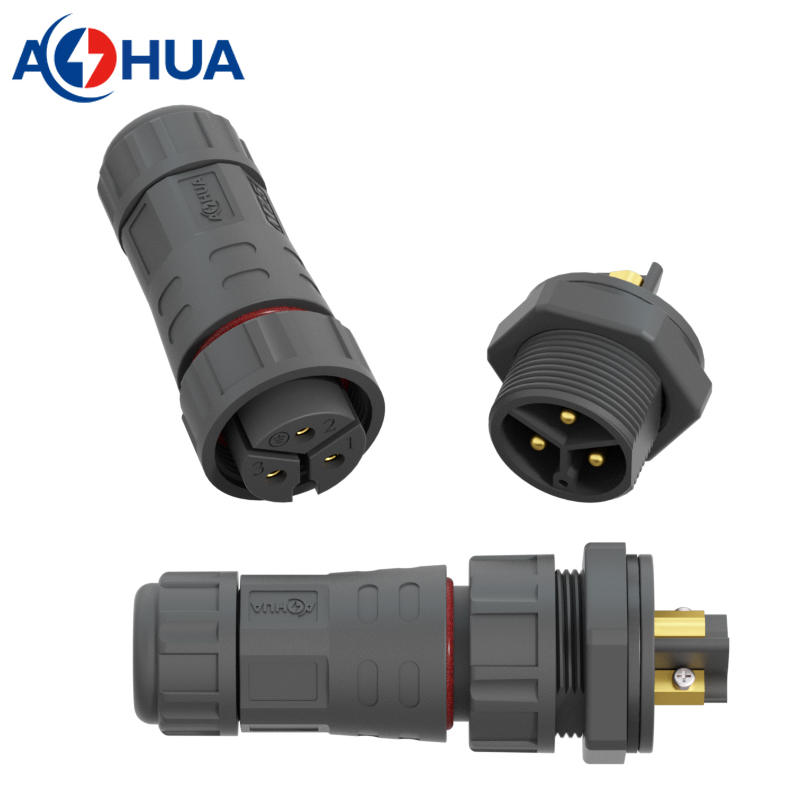

3pin 25A M25 Front Panel Male To Inline Female Screw Lugs Male Female Waterproof Electric Connector

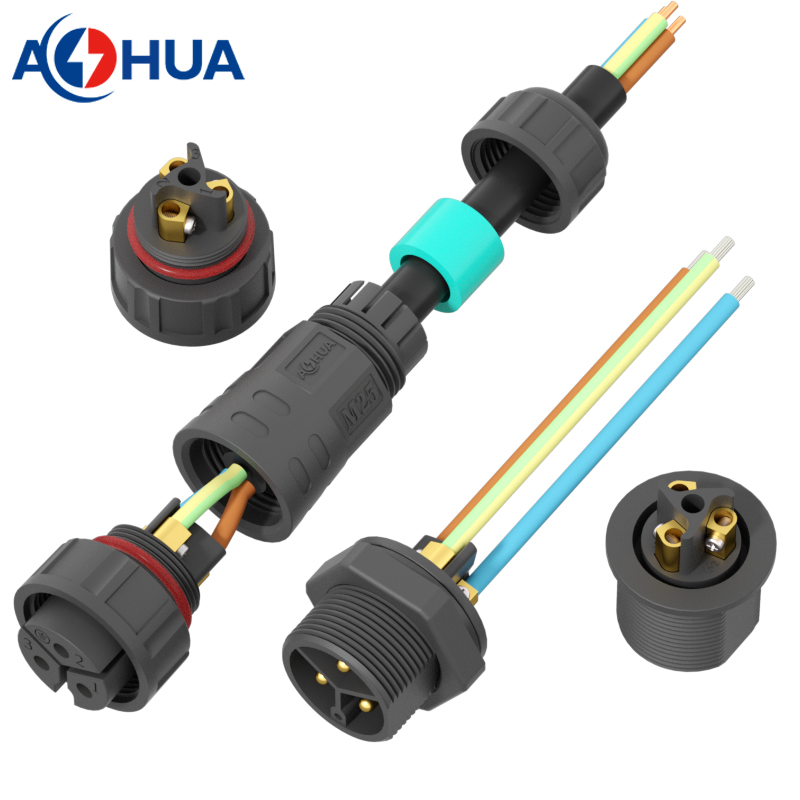

This is panel mount type waterproof electric connector for junction box wiring operating.

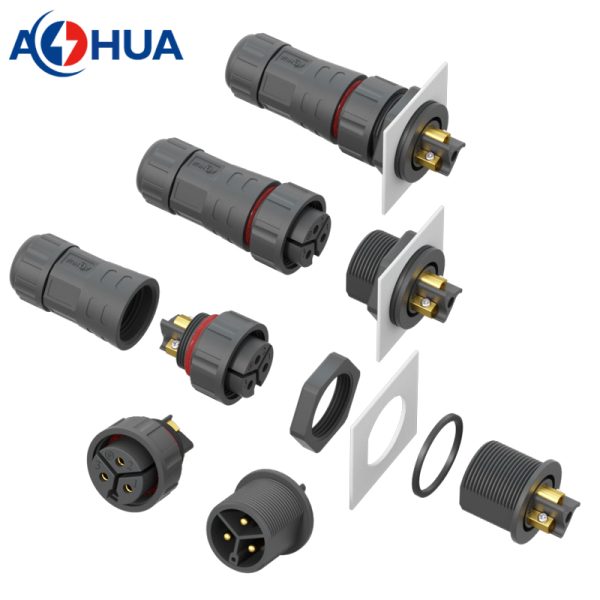

This is irregular screw lugs for wiring operating.Male: front panel mountFemale: inline typeConponents: waterproof nut, cable gland, enclosure, O-ring, coupling nut, connector core, hex-nut, gasket.
|
 |
Model |
M25 |
Pin |
φ3.0mm |
Wire Gauge |
2.5mm²/2.0mm² or 14AWG/12AWG |
AH-M25-CAP-F |
AH-M25-CAP-M |
 |
 |
