3pin F Type Distributor Solution Male Female IP68 Waterproof LED Driver Power Connector
3pin F Type Distributor Solution Male Female IP68 Waterproof LED Driver Power Connector
- Model: M20
- Contacts: 3pin
- Rated Voltage: 110V
- Rated Current: 5A
- Wire Gauge: ≤1.5mm²
- Cable OD: 6.8-10mm
- Plastic Material: PA66
- Conductor Material: gold plated brass
- Cable Material: PVC or Rubber
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
3pin F Type Distributor Solution Male Female IP68 Waterproof LED Driver Power Connector

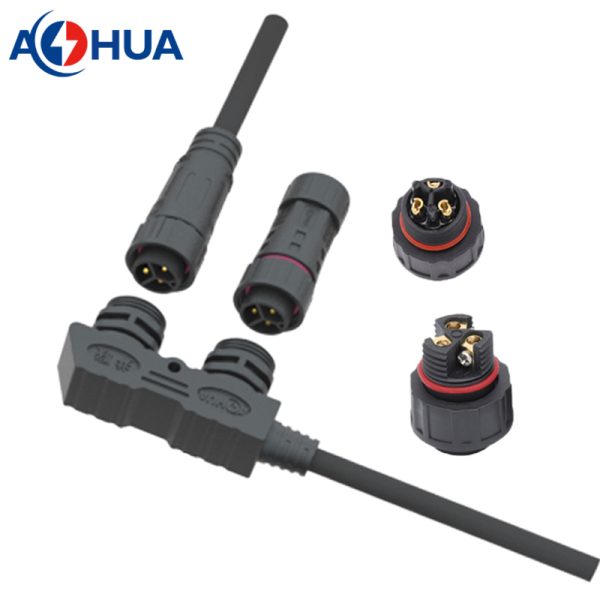

This is 3pin F type distributor cable solution, which is customized on different wire gauge and cable length from different clients.

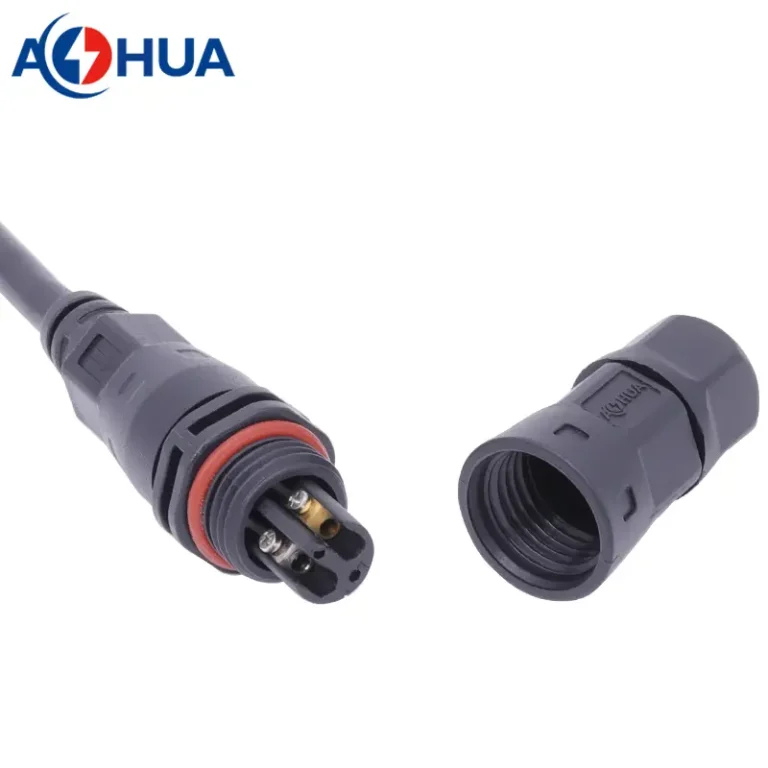

- Model: M20—it is M20 thread male to female connector;
- Plastic material: PA66—nylon material will ensure the high strength and high quality.
- Conductor maaterial: gold plated brass—ensure higher electrical properties.
- Cable material: PVC or rubber— Rubber cable will be better for outdoor environment.

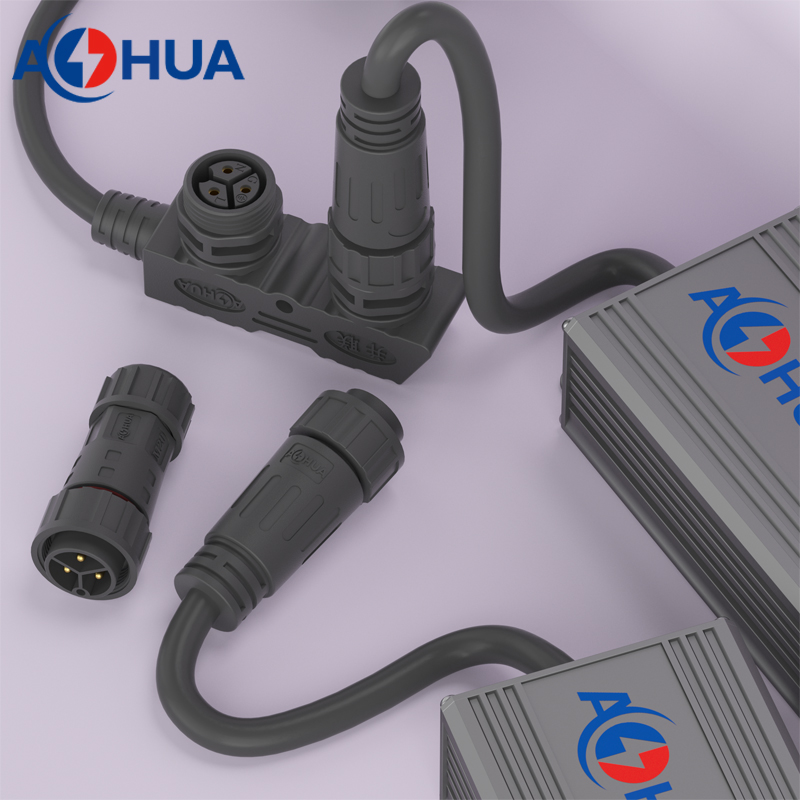

| The high quality product is the PCB designed into the splitter. Our splitter have a PCB inside to ensure the connector conductor better connection.

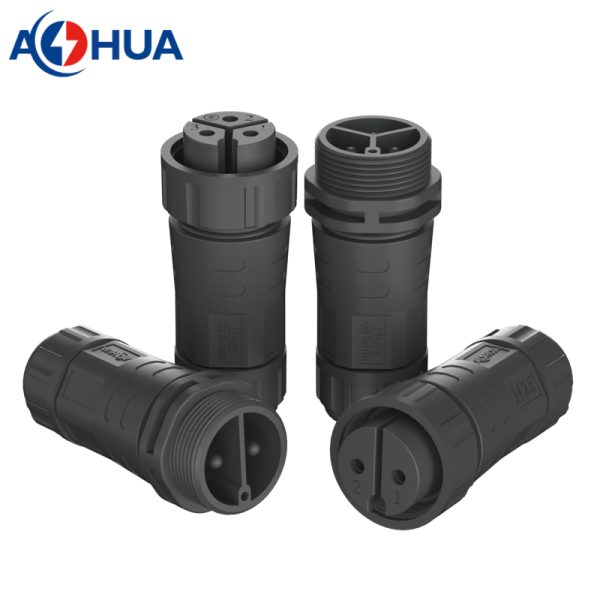

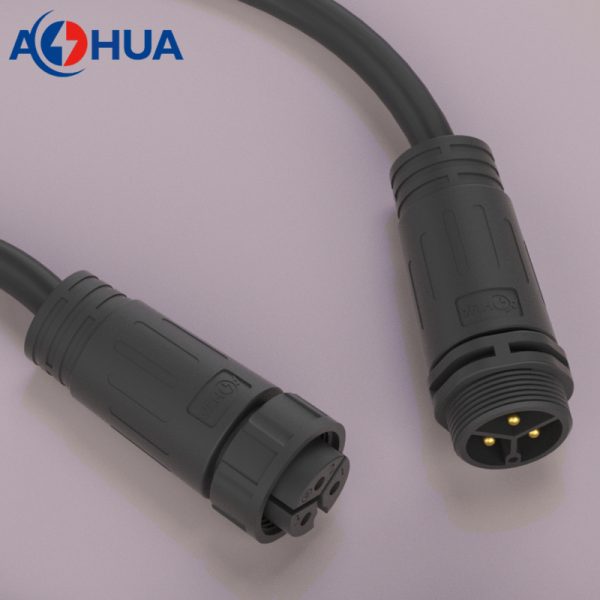

And there are assembly type and molding type male connector to match with female socket.
|
 |
 |
 |
| 3pin socket | Parallel |
| 2out | AH-M20-0503FFO2P112 |
| 3out | AH-M20-0503FFO3P112 |
| 4out | AH-M20-0503FFO4P112 |
| Contacts | 3pin |
| Rated Voltage | 110V |
| Rated Current | 5A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 6-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67 / IP68 |
How to customize?The cable solution is customized according to different requirement, so before order, please specify your detail requirements, and please provide the information below:

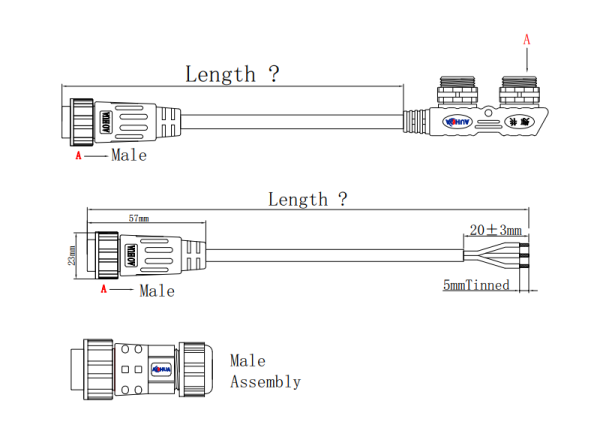

It will be much appreciated if you can provide the simple drawing, then our team will get back to you with CAD drawing for your approval, and then start sample making, mass production following. |
 |
| Waterproof LED driver power connectors are essential components in modern lighting systems, ensuring reliable and secure connections in various environments. From outdoor installations to wet industrial settings, these connectors provide protection against water ingress, enabling the seamless operation of LED drivers and enhancing the overall longevity of the lighting system. Waterproof Grade IP68: Uncompromising Protection: LED driver power connectors with a waterproof grade of IP68 are designed to withstand the harshest conditions. This grade guarantees complete protection against dust and immersion in water up to a specified depth. With an IP68 rating, the connectors are tightly sealed, preventing water infiltration and ensuring the safety and durability of the components they connect. Reliable Connections for Outdoor Lighting: Outdoor lighting applications, such as landscape illumination, street lighting, and architectural lighting, require connectors that can withstand the rigors of exposure to the elements. Waterproof LED driver power connectors provide a secure and reliable connection in outdoor environments, safeguarding the internal components of the lighting system from moisture, rain, and other environmental hazards. Even in extreme weather conditions, these connectors maintain consistent power transmission, enabling uninterrupted lighting performance. Industrial Applications: Protection in Wet Environments: In industrial settings where water and moisture are prevalent, such as factories, warehouses, and processing plants, reliable electrical connections are of paramount importance. Waterproof LED driver power connectors with an IP68 rating provide a robust solution for these environments. They guarantee the protection of LED drivers against water ingress, preventing potential short circuits and electrical hazards. This level of waterproofing ensures the smooth operation of industrial lighting systems, reducing downtime, and enhancing workplace safety. Installation Flexibility and Ease of Use: Waterproof LED driver power connectors are designed with user convenience in mind. They often come with intuitive plug-and-play functionality, allowing for easy and hassle-free installation. These connectors can be used for both panel mount and cable mount applications, providing flexibility in system design and installation. Their compact size and durable construction make them suitable for use in tight spaces or areas with restricted access, ensuring a streamlined and efficient installation process. Waterproof LED driver power connectors with an IP68 rating play a crucial role in maintaining the reliability and longevity of lighting systems across various applications. By safeguarding against water ingress, these connectors ensure continuous power transmission, protect components from potential damage, and enable the efficient function of LED drivers in demanding environments. In summary, investing in high-quality waterproof LED driver power connectors is a prudent choice for achieving reliable and safe lighting installations, whether for outdoor applications or industrial environments |
