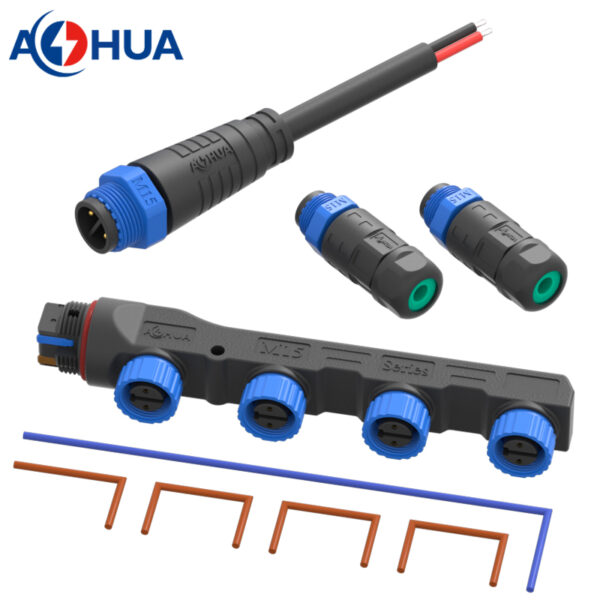

4Way 10A 2pin Push Wire Male Female Assembly Over Molding IP68 Waterproof Splitter Distributor Connector M15

This is new designing distributor type waterproof connector. This 4Way M15 Splitter Distributor Connector is an industrial-grade solution for creating secure, multi-point electrical connections in demanding environments. Designed with a robust over-molding process, the unit features a single male M15 threaded input that seamlessly splits into four independent female M15 outputs, each rated for 2-pin configurations.

Engineered for exceptional durability and reliability, it boasts an IP68 waterproof rating, ensuring complete protection against dust, dirt, and prolonged immersion in water. The innovative push-wire technology allows for quick, tool-free installation—simply strip the cable and insert it for a perfect, vibration-resistant connection capable of handling up to 10A per circuit.

Ideal for industrial machinery, agricultural equipment, outdoor lighting arrays, and automation systems, this connector simplifies wiring harnesses while providing a safe, organized, and entirely sealed power distribution point. Its male-female assembly ensures a secure, leak-proof seal at every junction, guaranteeing consistent performance.

• Highlights

1. Model: M15 –standard M15 screw threads;
2. Push wire locking: fast wire installation;
3. Branch socket: male to female–easy for plug and unplug;
4. Mating connector: assembly type or over molding type–two options for different requirements;

• Specifications

1. Contacts: 2pin
2. Plastic: PA66
3. Construction: PCB design
4. Conductor: gold plated copper
5. Voltage Rated: 300V
6. Current Rated: 10A
7. Wire Size: ≤1.5mm²
8. Cable OD: 5-10mm
9. Mechanical Life: 3000 mating cycles
10. Operating Temperature: -40℃~+105℃
11. Waterproof Grade: IP68

Wire Diagram

Parallel or Series
