5.5 x 2.1 mm DC Power Jack Panel Mount Male Female Barrel Waterproof Connector With Cover Cap
5.5 x 2.1 mm DC Power Jack Panel Mount Male Female Barrel Waterproof Connector With Cover Cap
- customize the cable solution as you required, please send detail request to Molly team.
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
5.5 x 2.1 mm DC Power Jack Panel Mount Male Female Barrel Waterproof Connector With Cover Cap

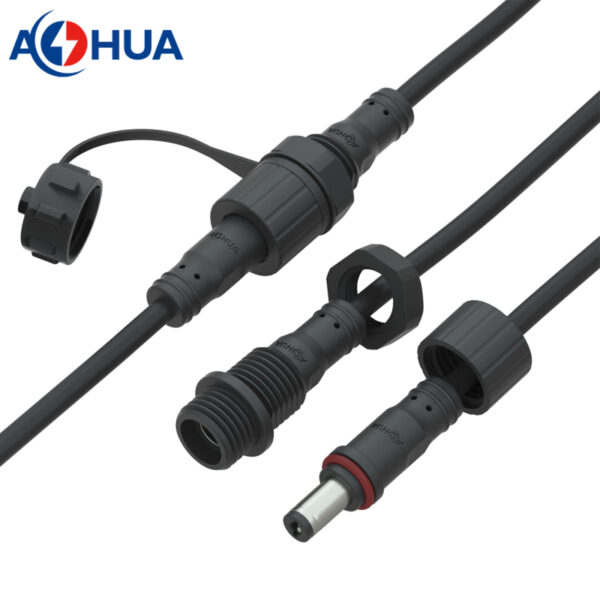

- This is panel mount type male to female waterproof DC connector with cover cap.
- The connector is molded with cable.
- Plastic: PVC
- Cable: PVC
- Cable Length: customized as required
- DC metal size: 5.5*2.1 or 5.5*2.5
Specificatiton
- Contacts: 2pin
- Voltage: 60V
- Current: 5A
- Wire Gauge: ≤0.75mm²
- Cable OD: 3-5.5mm
- Waterproof Grade: IP65
How to order?

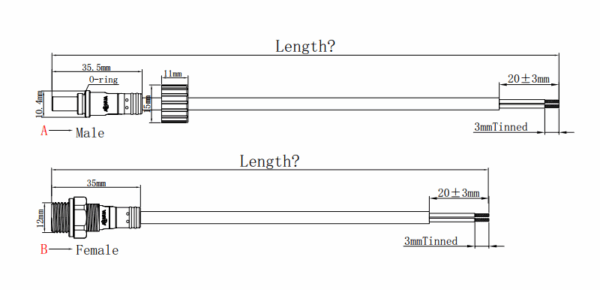

It would be great appreciated if you can provide a drawing with marking details. And we would like to know about your DC connector includes:
- working ampere;
- wire size and cable length;
- DC metal size;
- color or dust cap yes or not.
