Electrical Machinery Motor Signal Power Splitter Waterproof Connector 2pin 10A 1.0mm Wire

Here is the manufacturer AOHUA located in Shenzhen of China, we are a source of manufacturer with more than 18 years’ experience.

We are mainly focusing on the designing & manufacturing of waterproof connectors and cable wires processing.

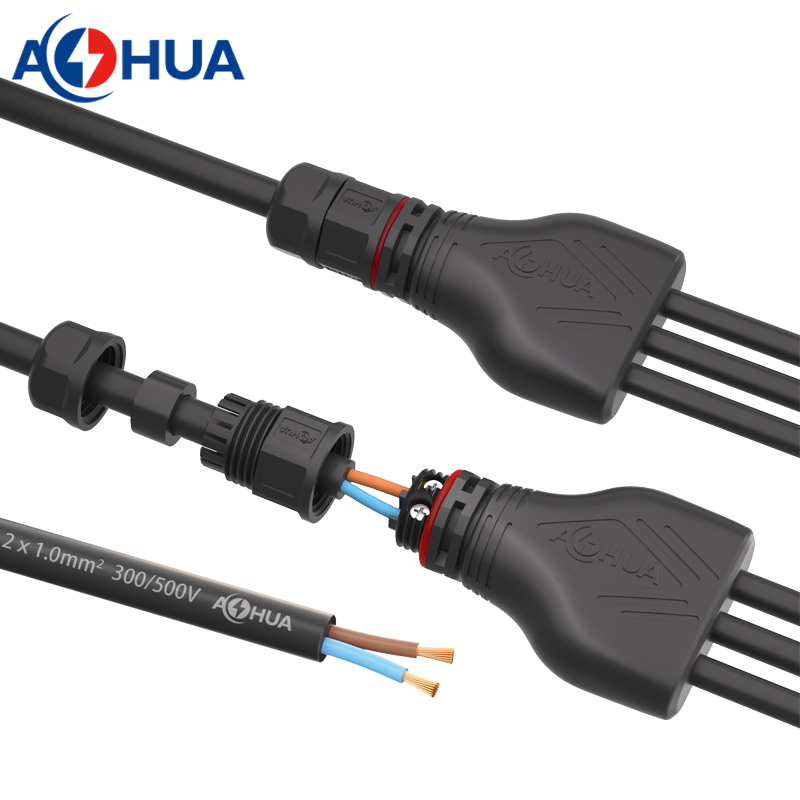

Here introduce the waterproof connector cable harness. This is the splitter in waterproof type. The input the screw fixing type terminal for power input, and the output have branch cables that is customized as required.

This model is very popular waterproof splitter in LED lighting industries. The connector carry up to 10A power and suitable daily electricity usage.

Highlights & Specifications

1. Plastic material:  PA66
2. Internal setup: PCB
3. Conductor: copper
4. Waterproof Grade: IP67
5. Contacts: 2pin
6. Voltage Rated: 250V
7. Working Ampere: 10A
8. Input wire: ≤1.5mm²
9. Output wire: ≤1.0mm²
10. Cable OD of input: 5-10mm

As a ODM OEM manufacturer, we can customize what you need. In this waterproof connector cable harness, we can design the branch cable molding with waterproof connector male/female as you need.

How to customize your own cable harness waterproof connector solution?

We have engineer team, so you just need to what you want to make. It will be great thanks if you can provide a simple drawing writing with power / wire details.

We want to know:

1. the number of branch cables
2. working ampere total and branch;
3. wire gauge and cable OD for input, wire gauge and cable length for branch cable;
4. is Parallel or Series?
5. the branch cable whether is molding with cable?
