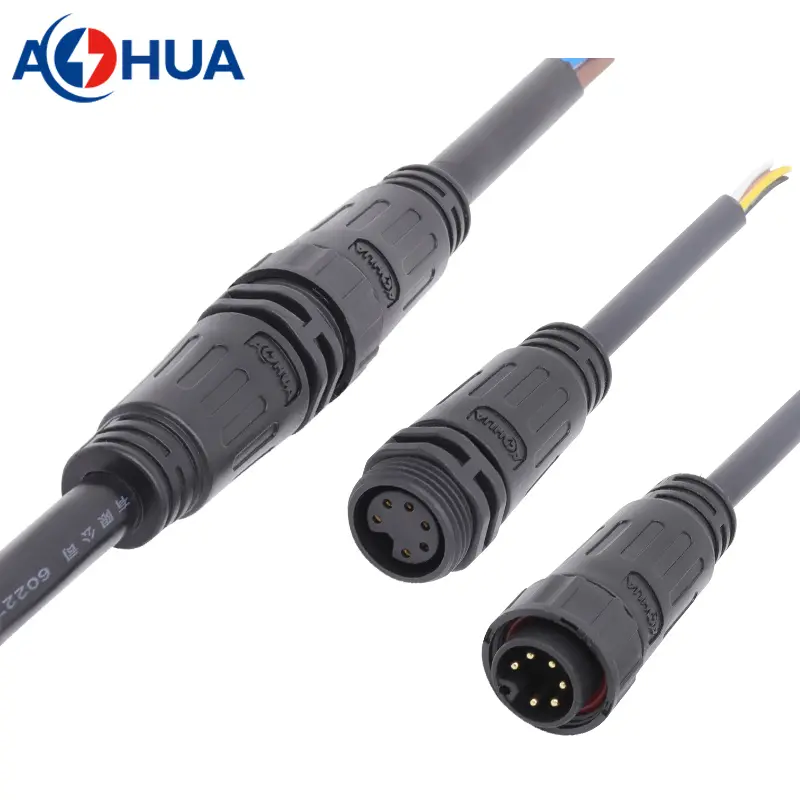

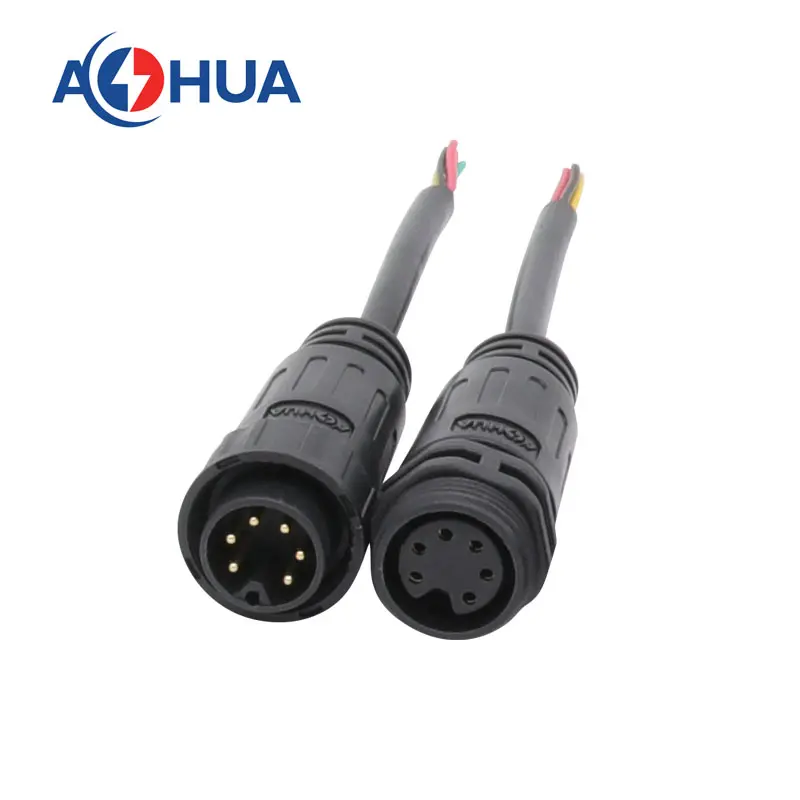

6pin M20 injection male female cable connector
6pin M20 injection male female cable connector
P/N: AH-M20-0406MMN01112/AH-M20-0406FFN01112
Connector: Nylon
Cable: PVC/ Rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

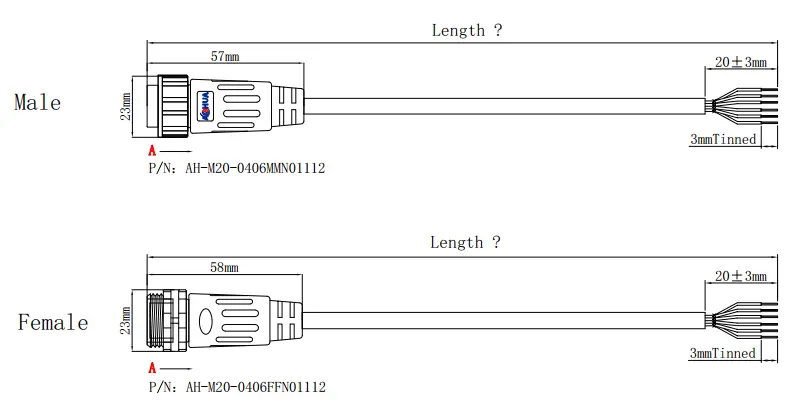

M20 waterproof connector 6pin
| PINs | Part Number | Wire Gague | Voltage | Current |
| 6 | AH-M20-0406MMN01112/AH-M20-0406FFN01112 | ≤0.5mm² | 110V | 4A |
| Cable OD | 6mm-12mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
