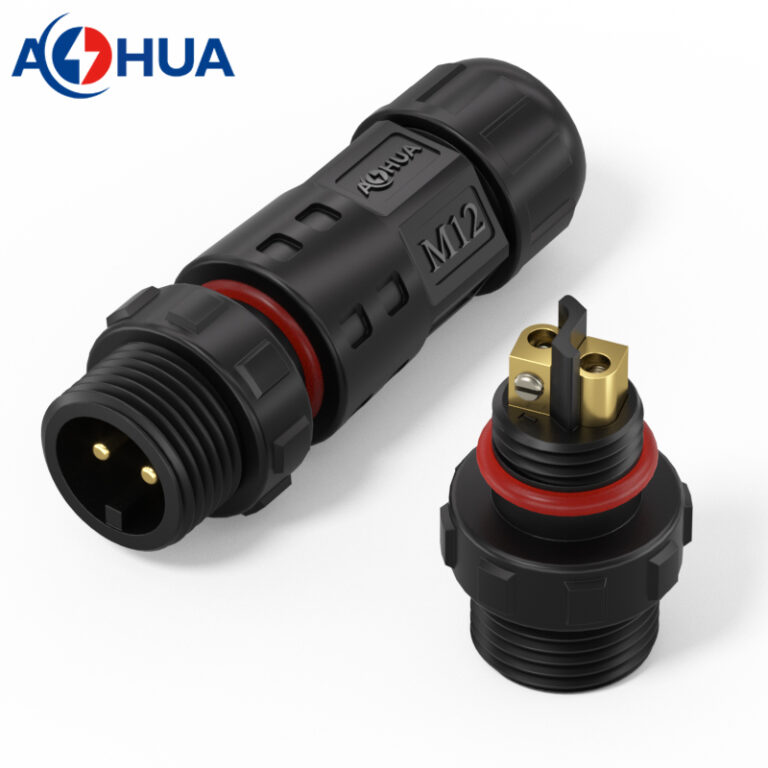

AH-M12-0502FMZ02122 2pin 5A M12 300V PA66 IP68 Assembly Screw Fixing Waterproof Connector
AH-M12-0502FMZ02122 2pin 5A M12 300V PA66 IP68 Assembly Screw Fixing Waterproof Connector
- screw fixing type M12 connector
- 2pin only
- Voltage: 300V
- Current: 5A
- Waterproof Grade: IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AH-M12-0502FMZ02122
2pin 5A M12 300V PA66 IP68 Assembly Screw Fixing Waterproof Connector
- Model: M12
- Gender: male
- Housing: PA66
- Conductor: gold plated copper
- Voltage Rated: 300V
- Current Rated: 5A
- Wire Size: 0.3/0.5/0.75mm²
- Cable OD: 3-7.5mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP68
Highlights
- Connector Type: inline, assembly
- Docking Type: screw threads
- Connection Type: screw fixing
