AH-M12-0502MFZ02122

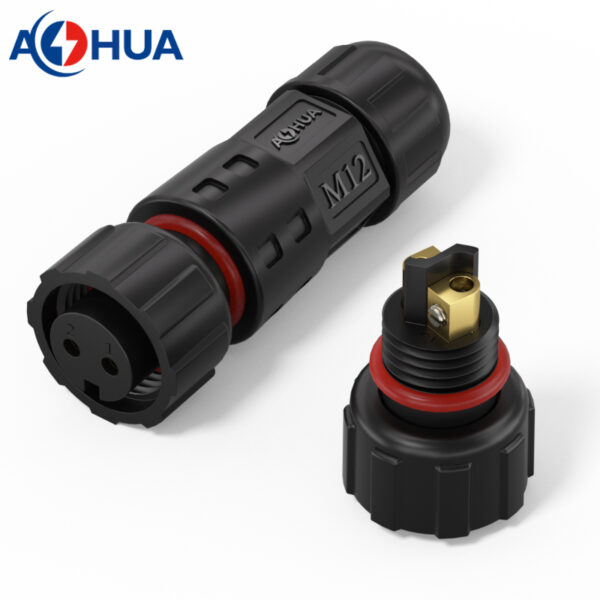

5A Female Socket M12 2pin Screw Fixing Waterproof IP68 Electrical Connector Plug

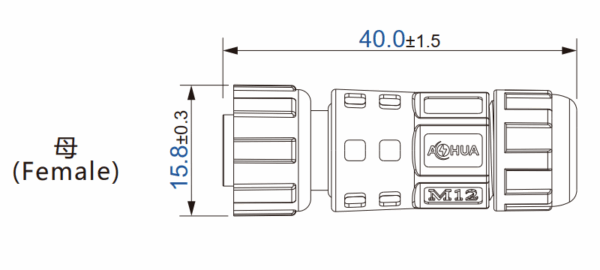

This is female side screw fixing M12 connector 2pin.

Highlights

• Connector Type: inline assembly
• Docking Type: male to female screw threads
• Connection Type: screw fixing type
• Plastic: PA66
• Conductor: gold plated copper

1. Model: M12
2. Contacts: 2pin
3. Voltage Rated: 300V
4. Current Rated: 5A
5. Wire Size: ＜1.0mm²
6. Cable OD: 3-7.5mm
7. Mechanical Life: 3000 mating cycles
8. Operating Temperature: -40℃~+105℃
9. Waterproof Grade: IP68

How to order?

1. confirm the connector type, such as male to female, inline type or panel type, assembly type or over molding type;
2. specify working ampere, wire gauge, cable OD, or cable length;
3. indicate the real application, such as where it use to or special environment;
4. quantity required, we are manufacturer, the better price for higher quantity.
