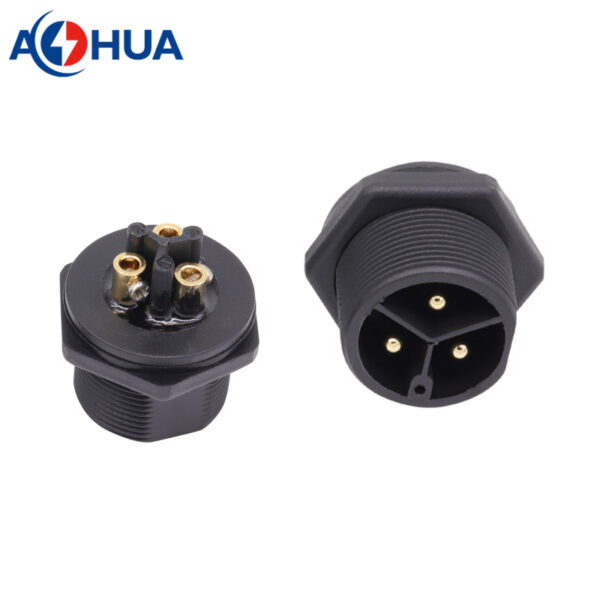

AH-M25-2503FMF01122 M25 25A Power Control Box Front Panel Mounting Male Waterproof Connector 3pin
AH-M25-2503FMF01122 M25 25A Power Control Box Front Panel Mounting Male Waterproof Connector 3pin
- AH-M25-2503FMF01122
- Model: M25
- Contacts: 3pin
- Connector Type: male-front panel mount
- Connection Type: screw fixing
- Docking Type: screw threads
- Voltage Rated: 300V
- Current Rated: 25A
- Wire Size: ≤2.5mm²
- Cable OD: 7-13mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Certificate: UL /CE /ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AH-M25-2503FMF01122 M25 25A Power Control Box Front Panel Mounting Male Waterproof Connector 3pin
- Type: male connector
- Part Number: AH-M25-2503FMF01122
- Model: M25
- Contacts: 3pin
- Connector Type: front panel mount
- Connection Type: screw fixing
- Docking Type: screw threads (male to female pluggable)
- Voltage Rated: 300V
- Current Rated: 25A
- Wire Gauge: ≤2.5mm²
- Cable OD: 7-13mm
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP68
- Certificate: UL version / General version (CE & ROHS)

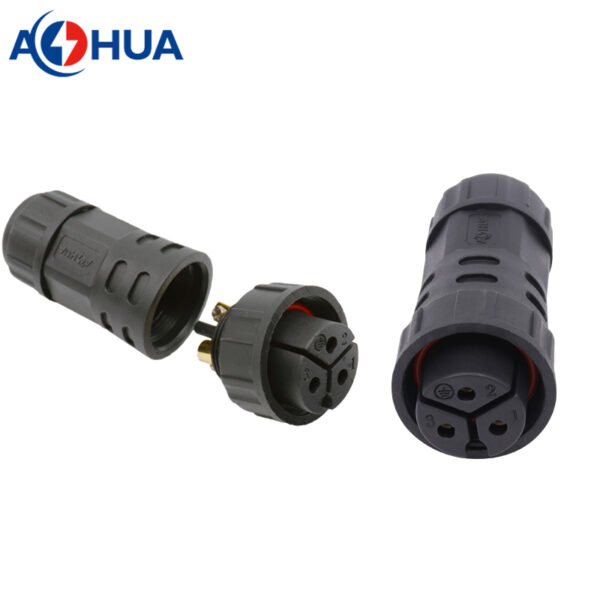

Mating Connector : female
- Female: inline
- Connection Type: screw fixing
- Docking Type: screw threads
- AH-M25-2503MFZ01122
