AHUA 2 pin electrical control box panel mount K15 10A 1.0 0.75 0.5 mm male female IP67 IP68 waterproof power wire connectors

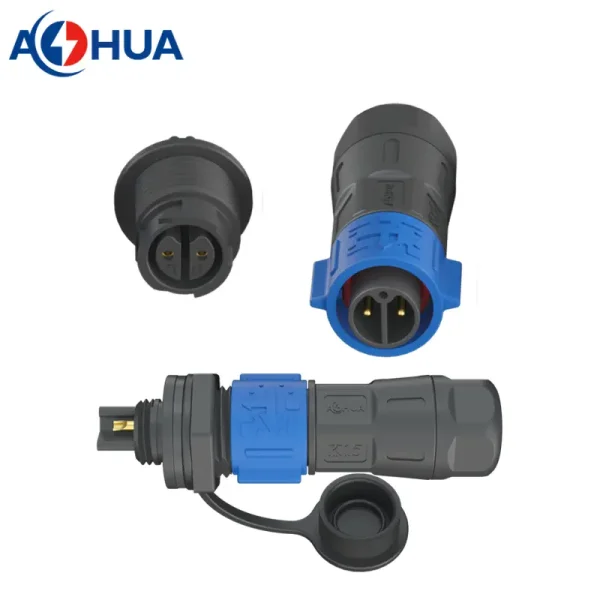

K15 power wire connector is fast locking type plug with male female connector, which female connector is panel mount type and male connector is inline connector. The female connector is soldering terminal version and male connector is screw fixing terminal verrsion.

The 2 pin K15 power wire connector is connecting to 2 core cable of power supply. The voltage rating is 300V and current rating is 10A. On this connector, the general wire gauge is 1.0mm², 0.75mm², 0.5mm² or 16AWG, 18AWG, 20AWG.

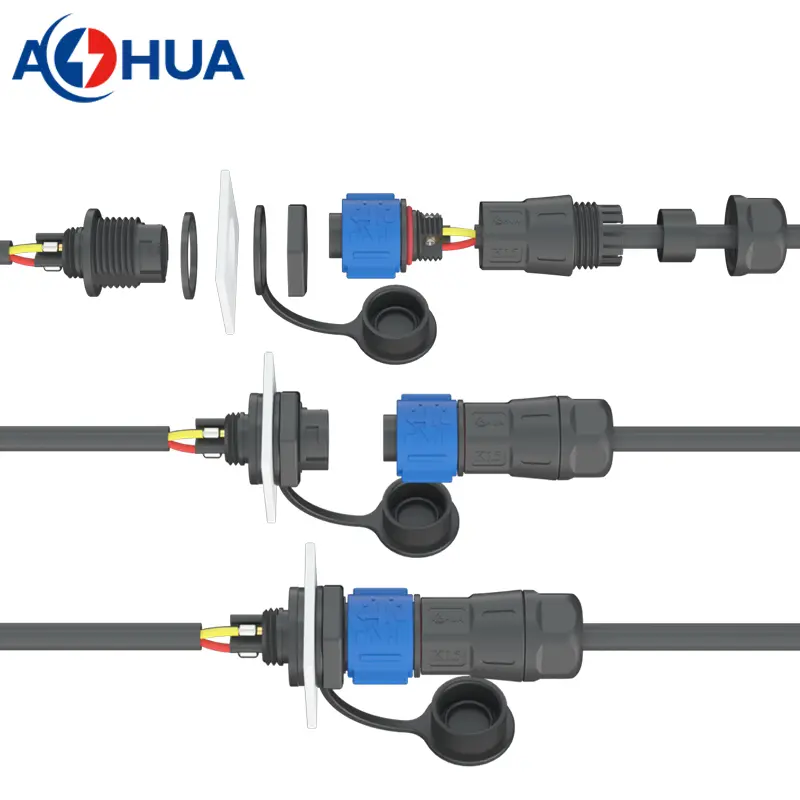

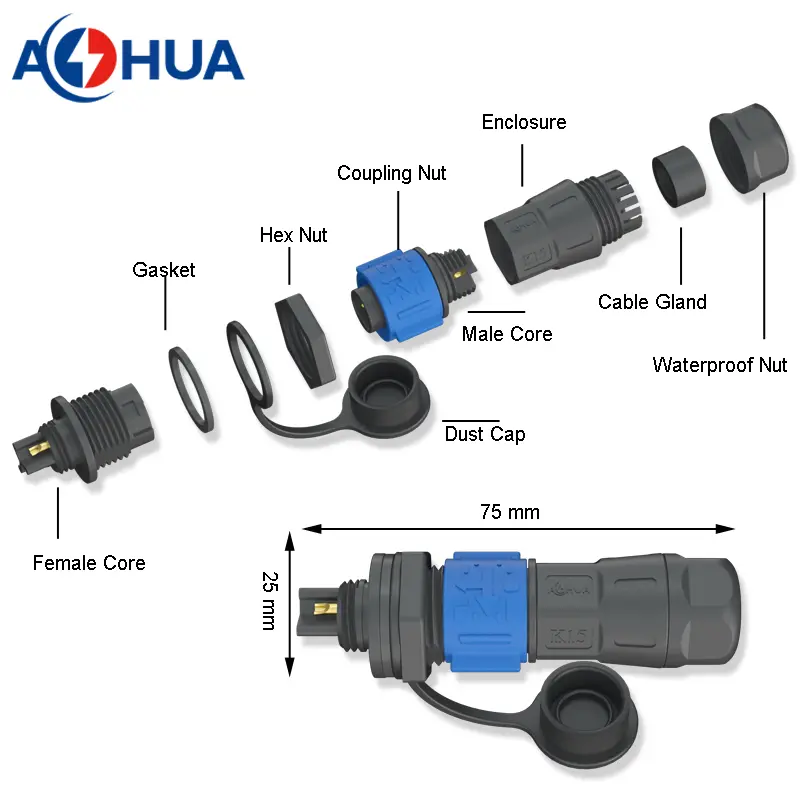

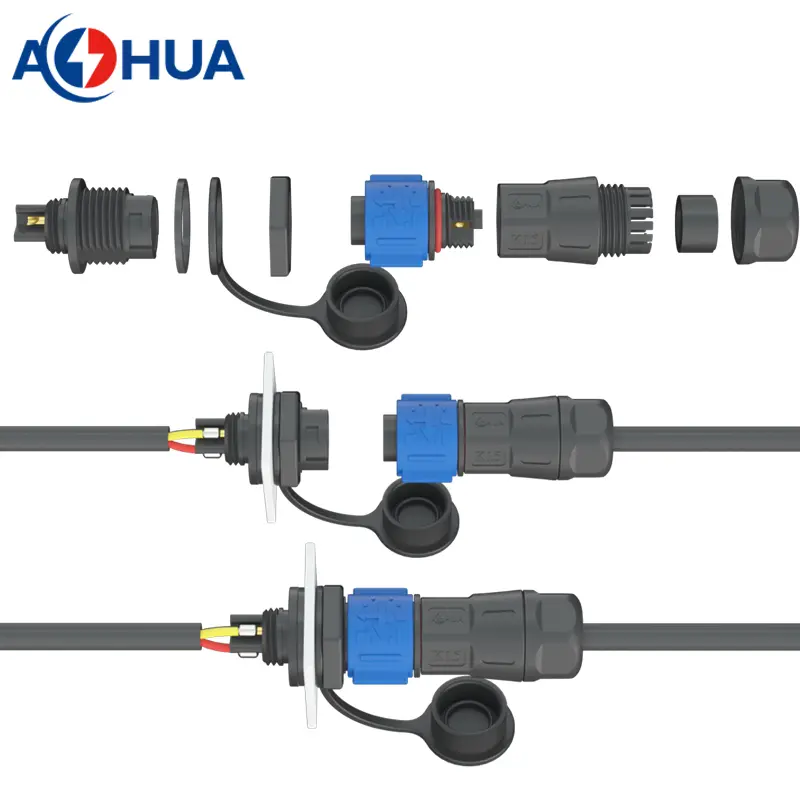

The connector is PA66 material, which is high strength and heat resistant. There is dust cap for choosing from, which is silicone material. The connector is assembled with some components, includes waterproof nut, enclosure, O-ring, coupling nut, hext nut, gasket, male/female core.  The connector body is length 75mm and wide 25mm. The recommended hole size is 17.4mm*16.2mm.

For these years, the fast locking power wire connector is great welcome in the market. With the high demand for efficiency, power connections also need to be the fastest and most efficient. This K15 is a small fast locking connector, it need to push the male connector into female connector, when you hear a click, the male have connected to female connector, that is ready.

Datasheet

How to choose the correct fast locking power wire connector?

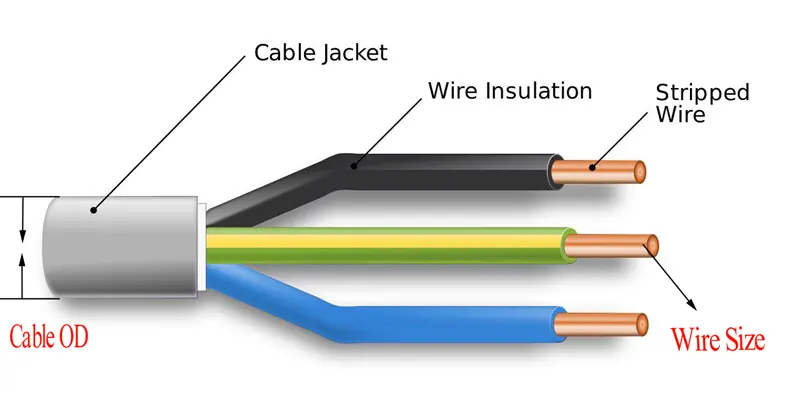

In your power wire layout solution, you already have the power voltage / current rating, and wire gauge and cable jacket. If all these is within our connector datasheet, it mean that our power wire connector is your choice.

How to choose the suitable cable gland?

• Suitable cable gland can play a better waterproof effect.
