AHUA 5A-15A power plug cable molded waterproof male female connector

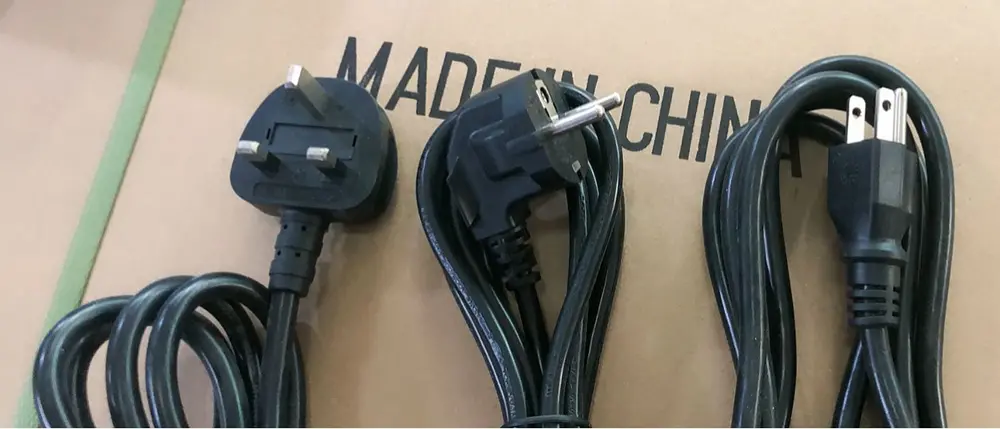

Customize male female waterproof connector with power plug. Usually, we can produce UK, US, EU power plug with waterproof male female connector. In the design solution, the power plug cable is uaually molded with female waterproof connector, it would be safe.

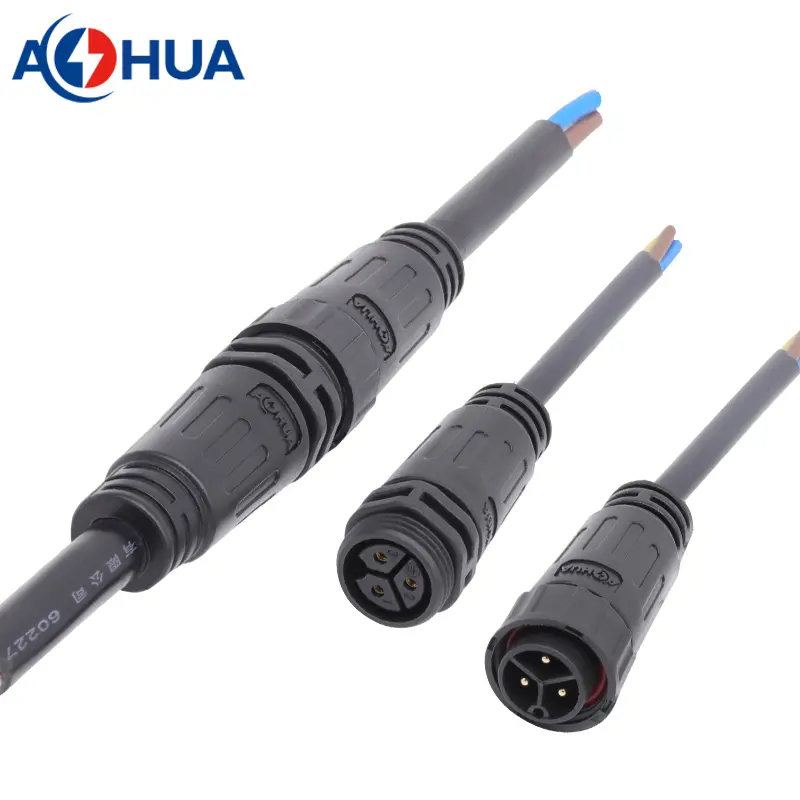

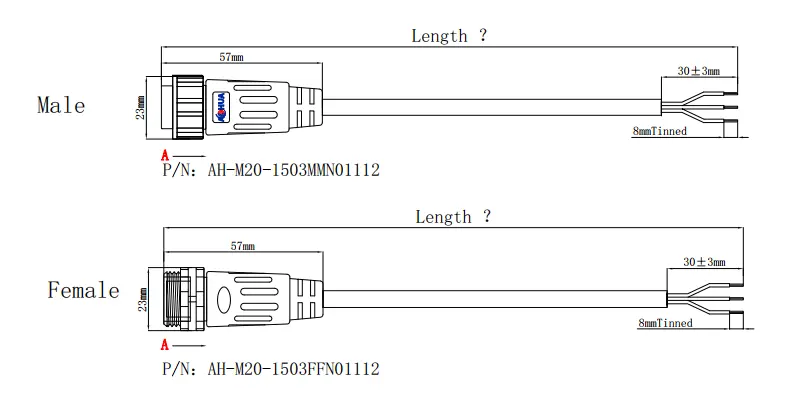

The waterproof connector AHUA M20 waterproof male female connector, it is IP67 wateproof level. The male side is carrying the screw nut and the female side is outside threads. In general for the power plug, the contacts is 2 pin and 3 pin, 3 pin is the best general one.

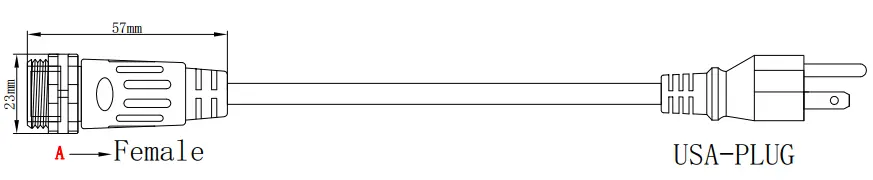

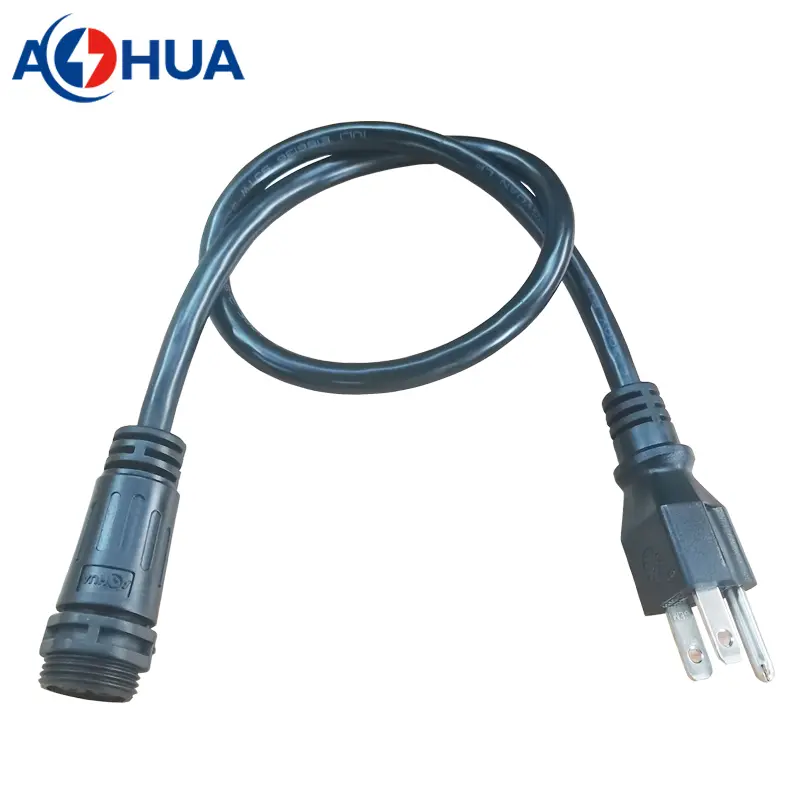

In the US plug solution, the wire gauges are 3C 14AWG 16AWG or 18AWG. The cable material is PVC. The cable length is customized as requirement from clients but the shortest cable is no less than 100mm.

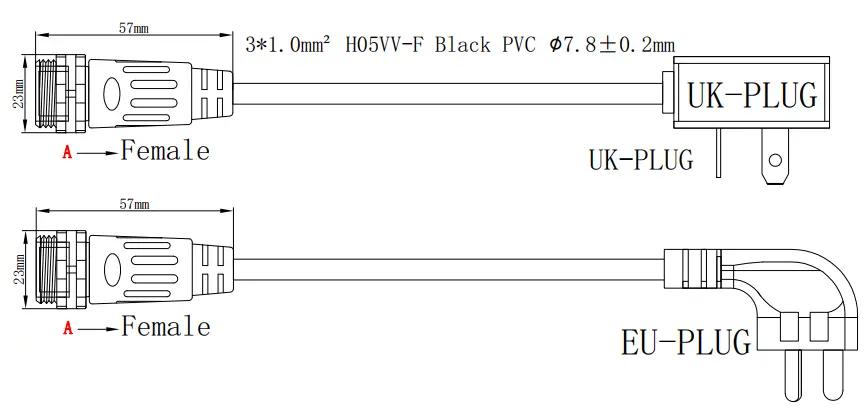

In the UK plug solution, the general wire gauges are 3C 0.75mm²， 1.0mm²， 1.5mm². The cable material we used is rubber VDE cable. The EU plug solution is also the same as the UK plug solution.
