AHUA cable processing M12 pvc male IP65 waterproof 4 pin RGB wire connectors for led strip lights
AHUA cable processing M12 pvc male IP65 waterproof 4 pin RGB wire connectors for led strip lights
AH-M12-0204FMP01131
Contact: 4pin
Gender: male
Material: PVC
Wire Gauge: 4*22AWG/4*24AWG
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
AHUA cable processing M12 pvc male IP65 waterproof 4 pin RGB wire connectors for led strip lights

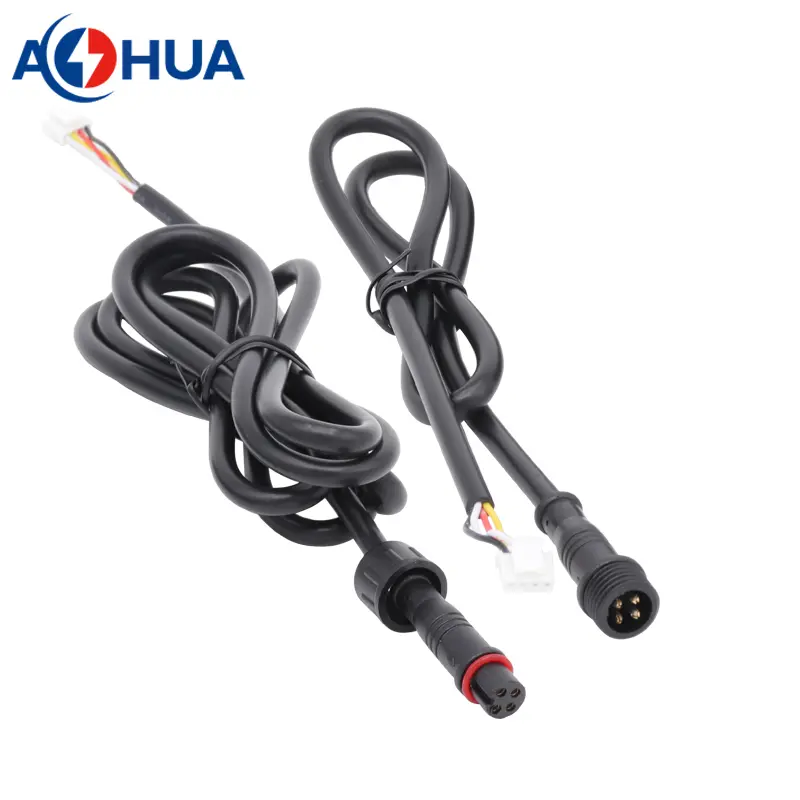

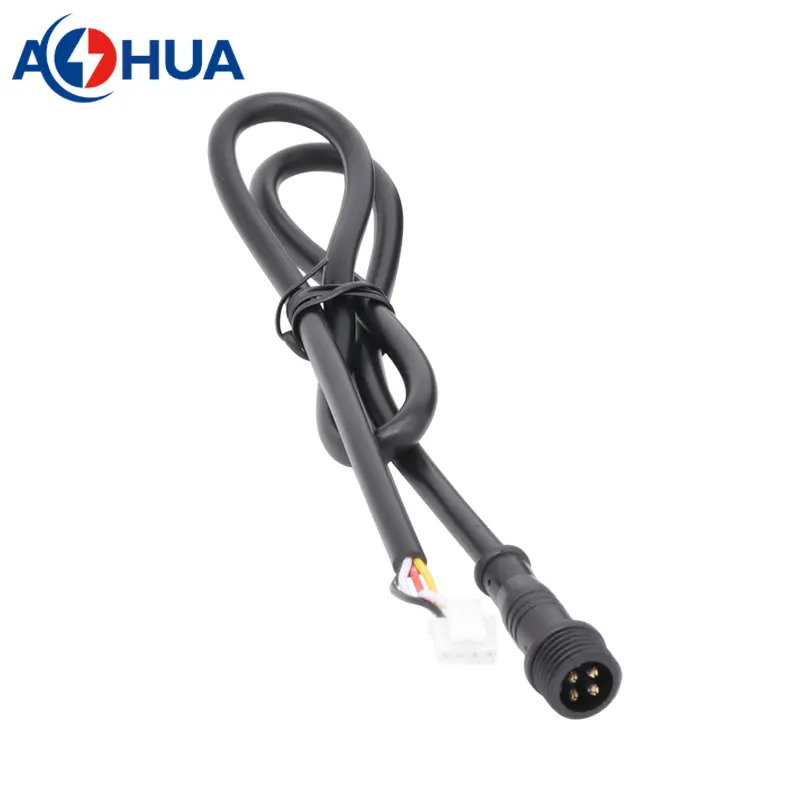

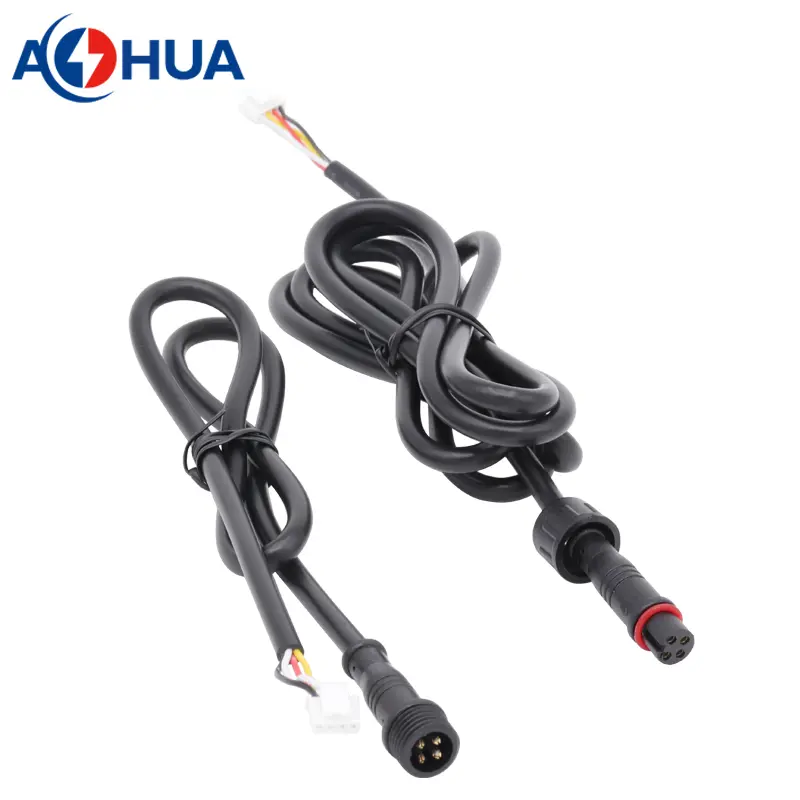

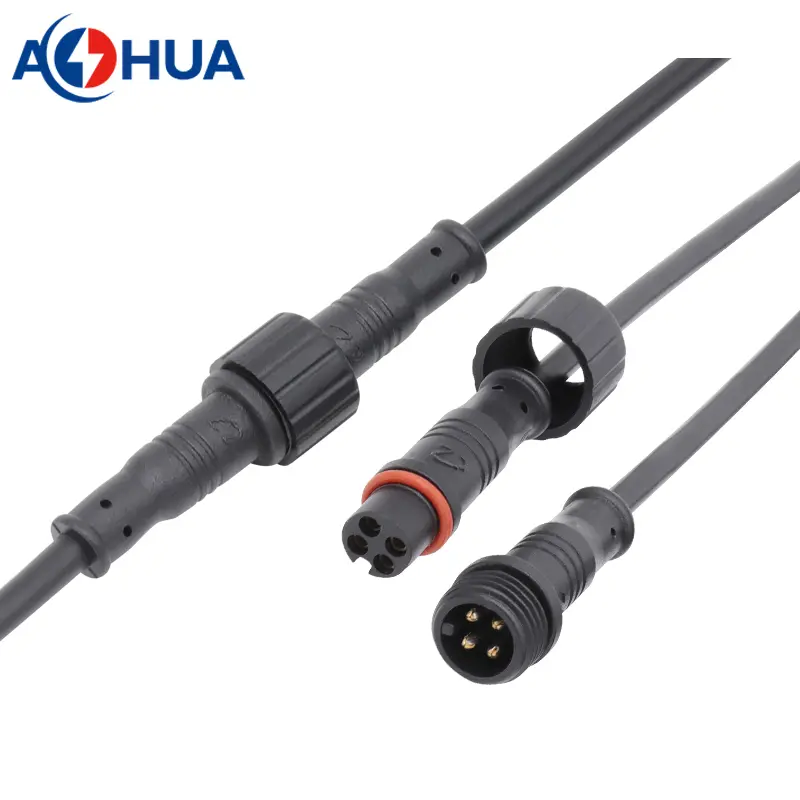

4 pin RGB wire connectors are the mini connector M12 molded with cable 4*22AWG or 4*24AWG wire, which the cable length customize on the requirement from clients. As usual, the male cable will be connected to the led strip lights.
This M12 connectors are fully PVC material connector with PVC cable, which are much competitive for the market of led strip lights.

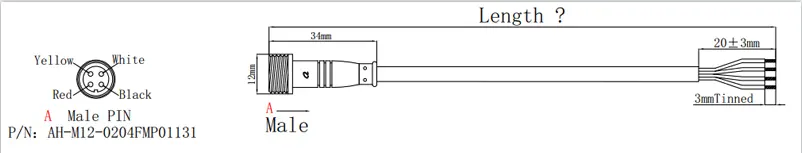

| Part Number | AH-M12-0204FMP01131 |
| Voltage Rating | 60V |
| Current Rating | 2A |
| Wire Gauge | ≤0.3mm² |
| Cable OD | 3.0-5.0mm |
| Mechanical Life | 500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
| Note | Matched dust cap for choice |
