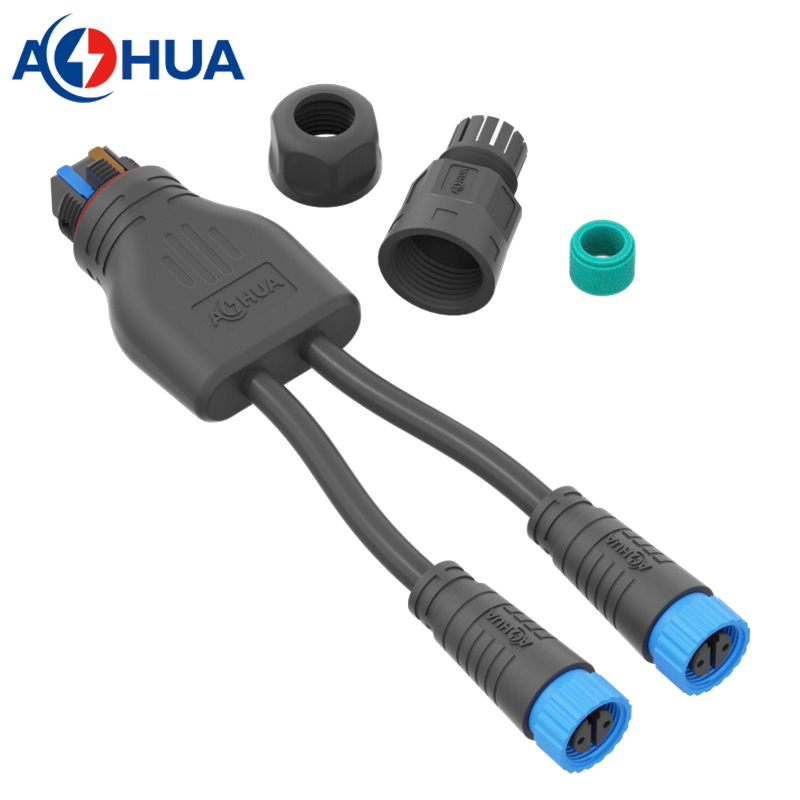

AHUA Customized Push Wire Power Extension Connector 2 Core 2 Pin 1 To 2 Y Type Waterproof Splitter
AHUA Customized Push Wire Power Extension Connector 2 Core 2 Pin 1 To 2 Y Type Waterproof Splitter
- Contacts: 2pin
- Connector Type: 1 to 2 splitter
- P/N: AH-YM20-0202
- Plastic Material: PA66
- Conductor: copper
- Cable Material: PVC/Rubber
- Cable Length: customized as required.
- Rated Voltage: 300V
- Rated Current: 10A
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AHUA Customized Push Wire Power Extension Connector 2 Core 2 Pin 1 To 2 Y Type Waterproof Splitter
Customize Y type waterproof splitter for power extension connecting for multiple cables.
- Model: YM20
- Connector Type: Y splitter
- Contacts: 2pin
- Connection Type: push wiring locking
- Plastic Material: PA66
- Conductor: copper
- Cable Material: PVC or Rubber
- Cable Length: customized as specified
| Contacts | 2pin |
| Rated Voltage | 300V |
| Rated Current | 10A |
| Wire Gauge | Main: ≤1.5mm²
Branch: ≤1.0mm² |
| Cable OD | Main: 5-10mm
Branch: 3-8mm |
-

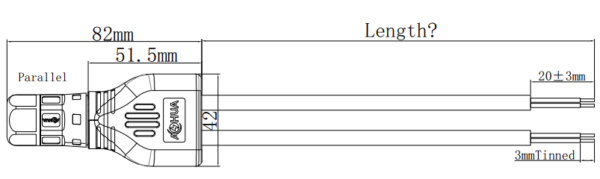

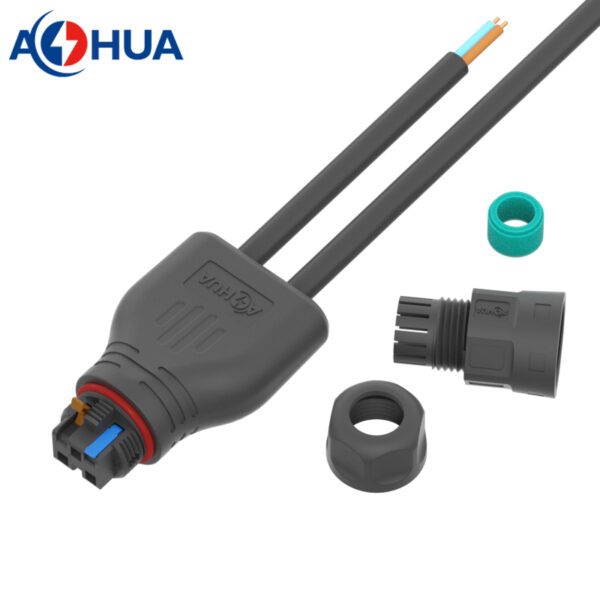

Solution 1: keep open wire end;
-

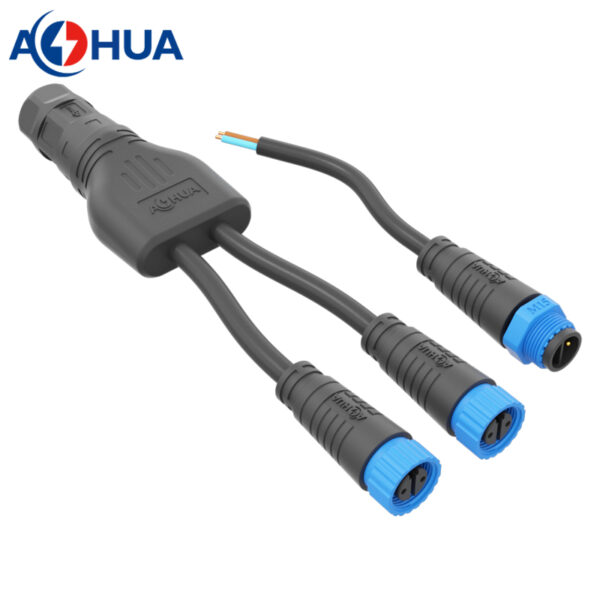

Solution 2: branch cable molded with female connector
- The branch cable can be molded with female connector for power output.
- The mating connector can be molded cable connector or assembly connector.
How to order?
This is customized waterproof spliter, which is customized from your idea. We would like to hear from your solution appeal.
we want to listen to you about the request includes:
1. ideas of application, solution or confusion.
2. connector type, such as branch cable with connector or not?
3. input/output cable working ampere, wire gauge, cable length or cable OD;
4. customized detail requests.
5. connection type: Parallel or Series.
It will great appreciated if you can provide a simple drawing or sketch.
