X Type M20 2 PIN Waterproof Connector-Quick Push-wire

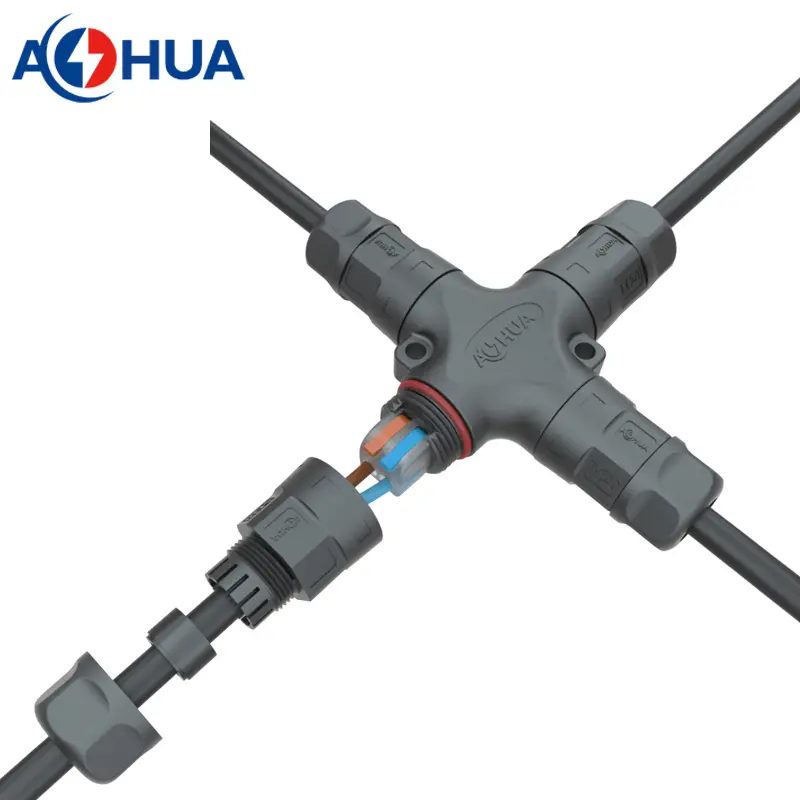

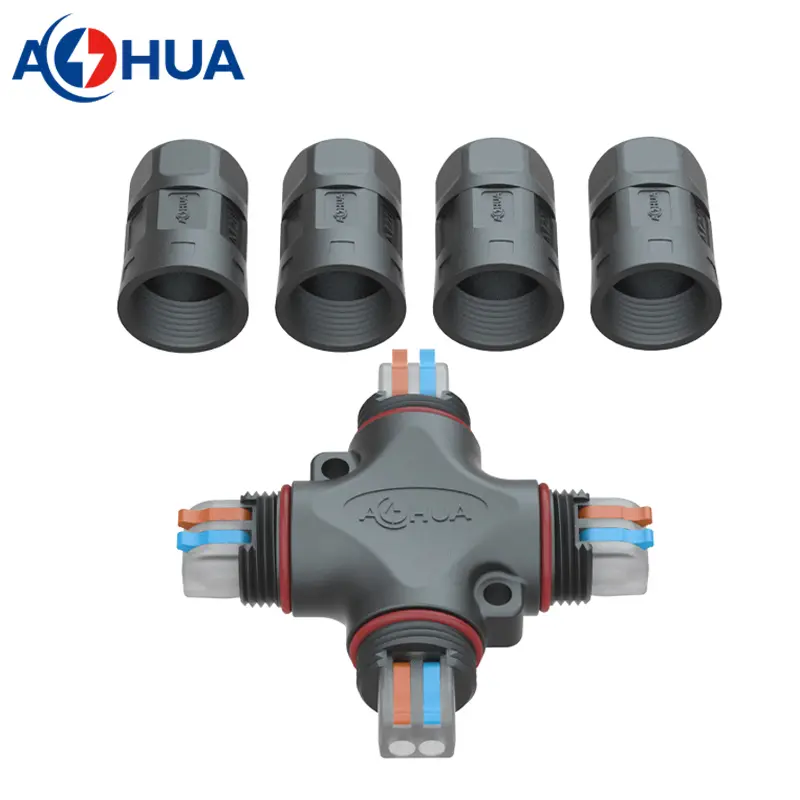

M20 power connector is X type splitter for cable joint, which is quick push-wire connection. The quick push-wire connection is well-suited for outdoor wire installation, which is no need tool for assembly, and greatly shorten the wiring time.

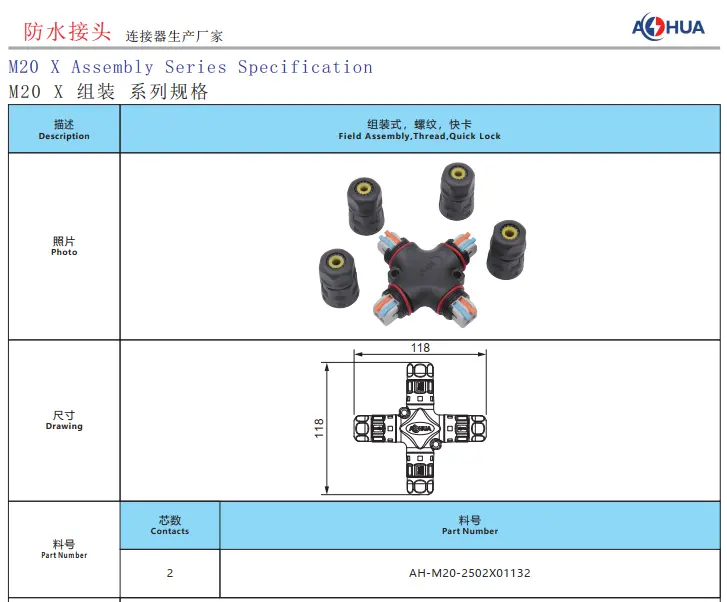

M20 X type connector is only 2pin, that mean only it suitable for 2 wires cable. Its voltage rating is 250V/25A, the suitable wire gauge is smaller than 2.5mm².  The cable jacket outer diameter is larger than 5mm but no more than 10mm, with seal ring sizes are 6.5/7.5/8.5/9.5/10mm. About the seal ring, to choose a correct seal ring is for the better waterproof, please check the bellow format, that is a reference choice, not standard.

This M20 X connector is nylon PA66 material with gold plated copper harware which is classy material. It is better for the safety circuit, and also suitable for humid environment, such as dew or rain.

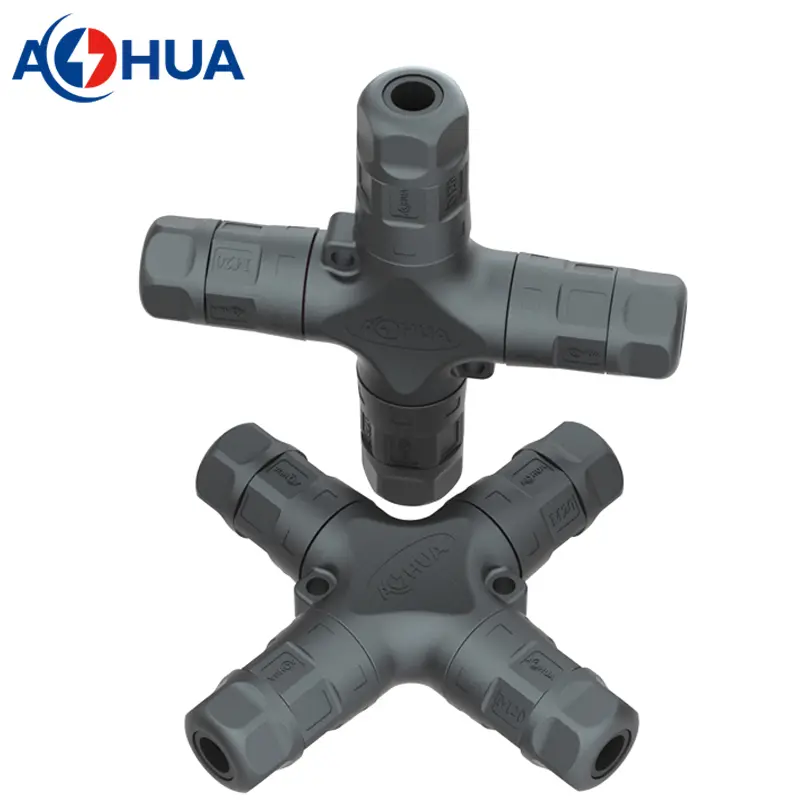

M20 X type connector is X type, well-suited for multi-line cable layout in outdoor, such as 1 input and 3 output cable. The waterproof level is IP67, favorable for outdoor environment.
