AHUA L type Ethernet cable cat5 cat6 waterproof IP67 IP68 RJ45 connector

AHUA L type Ethernet cable cat5 cat6 waterproof IP67 IP68 RJ45 connector

Part Number: Ah-RJ45-08Z01132
Contacts: 8 pin
Material: Nylon
Color: black
Wire Gauge: 24AWG
Cable OD: Max 6.5mm
Mechanical Life: 500 mating cycles
Panel thickness: Max 5mm
Operating Temperature: -20℃~105℃
Waterproo Level: IP67 / IP68
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

AHUA L type Ethernet cable cat5 cat6 waterproof IP67 IP68 RJ45 connector

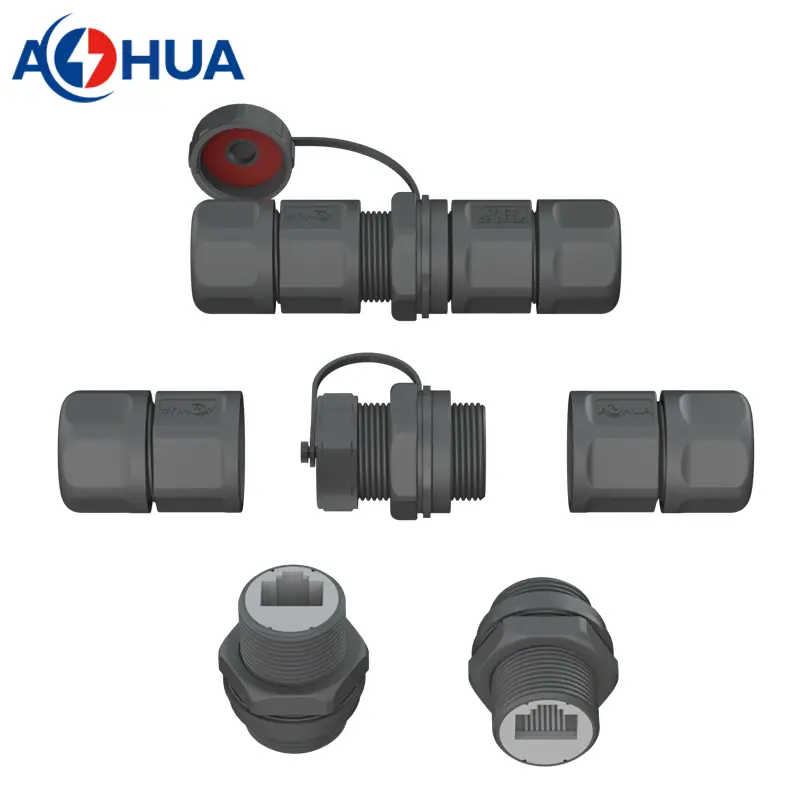

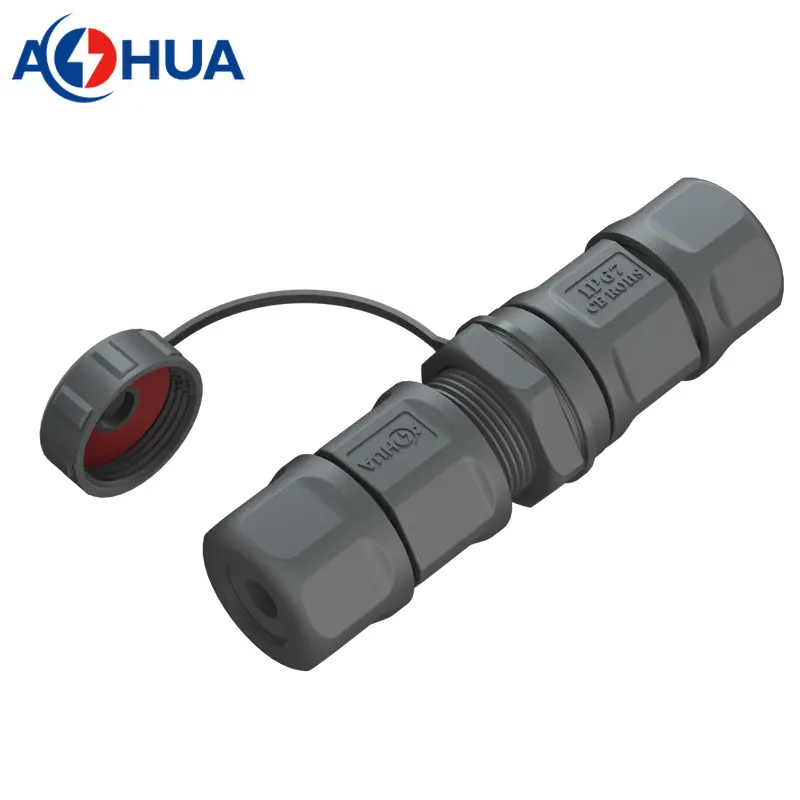

This is L type RJ45 connector, its eight pin socket is a standardised interface which ofter connects a computer to a LAN. And this RJ45 connector was originallydeveloped for telephone comunication, but nowadays is used in a range of applications, such as indoor or outdoor waterproof switchs. The general waterproof grade is IP67.

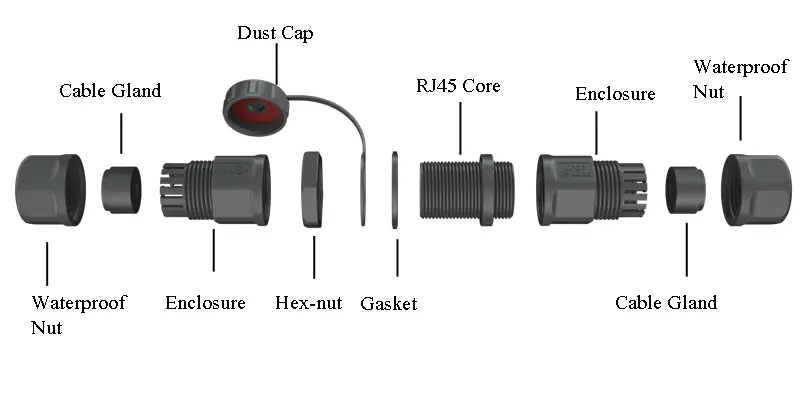

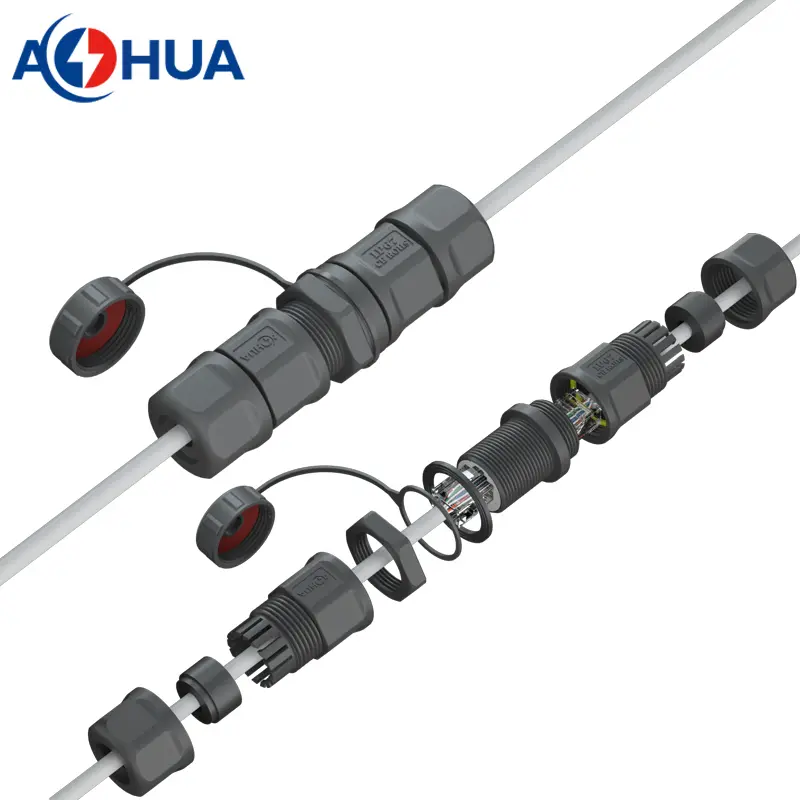

This RJ45 connector assembly type, which is assembled with some components, includes waterproof nut, enclosure, connector core, O-ring, hex nut, gasket, dust cap. But the dust cap is choosed from when you need.

Part Number	AH-RJ45-08Z01132
Wire Gauge	24AWG
Cable OD	Max 6.5mm
Panel Thickness	Max 5mm
Mechancial Life	500 mating cycles
Waterproof Level	IP67 / IP68
