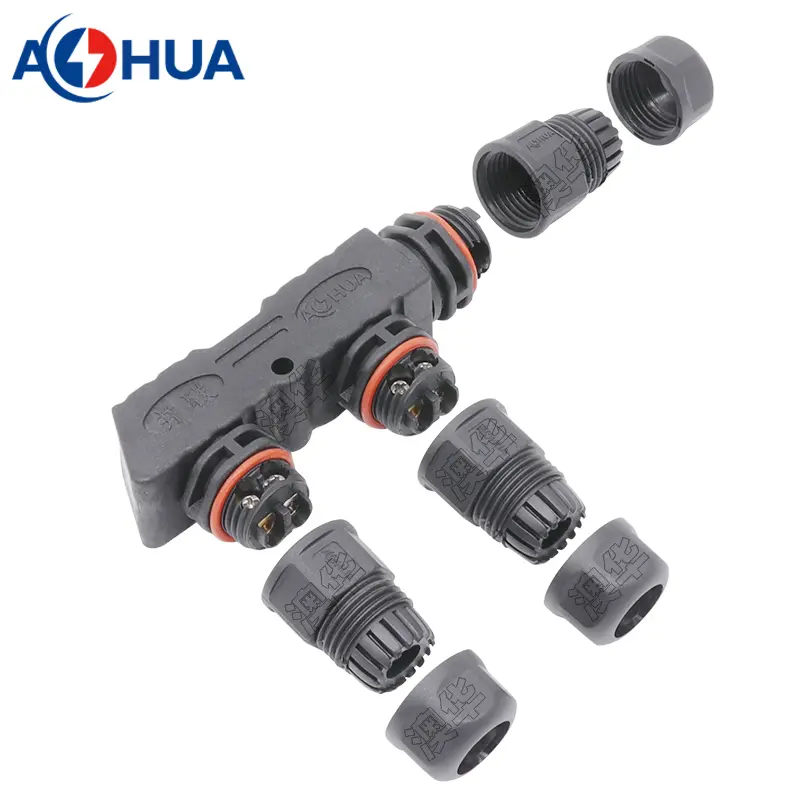

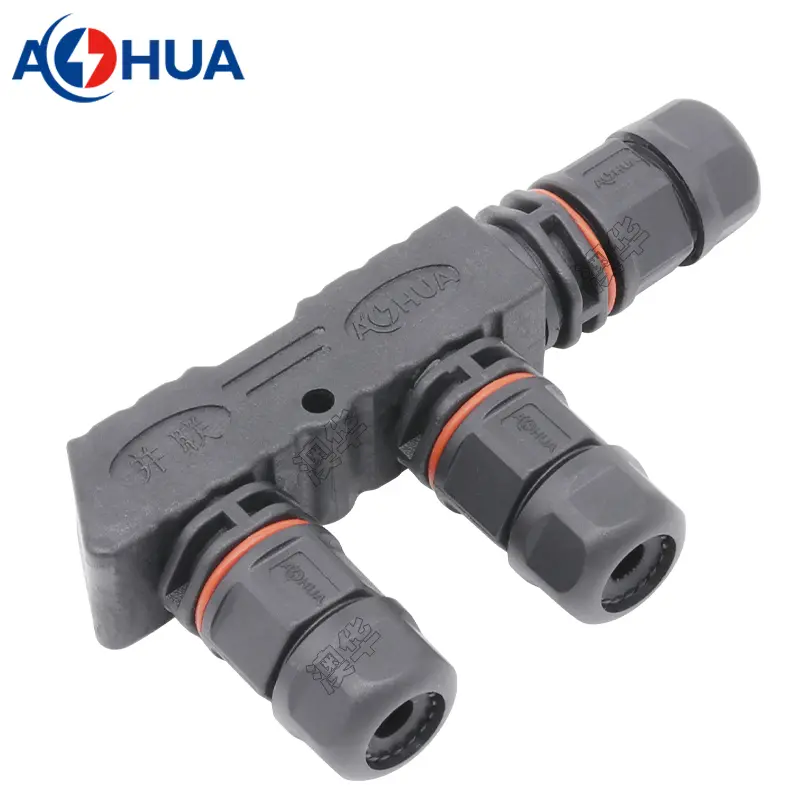

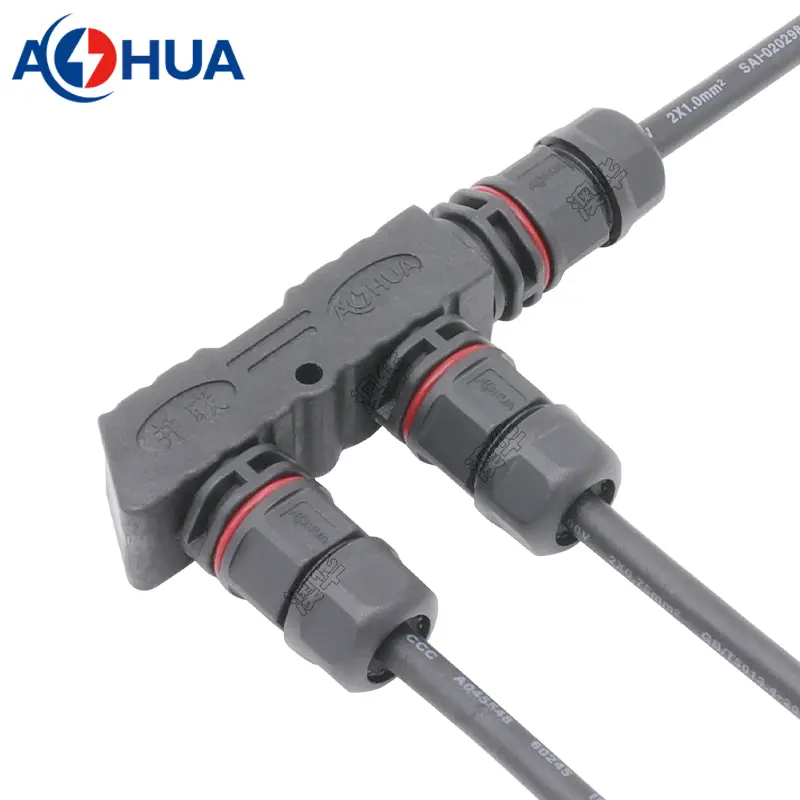

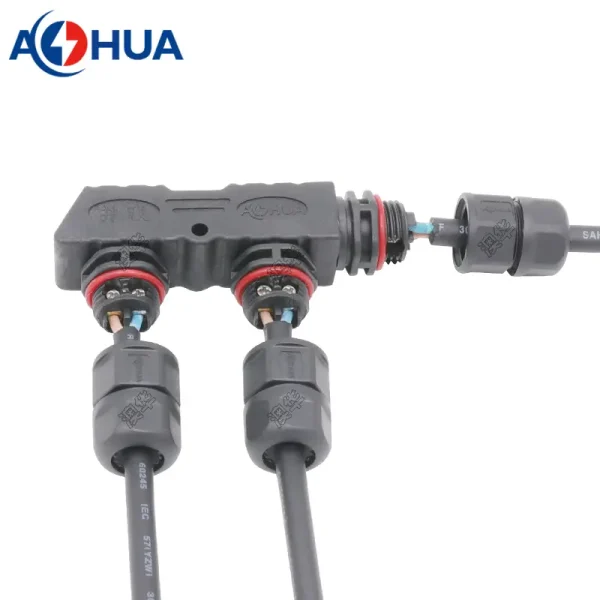

Distributor 1 to 2 F type M16 waterproof cable connector
Distributor 1 to 2 F type M16 waterproof cable connector
P/N: AH-M16-1002ZO2P122
Connector: Nylon
Color: Black
Connection: Parallel / Series
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

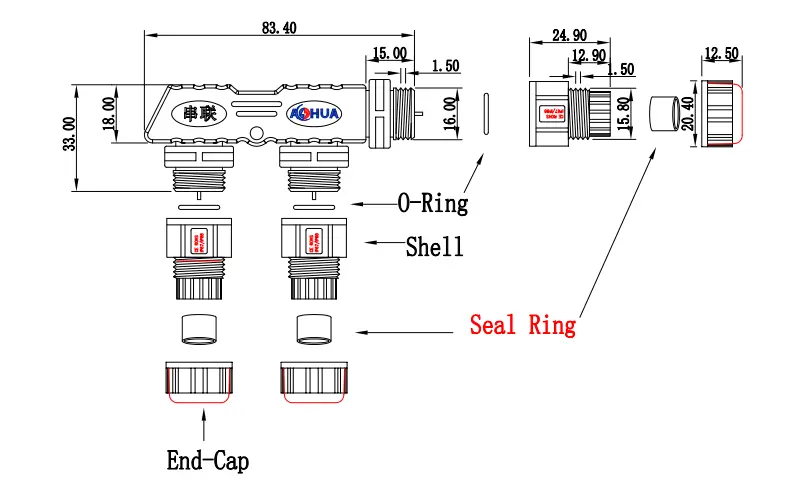

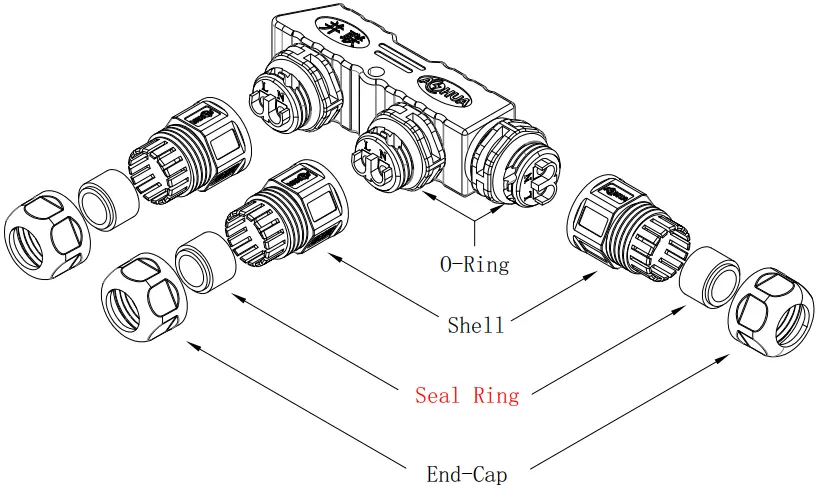

F type M16 waterproof connector
| Contacts | Parallel | Series |
| 2 | AH-M16-1002ZO2P122 | AH-M16-1002ZO2S122 |
| 3 | AH-M16-1003ZO2P122 | AH-M16-1003ZO2S122 |
| 4 | AH-M16-1004ZO2P122 | AH-M16-1004ZO2S122 |
| 5 | AH-M16-1005ZO2P122 | AH-M16-1005ZO2S122 |
| Voltage Rating | 300V |
| Current Rating | 10A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 6mm-10mm |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
