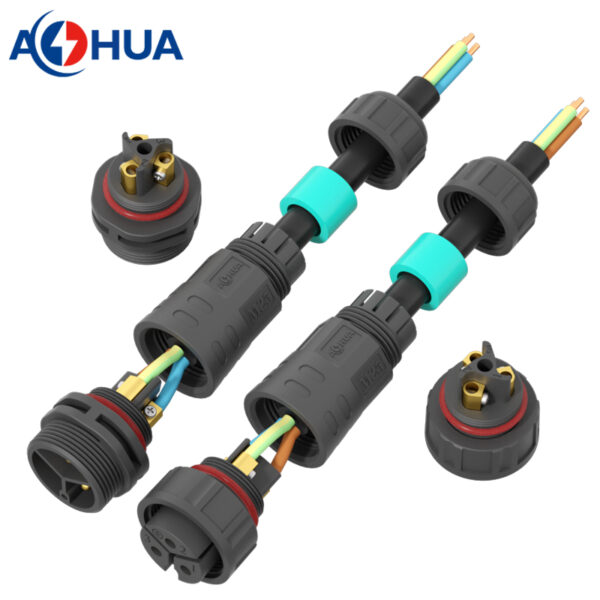

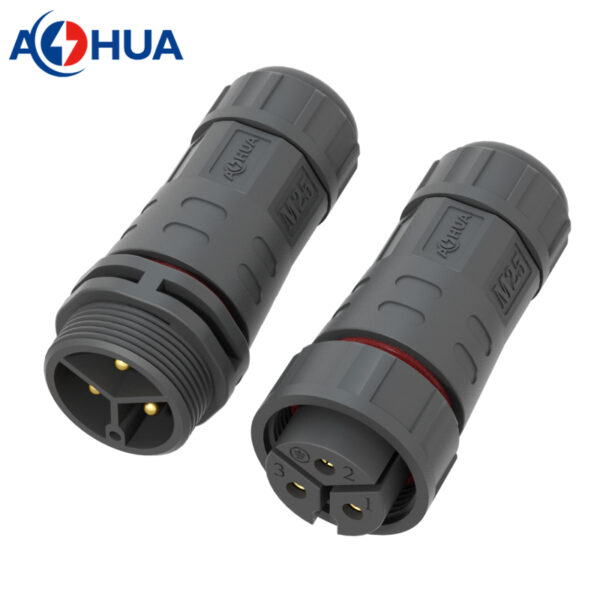

AOHUA 25A 500V 3pin Inline Wire To Wire Waterproof Power Connector, Waterproof Assembly Electrical Connector With Screw Lugs

Highlight of waterproof power connectors

1. This is male plug to female sockets with screw lugs, waterproof power circular connector with IP68 waterproof grade.
2. The male and female all is inline assembly type.
3. 25A 500V is perfect for daily power working ampere and voltage.
4. PA66 nylon for shell injection: ensure strength, tough and insulated of housing.
5. Silicone rubber waterproof cable gland, and O-ring: tight grip for cable, enhanced water resistance.
6. Precision design process of waterproof power connector: ensures smooth assembly of joints and no defects in the product.
7. Male female docking: it is easy for plug and unplug.
8. Screw connection: connect the two parts between male and female tightly together, that is reliable connection.
9. Screw lugs is easy for field assembly with simple tools (screwdriver and wire pliers).

Parameters of waterproof electrical connector

1. Contacts: 3pin
2. Rated Voltage: 5000V
3. Rated Current: 25A
4. Wire Gauge: 0.75/1.0/1.5/2.5mm²
5. Cable OD: 6-13mm
6. Mechanical Life: 3000 mating cycles
7. Operating Temperature: -40℃~+105℃
8. Waterproof Grade: IP68

• Male: AH-M25-2503FMZ02122
• Female: AH-M25-2503MFZ02122
• Components: waterproof nut, cable gland, enclosure, O-ring, coupling nut, O-ring, connector cores.
• Certificate: CE, TUV, SAA, UL, ROHS

What you need to provide when purchase

1. confirm the connector type includes, whether is: inline connector, thread docking, male to female, screw fixing type.
2. specify the working ampere, wire gauge, cable OD.
3. send all this  information to sales for getting right part number and double checking and quotation.
4. start sample testing and then large order.

How to choose the right cable gland for your power cable connection to get better waterproof effect.

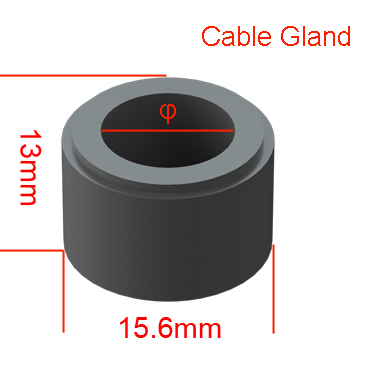

You need to tell the correct cable OD, then our team will choose accurate cable gland for your cable, to ensure the better waterproof grade. Don’t imagine that one cable gland will fit all cables. The more accurate the cable gland, the better waterproof effect can be achieved. According to our experience and testing, the cable gland of inside diameter should be larger than the cable OD to ensure the cable can go through, and should be close to the cable OD to ensure the cable gland grip cable tightly. We give sample for reference:

• cable OD: 5-7mm, cable gland: φ7mm;
• cable OD: 7-9mm, cable gland: φ9mm;
• cable OD: 9-10mm, cable gland: φ10mm;
• cable OD: 10-11mm, cable gland: φ11mm;
• cable OD: 10-12mm, cable gland: φ12mm;
• cable OD: 11-13mm, cable gland: φ13mm.

What you can get about waterproof power connector at AOHUA company?

As the leading source of manufacturer, we not only have the basic series waterproof cable connectors, but also can do design and make cable solution, and accept the processing of incoming materials.
