AOHUA CAT6 Ethernet M21 IP67 waterproof 90 degree RJ45 panel mount connector for data signal transportation
AOHUA CAT6 Ethernet M21 IP67 waterproof 90 degree RJ45 panel mount connector for data signal transportation
RJ45 panel mount connector
Connector: AH-RJ45-M21F90
Enclosure: AH-RJ45-M21MC
Dust Cap: AH-RJ45-CAP
Wire Gauge: 24AWG
Cable OD: Max 6.5mm
Panel Thickness: Max 10mm
Mechanical Life: 500 mating cycles
Waterproof Level: IP67
Share to:
AOHUA CAT6 Ethernet M21 IP67 waterproof 90 degree RJ45 panel mount connector for data signal transportation

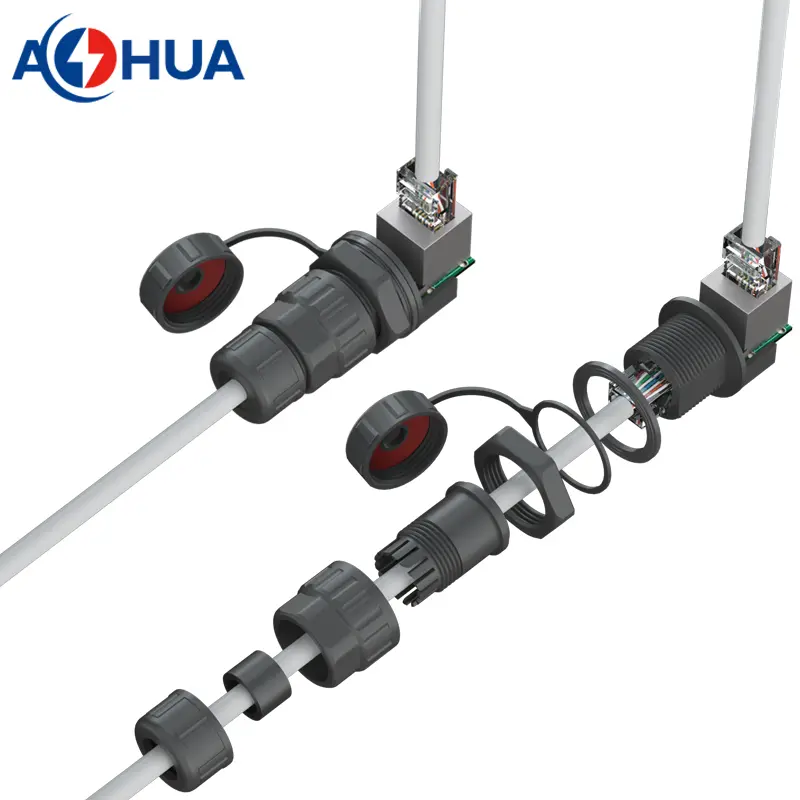

The RJ45 panel mount connector is a panel mounted connector. This is the connector with the screw thread M21. It is mainly used for data and signal transportation, which is suitable for CAT6 Ethernet cable.

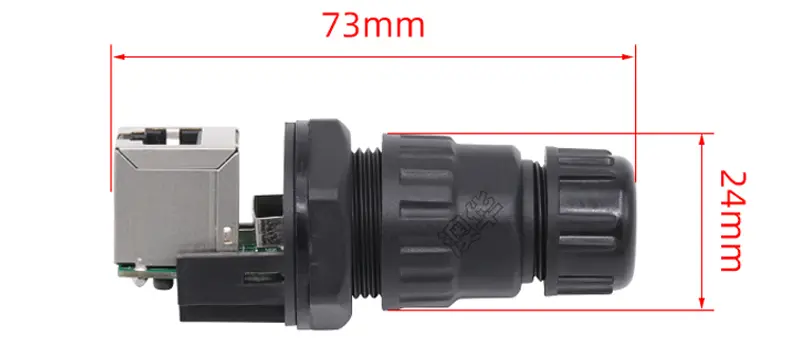

This is a screw thread 8 contacts connector with plug in termination and cable gland for 24AWG/max OD 6.5mm. High quality construction with strength PA66 nylon body. The connector is length 73mm and diameter 24mm.

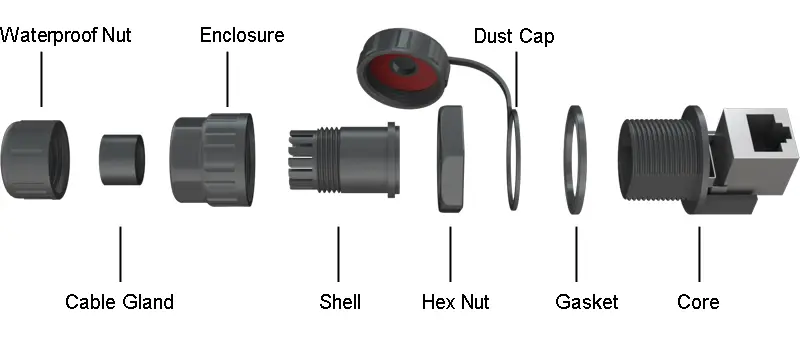

Components of RJ45 panel mount connector:
| Core | AH-RJ45-M21F90 |
| Enclosure | AH-RJ45-M21MC |
| Dust Cap | AH-RJ45-CAP |
| Wire Gauge | 24AWG |
| Cable OD | Max6.5mm |
| Panel Thickness | Max10mm |
| Mechanical Life | 500 mating cycles |
| Waterproof Level | IP67 IP68 |
Typical application of RJ45 waterproof connector is used for Ethernet cable of DATA and signal transportation.
