AOHUA Junction Box 3pin M20 15A Control Box Power Wiring Solution Waterproof Male Female IP68 Connector
AOHUA Junction Box 3pin M20 15A Control Box Power Wiring Solution Waterproof Male Female IP68 Connector
- Model: M20
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-10mm
- Plastic Material: PA66
- Conductor: gold plated brass
- Mechanical Life: 3000 mating cycles
- Operating Temperature: -40℃~+105℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AOHUA Junction Box 3pin M20 15A Control Box Power Wiring Solution Waterproof Male Female IP68 Connector

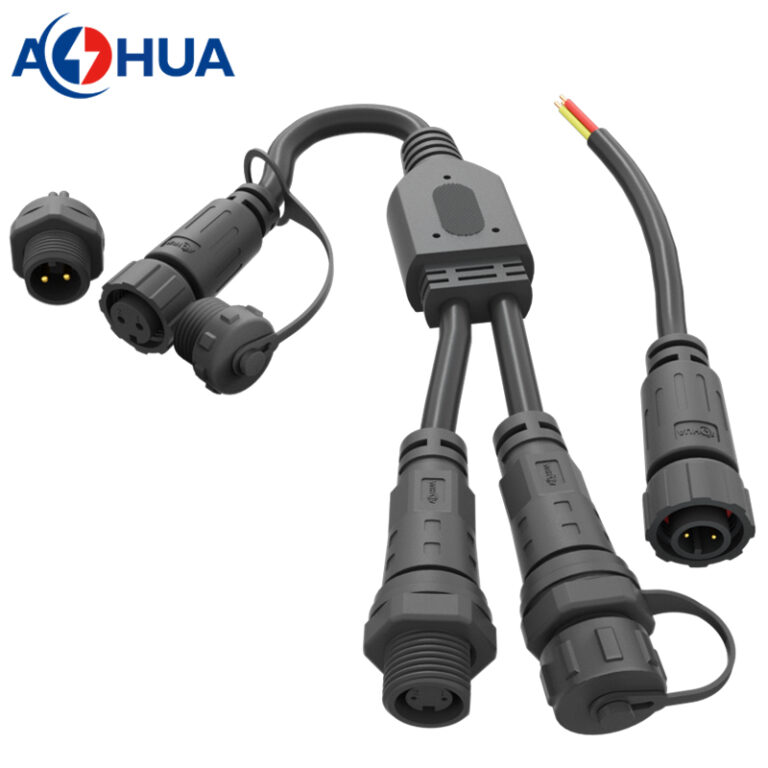

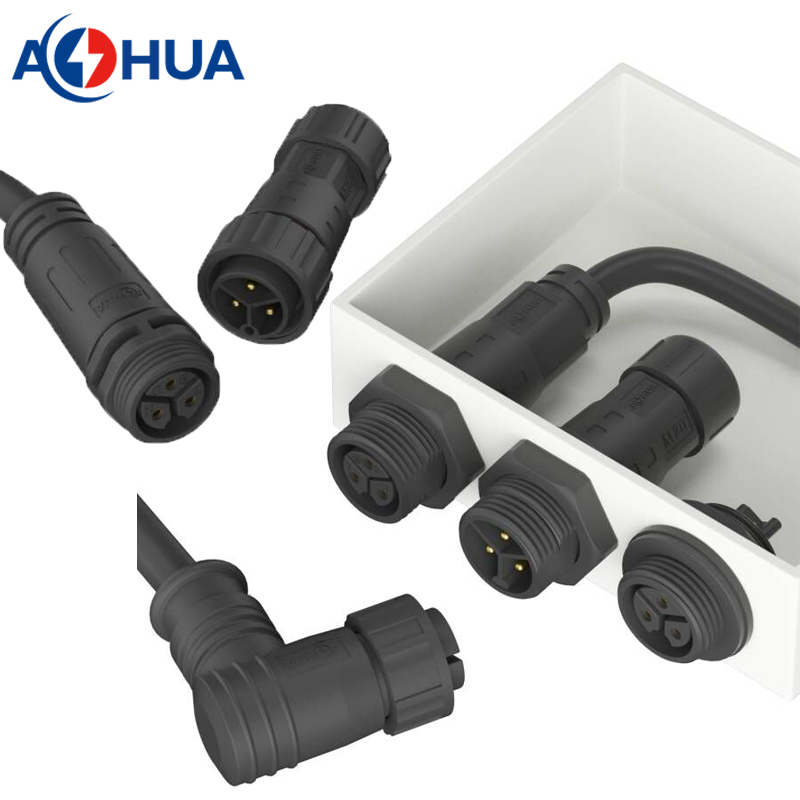

Here is the 3pin 15A connector waterproof cable solution customized, includes inline and panel type, assembly and molding type connectors.
| Model | M20 |
| Contacts | 3pin |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Size | ≤1.5mm² |
| Cable OD | 5.0-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP68 |
What the solution we want to show to you is that we can integrate different type connectors in a solution to
