AOHUA K15/K20/K25 Waterproof Cable Connector, 2Pin-8Pin IP68 Waterproof Y Splitter Connector for LED Lighting, Outdoor Power, Industrial Equipment
AOHUA K15/K20/K25 Waterproof Cable Connector, 2Pin-8Pin IP68 Waterproof Y Splitter Connector for LED Lighting, Outdoor Power, Industrial Equipment
We can do everything, you just need to tell us with detail request!
- Step 1: Select Standard Product or Submit Custom Request
For standard products: Select your required series (K15/K20/K25), pin count, cable length, and quantity, then add to cart.
For custom products: Fill in the Custom Request Form on the product page, or contact our sales team directly. - Step 2: Confirm Order & Payment
We will confirm your order details, including product specifications, price, lead time, and shipping cost.
Accept payment via T/T, Western Union, PayPal, and other secure payment methods. - Step 3: Production & Shipment
We start production after receiving the deposit, and update you with production progress regularly.
After production completion, we send you inspection photos and arrange shipment. - Step 4: Delivery & After-sales
Track your order via the tracking number provided.
Contact us anytime for technical support, warranty, or reorder.
Share to:

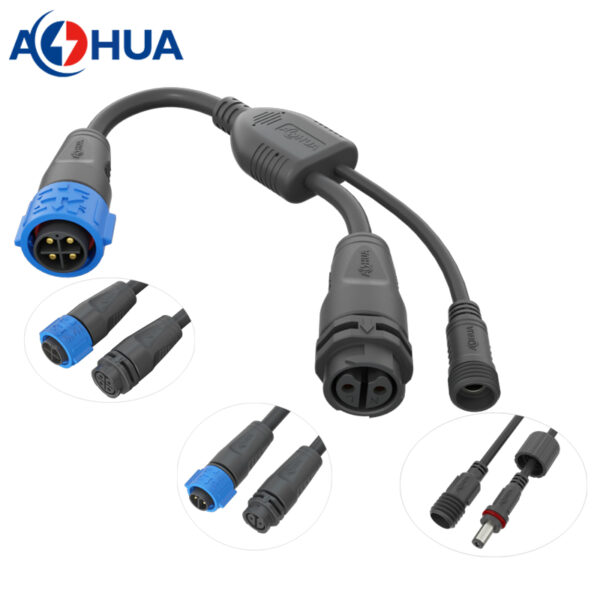

AOHUA Custom Waterproof Cable Connector, K15/K20/K25 Series 2Pin to 8Pin IP68 Y Type Splitter, OEM/ODM Cable Solution for LED, Industrial, Outdoor Power Applications
AOHUA K Series Waterproof Cable Connectors are high-performance, industry-leading connectivity solutions designed for reliable power and signal transmission in harsh outdoor and industrial environments. As a professional manufacturer with over 10 years of experience, AOHUA offers customizable Y-splitter, straight, and panel-mount connectors ranging from 2-pin to 8-pin, with IP67/IP68 waterproof ratings, CE & RoHS certified, to meet the unique needs of LED lighting, industrial automation, solar energy, and smart home projects.
Customizing cable solution based on your detail request is our final purpose that we can design & manufacture products as required.
Our connectors feature a durable PA66 housing, gold-plated brass contacts, and a secure locking design, ensuring long-term stability against water, dust, vibration, and extreme temperatures. Whether you need standard off-the-shelf connectors or fully customized cable assemblies, AOHUA provides one-stop ODM/OEM services from design to mass production.
Product Superiority
- Premium Waterproof Performance: IP67/IP68 rated, fully protected against dust, rain, snow, and temporary immersion in water, ideal for outdoor and wet environments.
- Wide Pin & Series Compatibility: Available in K15, K20, K25 series, supporting 2-pin to 8-pin configurations, compatible with most standard wiring systems.
- Fully Customizable Solutions: Support OEM/ODM for cable length, wire gauge, connector type (Y-splitter, straight, panel mount), color, and custom branding.
- Durable & Safe Materials: High-quality PA66 nylon housing (flame-retardant, UV-resistant), gold-plated copper contacts (low resistance, anti-corrosion), and high-flexibility rubber cables.
- Global Certification: CE, RoHS, and REACH compliant, meeting international safety and environmental standards for global market access.
- Easy Installation: Tool-free, quick-lock design for fast, secure installation, reducing on-site labor time and costs.
| Parameter | Details |
| Series | K15, K20, K25 |
| Pin Count | 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin (Customizable) |
| Connector Type | Y Splitter (1-to-2,3, 4, 5, 6, 7, 8), Straight Plug, Panel Mount, Cable-to-Cable |
| Waterproof Rating | IP67, IP68 |
| Housing Material | PA66 Nylon |
| Contact Material | Brass with Gold Plating (Anti-Corrosion, Low Resistance) |
| Seal Material | Silicone Rubber (High Temperature Resistant) |
| Cable Material | H05VV-F / H07RN-F / UL2464 (Customizable) |
| Wire Gauge | 18AWG, 16AWG, 14AWG, 12AWG (Option for specified and Customizable) |
| Cable Length | Customized per Request (Standard: 0.5m, 1m, 2m, 3m, 5m) |
| Rated Voltage | 250V AC/DC (Standard), 300V AC/DC (High Power Optional) |
| Rated Current | 1A-25A (Depends on Pin Count & Wire Gauge) |
| Operating Temperature | -40℃ ~ +105℃ |
| Certification | CE, RoHS |
| Application | LED Lighting, Solar Energy, Industrial Automation, Outdoor Power, Smart City, Marine, Agriculture |

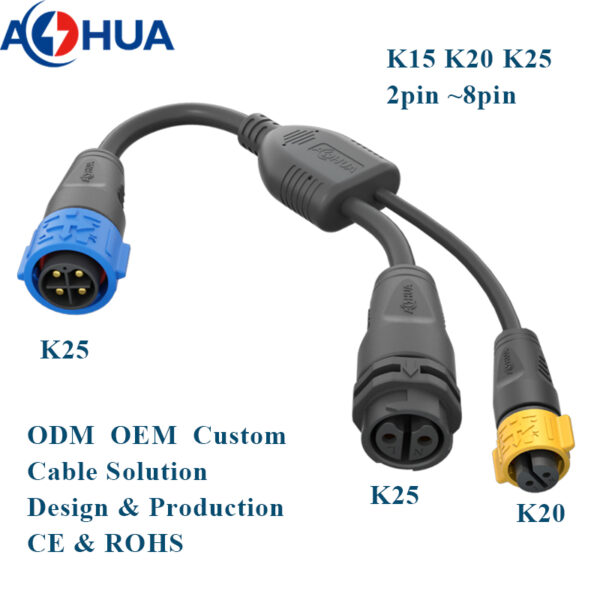

K series connector difference
| Series | Cable Diameter Range | Typical Application |
| K15 | 5mm-10mm | Small LED strips, low-power sensors, smart home devices |
| K20 | 6mm-13mm | LED panel lights, landscape lighting, small industrial equipment |
| K25 | 8mm-15mm | High-power LED, solar power systems, heavy-duty industrial equipment |
AOHUA waterproof connectors are widely used in a variety of industries and applications, including:
- LED Lighting: LED street lights, landscape lights, garden lights, stage lights, LED display screens, and underwater lights
- Industrial Automation: Factory automation equipment, sensor connections, control systems, and robotic arms
- Solar & Renewable Energy: Solar panel connections, solar street lights, and off-grid power systems
- Outdoor & Smart City: Smart street lights, traffic signals, surveillance cameras, and IoT devices
- Marine & Agriculture: Boat wiring, agricultural irrigation systems, and greenhouse equipment
- Outdoor Power & EV: Outdoor power distribution, electric vehicle charging accessories, and portable power stations
OEM ODM Custom
- Connector Customization: Custom pin count, connector type (Y-splitter, straight, panel mount, M12/M16/M20 thread), and color coding
- Cable Customization: Custom cable length, wire gauge, cable material (PVC, silicone, rubber), and jacket color
- Branding Customization: Custom logo printing on connectors, cables, and packaging
- Solution Customization: One-stop custom cable assembly for unique project requirements (e.g., 1-to-3 splitters, multi-connector harnesses)
- Sample Customization: Fast sample production for testing and verification before mass order
How to order?
- Inquiry & Requirement Confirmation: Send us your detailed requirements (pin count, cable length, application, quantity, etc.) via email or inquiry form.
- Solution Design & Quotation: Our engineering team will design a customized solution and provide a detailed quotation within 24 hours.
- Sample Production & Approval: We produce and ship samples for your testing and approval (sample lead time: 3-7 working days).
- Mass Production: After sample approval, we proceed with mass production (lead time: 7-15 working days, or depends on quantity).
- Quality Inspection & Shipment: 100% full inspection before shipment, and arrange delivery via DHL, FedEx, sea freight, or your forwarder.
- After-sales Support: Lifetime technical support and 1-year warranty for all products.
