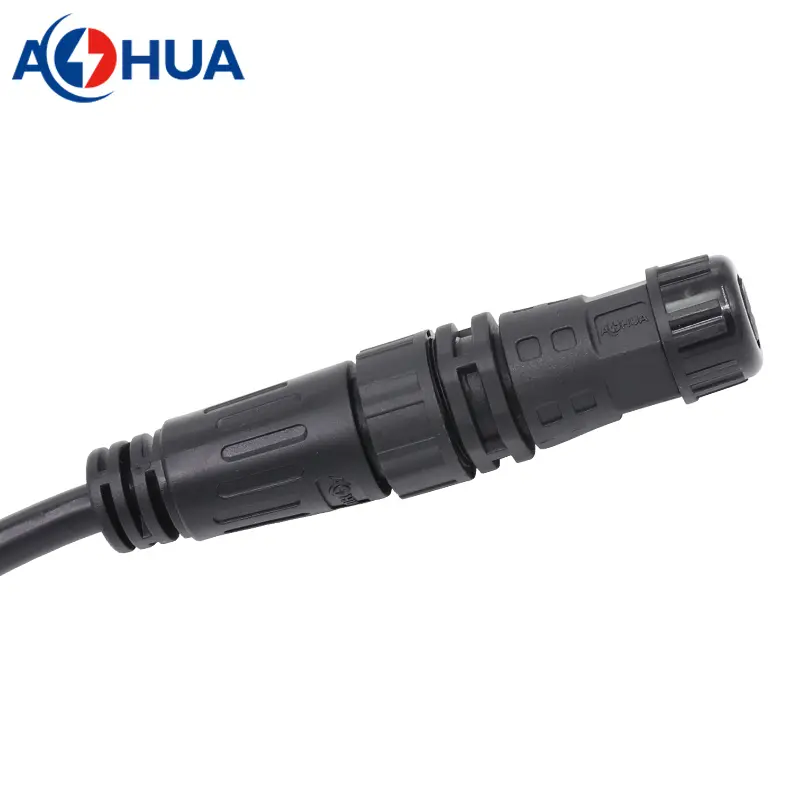

AOHUA M20 3 pin 1.0 1.5mm wire male female waterproof cable power cord connectors for led lamps
AOHUA M20 3 pin 1.0 1.5mm wire male female waterproof cable power cord connectors for led lamps
Male: AH-M20-1503MMN01112
Female: AH-M20-1503FFZ01112
Contact: 3 pin
Material: Nylon
Cable: PVC /Rubber
Wire Gauge: 1.0mm /1.5mm
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
AOHUA M20 3 pin 1.0 1.5mm wire male female waterproof cable power cord connectors for led lamps

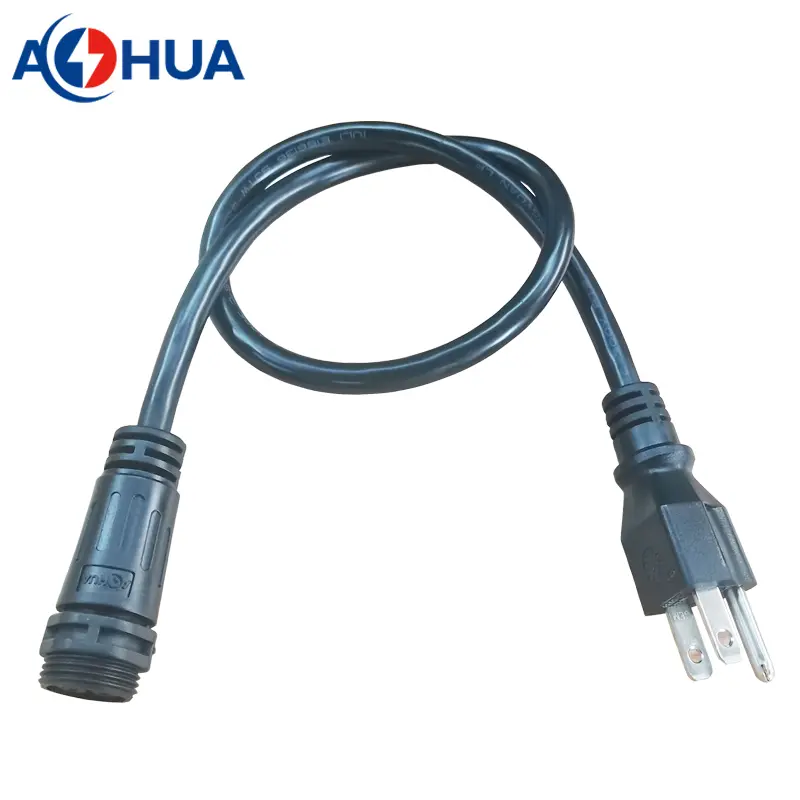

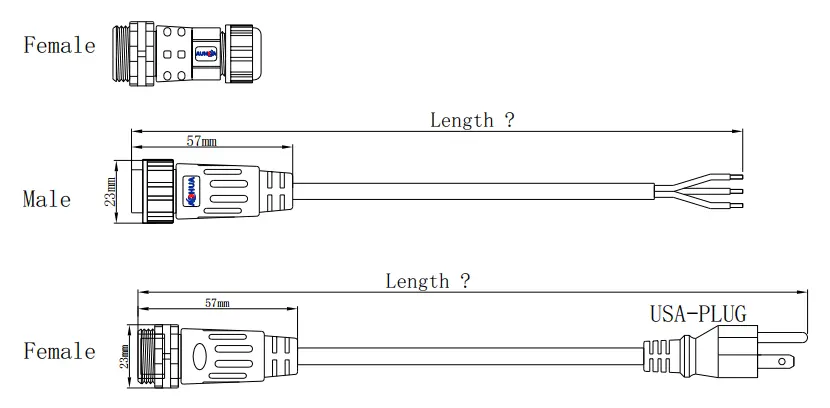

Power cord connectors are the power cord molded with waterproof connectors, which are female connector usually. While the male connectors to be matched to the female will be installed on the input wire of driver power in usual. In actual application, the power cord connectors are the extension cables, which are suitable for long distance of the power supply, such as 5meter, 10meter even 20meter or more longer. Surely, This solution of power cord connectors are used to the led lamps in garden or plant grow lights indoor.

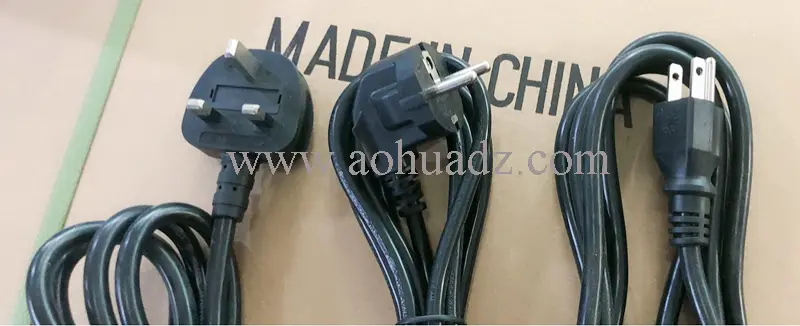

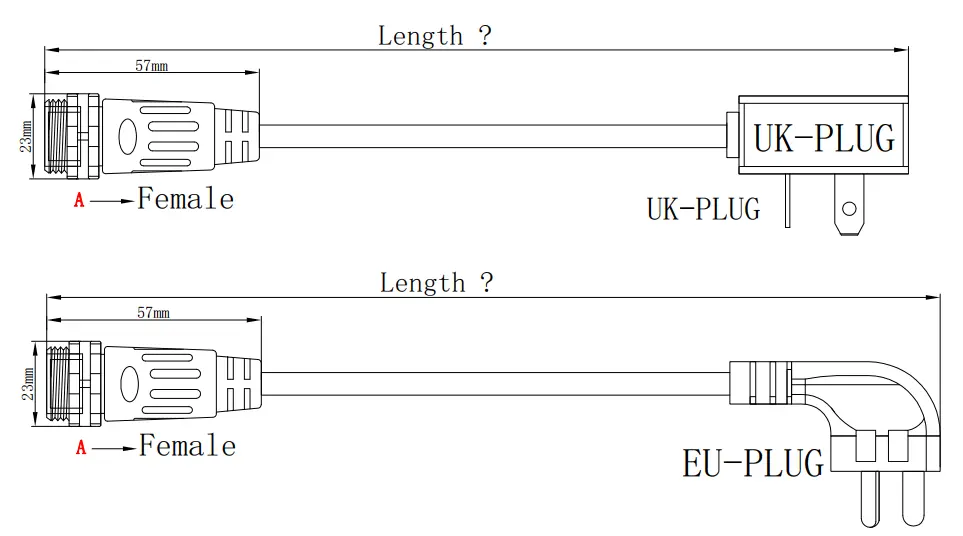

The power cords we made in usual are USA plug, EU plug, even UL plug and AU plug.
And that the waterproof connectors designed for power cords are AOHUA M20 male female waterproof connectors, which can carry current rating less than 15A/300V. As usual, the common wire gauge as below:
| US standard | 14AWG | 16AWG | 18AWG |
| EU standard | 1.5mm² | 1.0mm² | 0.75mm² |

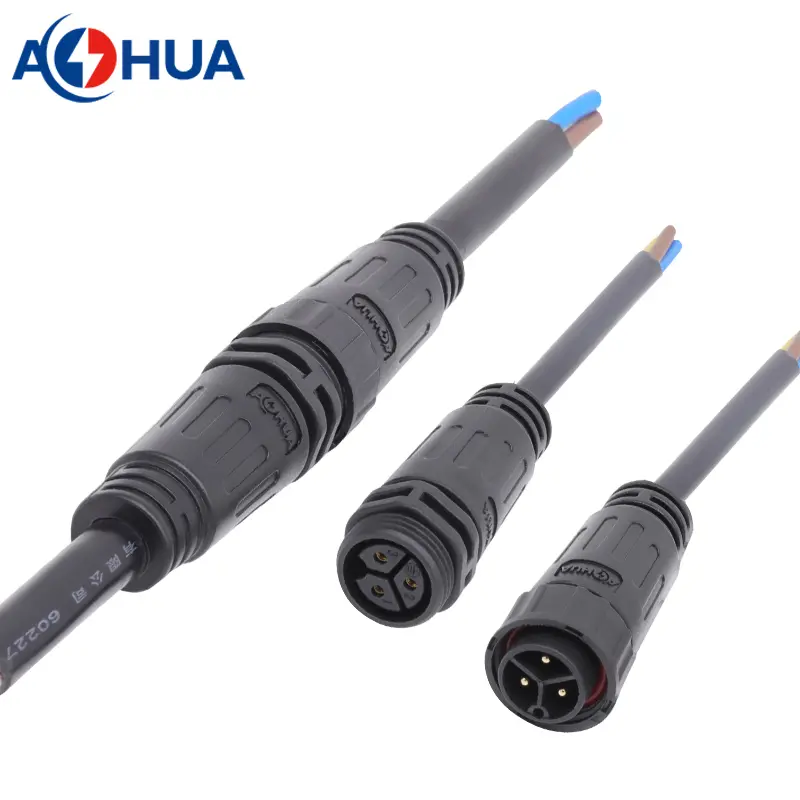

About M20 waterproof male female connectors:
| Male | Female | |
| Over mold connector | AH-M20-1503MMN01112 | AH-M20-1503FFN01112 |
| Assembly connector | AH-M20-1503MMZ01112 | AH-M20-1503FFZ01112 |
| Contacts | 3pin |
| Voltage Rating | 300V |
| Current Rating | 15A |
| Wire Gauge | 2.5mm² |
| Cable OD | 6.0-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 / IP68 |
