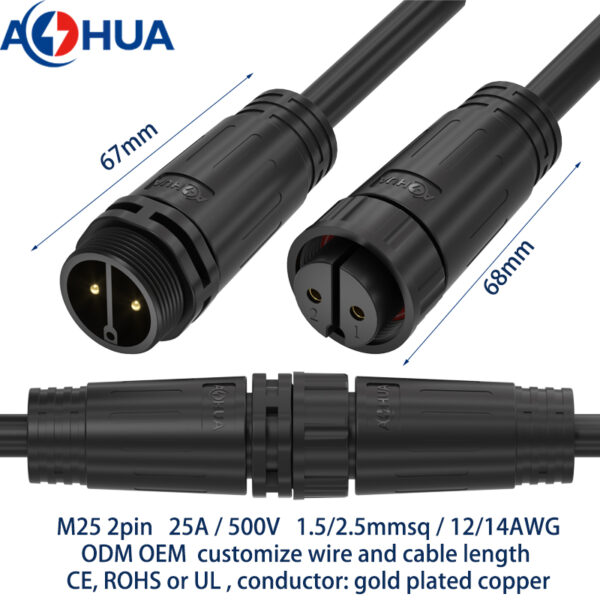

AOHUA M25 2Pin 25A 500V IP68 Waterproof Connector | Gold Plated Copper Conductor | Cable Length Customizable

AOHUA M25 2-pin waterproof connector is a heavy-duty power connection solution designed for outdoor and industrial applications. With a rated current of 25A and voltage of 500V, it delivers stable and high-performance power transmission, making it ideal for LED lighting, solar systems, industrial machinery, and outdoor electrical equipment. Its cable can be rubber, PVC or specified. The UL certified cable is SJOW rubber cable 12AWG or 14AWG.

✅ Superior Waterproof Protection: IP68 rating ensures complete dustproof and waterproof performance, suitable for long-term immersion in water and harsh outdoor environments (rain, snow, humidity). (The third party testing standard: 1meter water, 24hours waterproof.)

✅ High Current & Voltage: 25A / 500V rated capacity supports high-power equipment connection, meeting industrial power transmission demands.

✅ Premium Materials: Gold-plated copper conductor ensures excellent conductivity and corrosion resistance; PA66 plastic housing for high toughness and heat resistance; rubber for outdoor use.

✅ Flexible Cable Configuration: Compatible with 1.5/2.5mm² (12/14AWG) cables, customizable wire length to meet diverse project needs; design cable solution.

✅ Easy Installation: over molding cable with connector, you just need to solder or screw the wire end to your machines or products.

✅ Global Certifications: CE, ROHS, UL certified, compliant with international electrical safety standards.  (CE & ROHS version and UL versions).

• M25
• 2pin
• 25A
• 500V
• Conductor: gold plated copper
• Plastic: Nylon
• Cable: Rubber or PVC or specified
• Wire: 1.5-2.5mm² / 14AWG-12AWG;
• Cable OD: 8-12mm
• Mechanical Life: 3000 mating cycles
• Operating Temp: -40℃~+105℃
• Waterproof Grade: IP68

Wide Applications

Perfect for LED street lights, outdoor LED displays, solar panel systems, garden lighting, industrial automation equipment, marine electrical systems, and outdoor power distribution projects.

Customization Service

We support ODM/OEM customization, including cable length adjustment, color options, and special process requirements. Contact our sales team for personalized solutions!

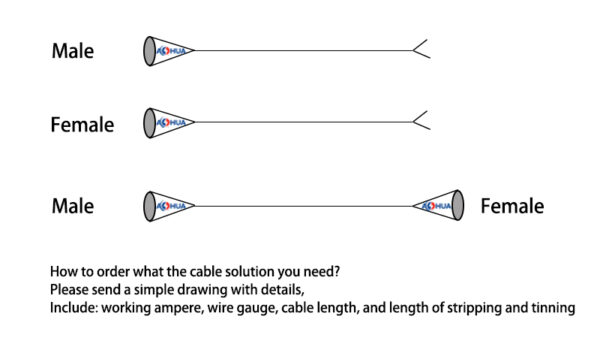

How to design & buy?

Create a simple sketch about what you need, and mark with wire size and cable length.
