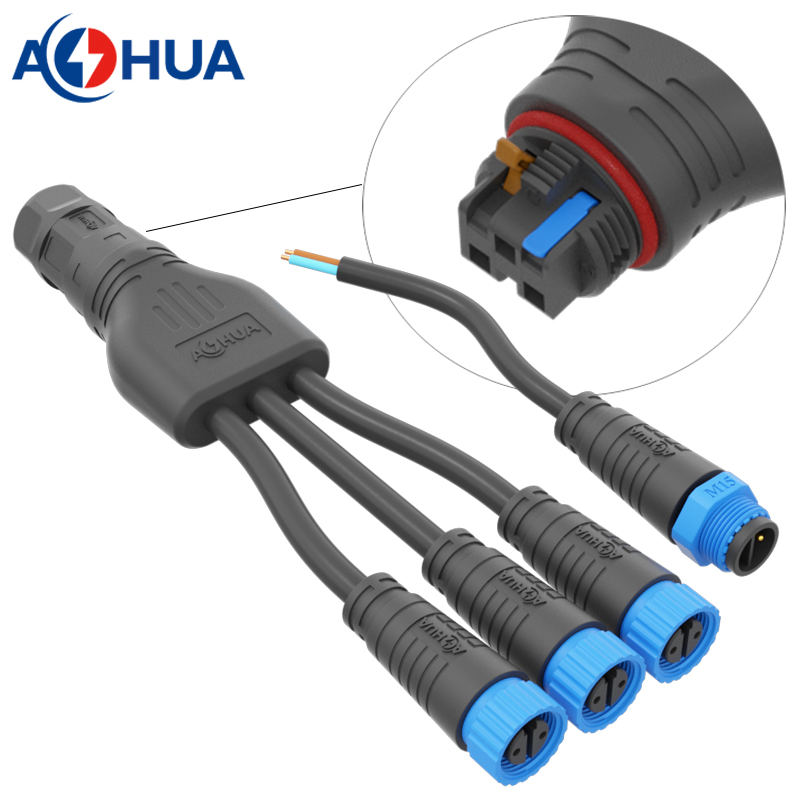

AOHUA YM20 Push Wire Locking OEM ODM Power Distributor 1 To 3 Waterproof Wire Cable Harness Splitter Connector 2pin

This is customized type splitter connector solution, which can be customized in different wire gauge, cable length even LOGO, connection, and packing, and so on.

Characteristic

1. push-wire input sockets for wiring operation: on the input socket of splitter, it is a push-wire type handles for wiring that is very easy to insert the wire in and locking, no need any tools for operation.
2. the branch cables is molded on the splitter, it can be customized in different number branch cables;
3. the branch cables can be customized with connector or without connector(open wire end);
4. the connection of splitter is Parallel or Series.

Material & Specification

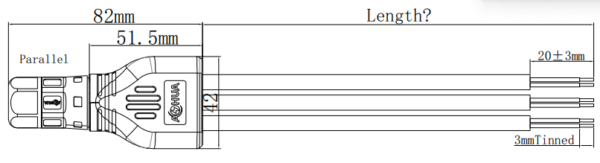

1. Model: 1 to 3 cables splitter
2. Connector Type: input-push wiring, output molding
3. Connection Type: Parallel, Series;
4. Contacts: 2pin
5. Plastic Material: PA66
6. Conductor: copper
7. Cable Material: PVC or rubber or specified
8. Rated Voltage: 250V
9. Rated Current: 15A
10. Wire Gauge: ≤1.5mm²

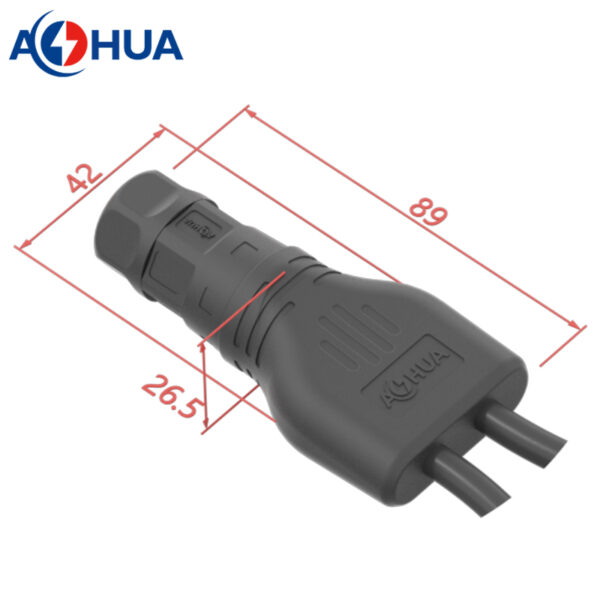

11. Cable OD: 5-10mm
12. Operating Temperature: -40℃~+105℃
13. Waterproof Grade: IP68

How to customize own cable splitter connector solution?

This is customized connector solution, it can customize what you want. It will be most important that you can tell us with your idea.

• create a simple drawing or 3D files for us easy to understand what you want;
• specify the input and output cable about: working ampere, wire gauge, cable length or cable OD;
• point out the details for customization, such as LOGO, printing, packing or special cable;
• it need to provide the wiring diagram if you want to customize the connection type apart from Parallel or Series;
