Control System Signal Connection Transmission Waterproof Plug Socket Connector M16 3pin Front Female Panel Solder

This M16 3-pin Front Female Panel Mount Socket is an essential component for establishing robust and reliable signal connections in demanding industrial control systems. Designed with a secure screw-locking mechanism and an integrated sealing gland, it achieves a high degree of ingress protection, typically rated IP67. This ensures a completely waterproof and dust-tight seal, safeguarding critical data and control signals from moisture, oil, and particulate contamination in harsh environments like factory floors, process automation, and outdoor applications.

The connector features a front-mounting design, allowing for easy installation and removal from the outside of an enclosure or panel without needing internal access. The female socket is engineered for panel mounting, providing a fixed connection point for incoming cables. Internally, the 3-pin configuration utilizes a solder cup termination method, offering a strong, permanent, and vibration-resistant electrical connection for the wires. This design is ideal for transmitting low-voltage signals for sensors, actuators, and other control devices where signal integrity is paramount.

Built from high-quality, corrosion-resistant materials, this connector guarantees long-term performance and electrical reliability, making it a trusted solution for maintaining uninterrupted communication within complex automated systems.

Highlights

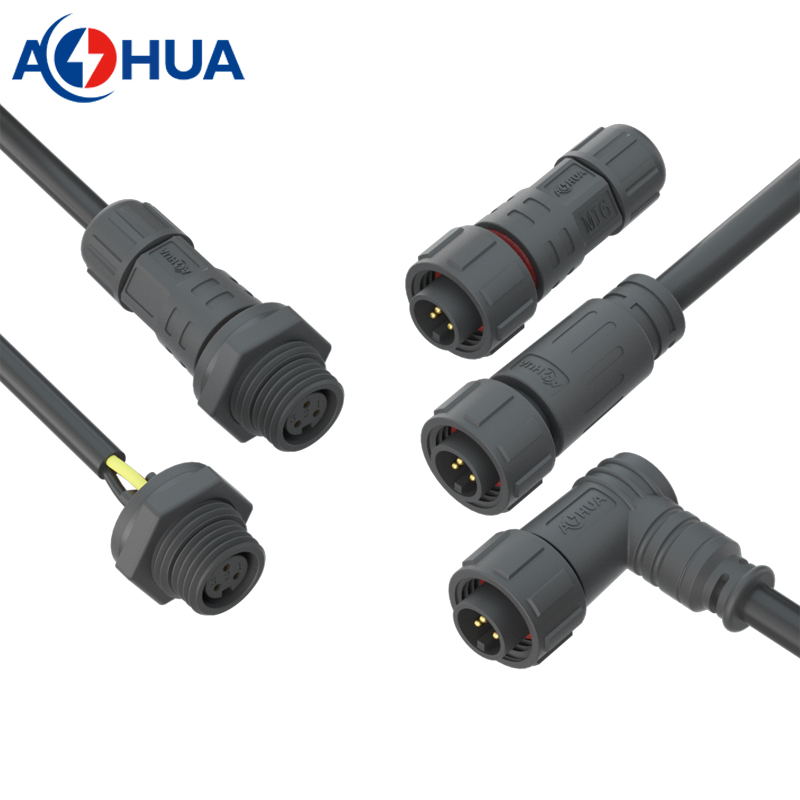

1. the connector can be assembly or over molding type;
2. male: inline assembly, inline molding, elbow type;
3. female: front panel mount, plug or assembly type.
4. Plastic: PA66 nylon
5. Conductor: gold plated copper

assembly type	wiring operation	molding panel connector

Specifications

1. Model: M16
2. Contacts: 3pin
3. Voltage Rated: 300V
4. Current Rated: 10A
5. Wire Size: 24AWG~16AWG  or 0.2mm² ~1.0mm²
6. Cable OD: 3-7.5mm
7. Mechanical Life: 3000 mating cycles
8. Operating Temperature: -40℃~+105℃
9. Waterproof Grade: IP67 / IP68
10. Certificate: UL, CE, ROHS

How to order?

1. confirm the connector type, such as assembly type or over molding type, panel type or inline type;
2. specify the working ampere, wire size, cable OD or cable length;
3. details to customize, such as stripped or tinned length;
4. keep open wire end or processing with terminals?
