Control System Signal Data Wiring Panel Mount Welding Male Female 6pin Waterproof Electrical Connector
Control System Signal Data Wiring Panel Mount Welding Male Female 6pin Waterproof Electrical Connector
- 6 pin waterproof electrical connector
- Model: M12
- Contacts: 6 pin
- Voltage Rated: 110 V
- Current Rated: 5 A
- Connector Type: front panel mount male to female
- Docking Type: threads
- Connection Type: soldering
- Wire Gauge: 22 AWG or 24 AWG
- Cable OD: 3-7.5 mm
- Certificate: CE/RoHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, PayPal
Share to:
Control System Signal Data Wiring Panel Mount Welding Male Female 6pin Waterproof Electrical Connector

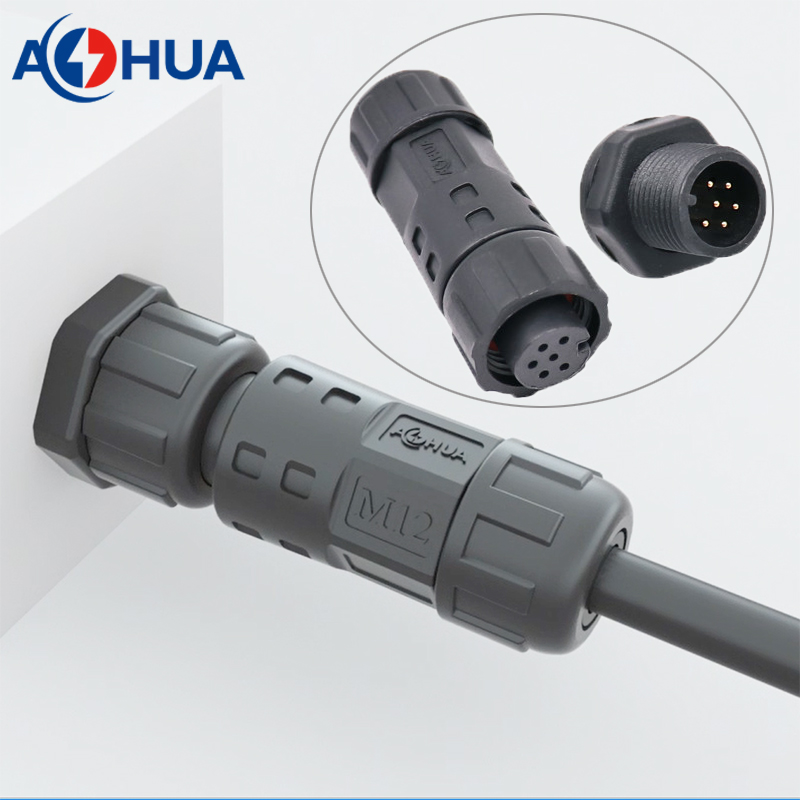

This 6-pin waterproof electrical connector is a robust and reliable solution designed for demanding control system and signal data applications. Engineered to ensure uninterrupted transmission of power and sensitive data signals, it is ideally suited for industrial automation, process control, and outdoor instrumentation where environmental resilience is critical.
The connector system comprises male and female counterparts, featuring a secure screw-locking mechanism that guarantees a stable, vibration-resistant connection. Its key feature is a superior IP-rated waterproof and dustproof seal, typically achieved through integrated O-rings and a sealed interface, protecting the internal pins and wiring from moisture, humidity, and contaminants.
Constructed for durability, the housing is often made from high-grade polyamide or metal, capable of withstanding harsh conditions. The 6-pin configuration provides versatile connectivity for multiple signal lines, power, and ground within a single compact unit. Designed for permanent wiring, it features a panel-mount female socket for secure installation on control cabinets or equipment enclosures, while the cable-mount male plug is often supplied with a crimp or solder termination style, with “welding” commonly referring to solder cup contacts for a strong, permanent wire bond.
This connector is an essential component for creating secure, organized, and protected electrical interfaces in any critical data and control infrastructure.
Highlights
- Plastic Material: PA66
- Conductor Material: gold plated copper
- Connector Type: panel mount
- Connection Type: welding type
- Docking Type: male to female, threads
- Model: M12
- Contacts: 6pin
- Voltage Rated: 110V
- Current Rated: 5A
- Wire Size: 22AWG or 24AWG
- Cable OD: 3-7.5mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP67/ IP68
- Certificate: CE & RoHS
 |
 |
 |
How to order?
- confirm the connector type, such as panel type or inline type; also check the connector diameter whether is OK for your limited space.
- specify the required working ampere, wire gauge, cable length or cable OD.
- if require processing with cable wire, please send a sketch with details.
