Customized 15A Angle 90 Degree Male Female Molding Waterproof Elbow Connector 3pin
Customized 15A Angle 90 Degree Male Female Molding Waterproof Elbow Connector 3pin
- Model: M20
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Connector Type: elbow type
- Plastic Material: nylon
- Cable Material: PVC or rubber
- Conductor Material: gold plated brass
- Cable Length: customized as requirement
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Customized 15A Angle 90 Degree Male Female Molding Waterproof Elbow Connector 3pin
- This is over molding male or female waterproof connector in angle type.
- Nylon plastic: ensure the high strength housing and no bloom.
- Gold plated brass ensure good electrical properties.
- This connector carrys up to 15A power.
- Angle type connector will be suitable to the cable solution pass through corner or box.
- This connector is usually mating with panel type female or male plug.
| Model | M20 |
| Contacts | 3pin |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | 1.5mm²/1.0mm²/0.75mm² |
| Cable OD | 5-10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67/IP68 |

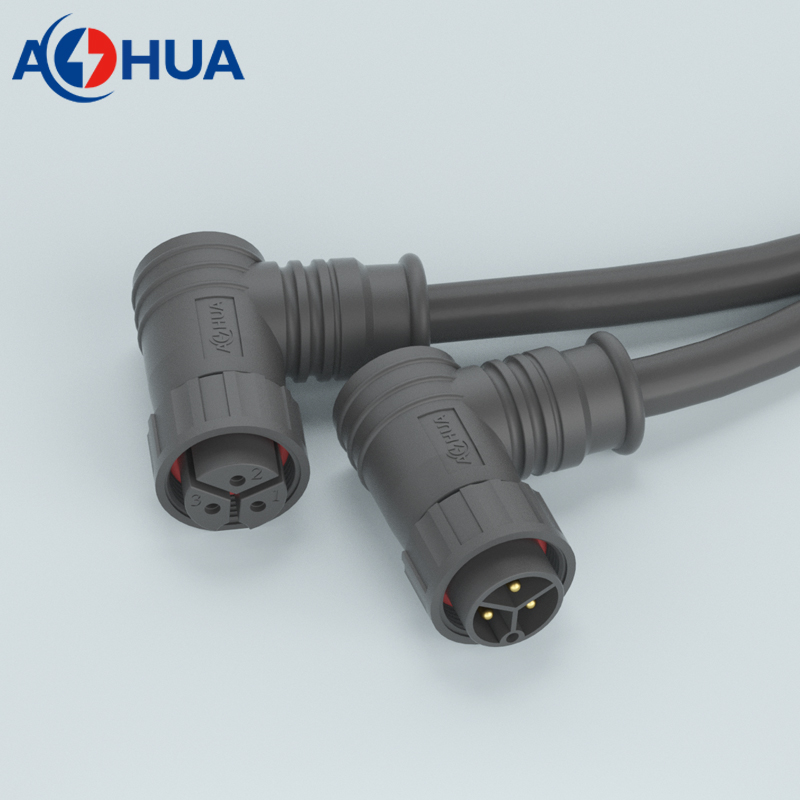

Please kindly note that this male connector is not mating with this female connector in the picture. In the picture, the male and female are all carrying with screw nut. So please specify your detail connector types to our sales, our team will get back to you with actual solution.
Male elbow: AH-M20-1503MML01113
Female elbow: AH-M20-1503MFL01113

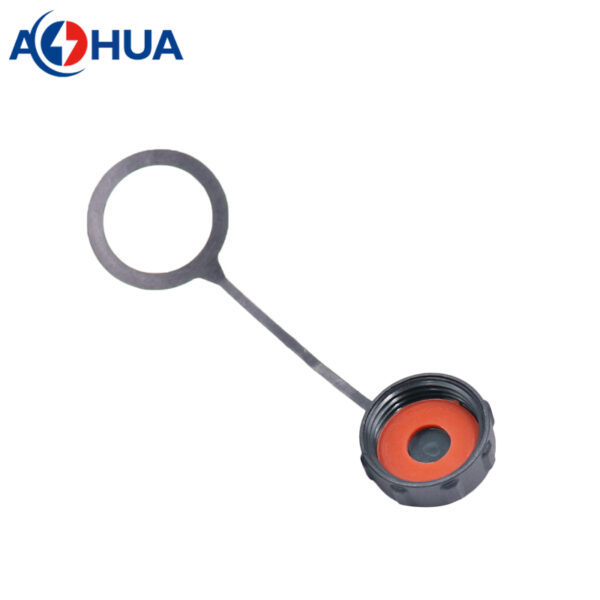

There is dust cap for this connector when unplug.
